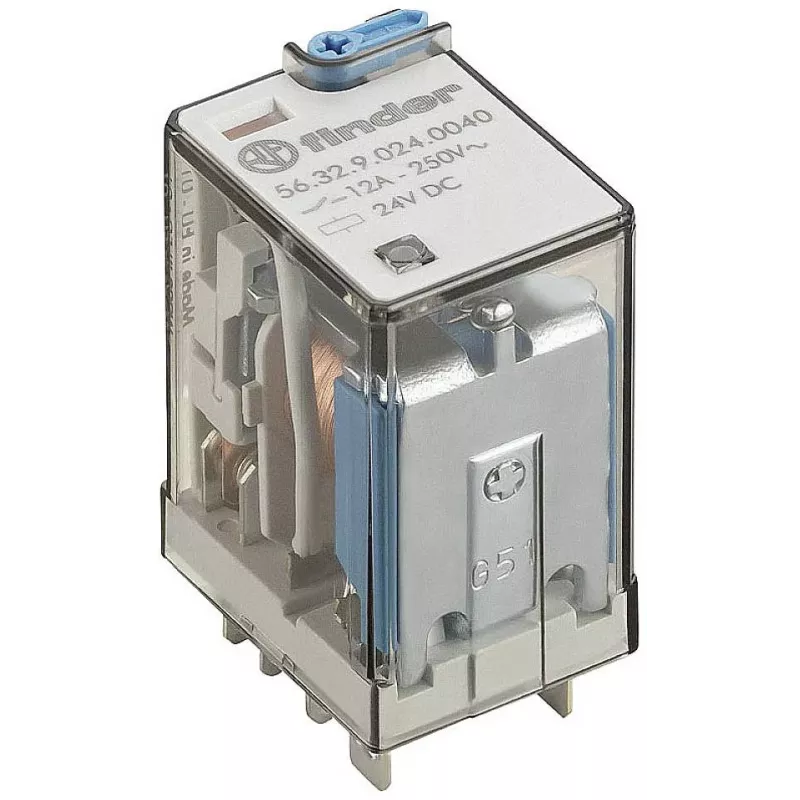

Relé enchufable Finder 56.32.9.024.0000 24 V DC 12 A 2 conmutadores

In industrial control panels and automation systems, reliable switching of moderate power loads is essential. The Finder 56.32.9.024.0000 plug-in relay provides a robust solution with its 2 changeover contacts rated at 12 A, suitable for a wide range of applications.

Who is it for

This relay is intended for electrical engineers, panel builders, and maintenance technicians who need a dependable plug-in relay for control circuits, automation, and general switching tasks. Its 24 V DC coil makes it compatible with standard industrial control voltages.

Main features

• 2 changeover contacts (DPDT) with 12 A rated current
• 24 V DC coil voltage, 1.2 W coil power
• Plug-in mounting for easy installation and replacement
• Flux proof (RT I) construction for protection against dust and flux
• Wide operating temperature range: -40 to +70 °C
• Silver nickel (AgNi) contacts for long electrical life

Specifications

• Product type: Plug-in Relay
• Series: 56 Series
• Coil voltage: 24 V DC
• Contact configuration: 2 CO (DPDT)
• Rated current (contacts): 12 A
• Rated voltage (contacts): 250 V AC
• Contact material: AgNi
• Coil power: 1.2 W
• Dielectric strength (coil-contacts): 2500 V AC
• Dielectric strength (open contacts): 1000 V AC
• Operating temperature: -40 to +70 °C
• Mounting type: Plug-in
• Protection degree: RT I (Flux proof)
• Electrical life (at rated load): 100 x 10^3 cycles
• Mechanical life: 10 x 10^6 cycles
• Terminal type: Plug-in (Faston 250)

Tips

Ensure the relay is used within its specified ratings and operating temperature range. For socket compatibility, use Finder 56 series sockets. Always disconnect power before installation or maintenance.
