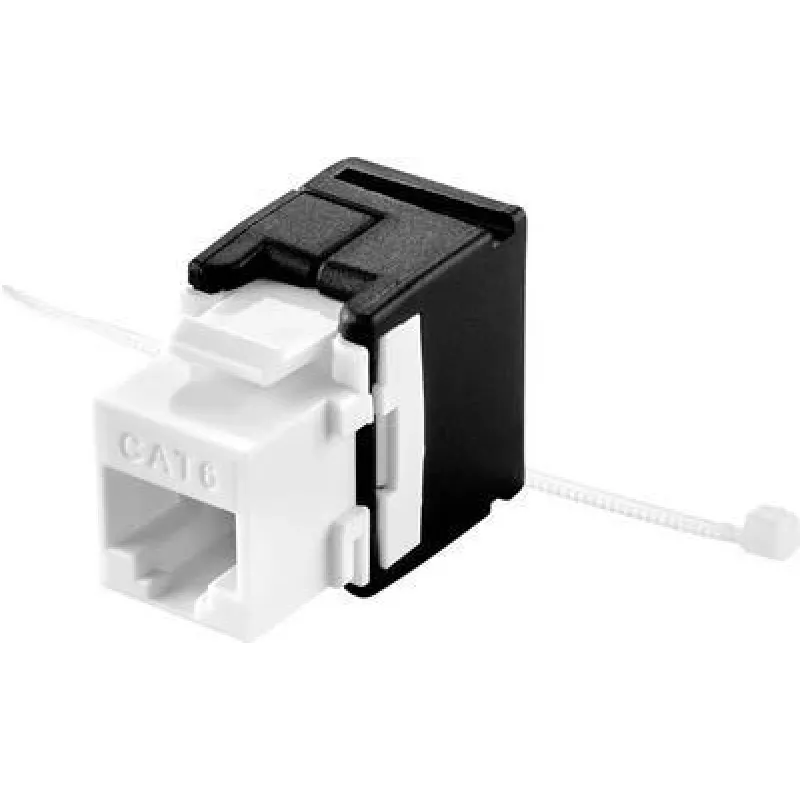

Renkforce RJ45 Keystone Módulo Cat 6 apantallado sin herramientas Zamak RF-4538242

Network technicians and installers often face tight spaces and high-performance demands when terminating Ethernet connections in patch panels, wall outlets, or surface mount boxes. The Renkforce RF-4538242 RJ45 Keystone Module Cat 6 answers that challenge with a shielded, tool-free design that snaps into any standard keystone port. Its zinc die-cast housing and gold-plated contacts ensure reliable, long-lasting connections for 10 Gigabit Ethernet up to 250 MHz bandwidth.

Key specifications

• Product type: RJ45 Keystone Module
• Network category: Cat 6
• Shielding: Shielded (FTP/STP)
• Connector type front: RJ45 female
• Connector type rear: LSA (IDC) terminals
• Assembly method: Tool-free installation
• Wiring standard: TIA/EIA 568A/B (colour-coded)
• Housing material: Zinc die-cast
• Contact plating: Gold-plated
• Data transfer rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: Up to 250 MHz
• Compatibility: Standard keystone port (19.2 x 14.9 mm)
• Number of ports: 1
• Cable compatibility: Solid and stranded wires (AWG 22-26)
• Colour: Metallic / Silver

Why choose it

This module eliminates the need for punch-down tools, speeding up installation while reducing errors. The shielded metal body protects against electromagnetic interference, making it suitable for environments with high signal noise. Its Cat 6 rating supports high-speed data transfer, future-proofing your network infrastructure.

Ideal use cases

• Structured cabling in office buildings and data centres
• Retrofit installations in existing wall plates or patch panels
• High-density network setups where space is limited
• Applications requiring reliable 10GbE connectivity

Good to know

The module accepts both solid and stranded conductors from AWG 22 to 26, providing flexibility for various cable types. Its standard keystone footprint ensures compatibility with a wide range of faceplates, surface boxes, and patch panels. The colour-coded LSA terminals simplify wiring according to T568A or T568B standards.
