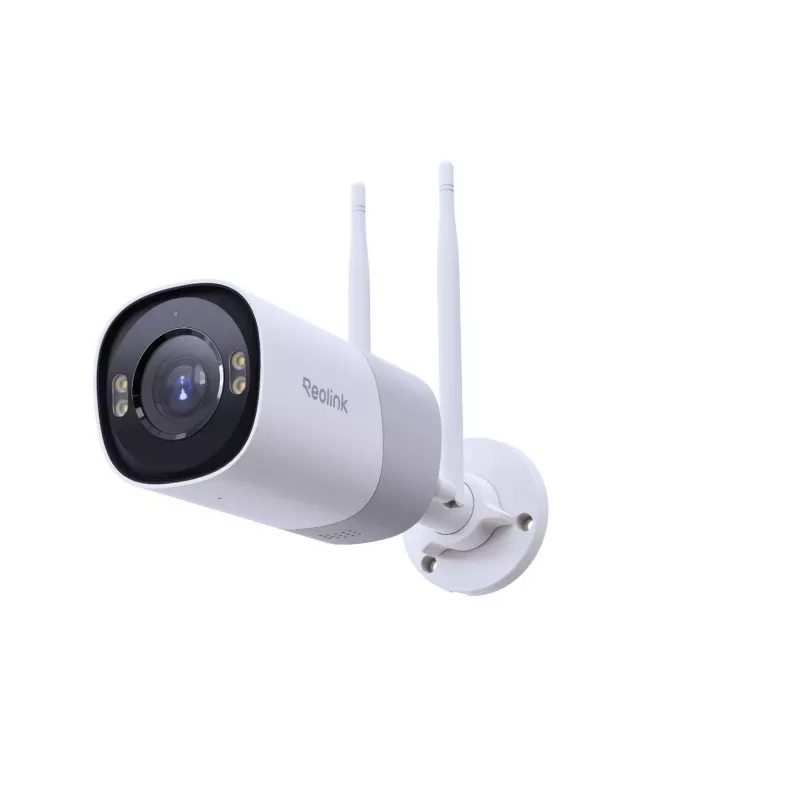

Reolink RP-WCB8MZ Cámara de seguridad domo Cámara de seguridad IP Interior y exterior 3840 x 2160 píxeles Pared

The Reolink RP-WCB8MZ is a dome IP security camera engineered for both indoor and outdoor applications. It delivers 4K 8MP Ultra HD resolution (3840 x 2160) using a 1/2.8" CMOS sensor and a 2.7 mm fixed focal length with 5x optical zoom and autofocus. The camera supports wired Ethernet and dual-band Wi‑Fi 6 (2.4/5 GHz) connectivity, and its IP67 weatherproof rating and wall-mount form factor make it suitable for durable, continuous surveillance in a variety of locations.

Advantages

The RP-WCB8MZ combines high-resolution imaging with a wide diagonal field of view (133°) and a 5x optical zoom to capture detailed video at distance. Wi‑Fi 6 improves throughput, range and stability for wireless deployments while dual-band operation allows optimized use of 5 GHz for high-speed transmission and 2.4 GHz for better wall penetration. Built-in alarm input/output wiring enables direct integration with sensors, door contacts, sirens or strobe lights. Multiple storage options are supported including microSD, NVR and encrypted FTP backups, and the camera is rated IP67 for reliable outdoor performance.

Suitable for

• Residential perimeter and entrance monitoring
• Retail stores and point-of-sale surveillance
• Office common areas and building façades
• Warehouse aisles and loading docks
• Small business exterior and parking areas

Key specifications

• Image sensor: CMOS, 1/2.8" optical sensor size
• Resolution: 3840 x 2160 pixels (4K, 8MP)
• Lens: 2.7 mm fixed focal length with 5x optical zoom and autofocus
• Field of view: horizontal 108.6°, vertical 56.2°, diagonal 133°
• Frame rate: up to 25 fps
• Connectivity: Wired Ethernet and Dual‑band Wi‑Fi 6 (2.4/5 GHz)
• Night vision: infrared up to 30 m
• Weather resistance: IP67 rating for outdoor use
• Mounting: wall mount, dome form factor
• Power and integration: alarm in/out support for external sensors and alarm devices
• Colour and weight: white housing, approximately 0.776 kg

How to use

Select a wall location that provides the required coverage and install the camera using appropriate anchors and sealants for outdoor mounting. Connect power and choose wired Ethernet or configure the dual‑band Wi‑Fi 6 connection through the Reolink app or web interface. Adjust optical zoom and autofocus to frame the scene, set desired recording resolution (4K available) and configure motion and perimeter detection rules. If required, insert a microSD card or connect to an NVR or FTP server for local or remote storage, and wire alarm input/output cables to compatible sensors or alarm devices for integrated automation.

Recommendations

For reliable wireless performance, use 5 GHz for high-bandwidth streams where line-of-sight is available and 2.4 GHz where walls or long distances reduce signal strength. Regularly check and update firmware, test alarm linkages after installation, and schedule periodic cleaning of the dome cover to maintain image quality.
