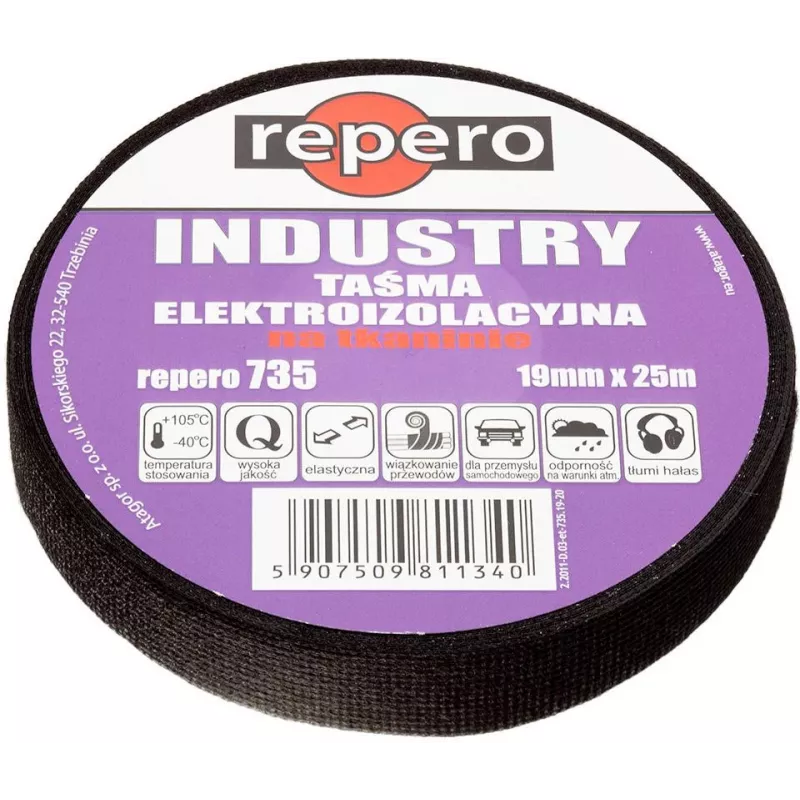

REPERO 735 Cinta aislante eléctrica de PVC industrial 19mm x 25m Negro

The REPERO 735 Industry PVC Electrical Insulation Tape is a high-performance tape designed for professional electrical insulation, cable bundling, and wire harnessing. With a width of 19 mm and a length of 25 m, this black tape offers excellent dielectric strength, flame retardancy, and UV resistance, making it suitable for both indoor and outdoor applications.

Advantages

This tape provides reliable electrical insulation with a dielectric strength greater than 40 kV/mm and a breakdown voltage exceeding 6 kV. Its rubber-based adhesive ensures strong adhesion to steel (2.5 N/10mm) and backing (2.0 N/10mm), while the PVC material offers flexibility and durability. The tape is flame retardant and UV resistant, ensuring long-lasting performance in demanding environments.

Suitable for

• Electrical insulation of wires and cables
• Cable bundling and harnessing
• General purpose electrical repairs
• Indoor and outdoor applications

Key specifications

• Type: PVC Electrical Insulation Tape
• Series: Industry 735
• Width: 19 mm
• Length: 25 m
• Thickness: 0.15 mm
• Colour: Black
• Adhesive: Rubber-based
• Dielectric Strength: >40 kV/mm
• Breakdown Voltage: >6 kV
• Temperature Rating: -10°C to +90°C
• Adhesion to Steel: 2.5 N/10mm
• Adhesion to Backing: 2.0 N/10mm
• Tensile Strength: 25 N/10mm
• Elongation at Break: 180%
• Flame Retardant: Yes
• UV Resistant: Yes
• Standards: IEC 60454-3-1 Type 5, RoHS Compliant

Recommendations

For optimal performance, ensure the surface is clean and dry before application. Suitable for use in electrical installations, automotive wiring, and industrial maintenance.
