Repetidor HDMI DeLOCK 8K 60 Hz 20 m 11506

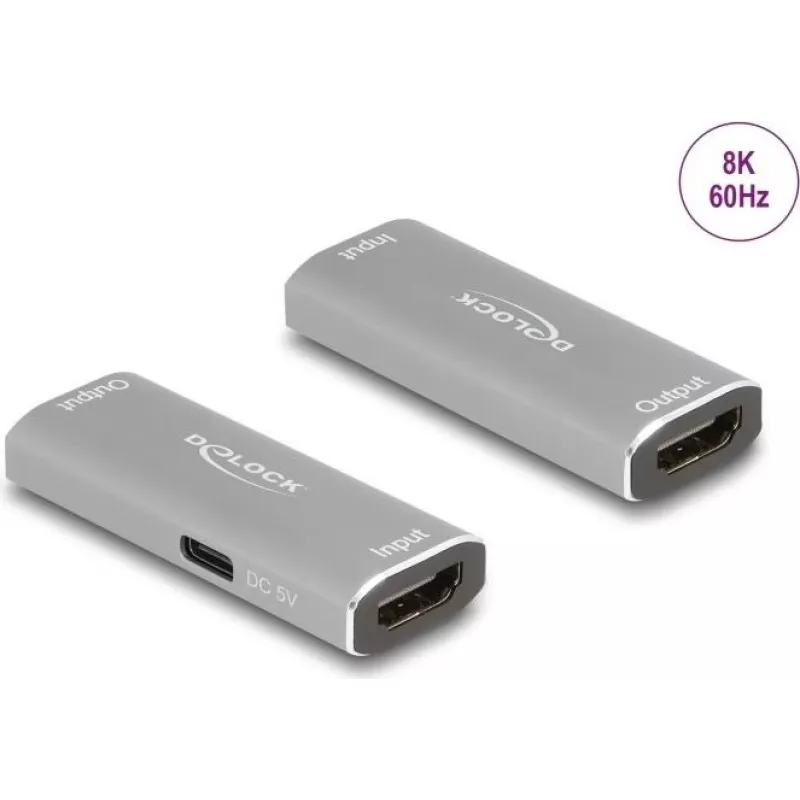

This Delock HDMI repeater extends and regenerates HDMI signals to allow reliable connections up to 20 m. It accepts an input HDMI cable up to 15 m long and provides an output port for an HDMI cable up to 5 m long, enabling connection between a PC or laptop and a display or TV. The device supports up to 8K Ultra HD at 60 Hz and is backward compatible with lower resolutions including Full HD 1080p. The repeater has a compact grey housing measuring 25 mm × 58 mm × 11 mm.

Advantages

The repeater restores the HDMI signal to reduce loss over longer cable runs and supports high resolutions up to 8K @ 60 Hz. Its compact form factor makes installation simple in tight spaces, and backward compatibility ensures it works with a range of displays and sources. The unit is suitable for extending cable lengths within the specified input and output limits without requiring active power from additional adapters.

Suitable for

• Extending HDMI connections between a PC or laptop and a monitor or TV
• Applications requiring up to 8K @ 60 Hz video transmission
• Setups where cable length must be split into a longer input run (≤15 m) and a shorter output run (≤5 m)

Key specifications

• Brand: DELOCK
• Model / MPN: 11506
• EAN: 4043619115068
• Maximum supported resolution: 8K Ultra HD (7680 × 4320) @ 60 Hz
• Backward compatibility: Full HD 1080p and lower
• Maximum total extension: up to 20 m (input ≤15 m, output ≤5 m)
• Product colour: Grey
• Dimensions: 25 mm (W) × 58 mm (D) × 11 mm (H)

How to use

Connect an HDMI cable from your PC or laptop to the repeater input port (use a cable no longer than 15 m). Connect a second HDMI cable from the repeater output port to your display or TV (use a cable no longer than 5 m). Ensure connectors are fully seated. Power is supplied via the HDMI connection; no separate power adapter is required. Verify the source and display settings to enable the desired resolution and refresh rate.

Recommendations

To maintain signal quality, use high-quality HDMI cables rated for the desired resolution and length, keep cable runs away from strong electromagnetic interference sources, and verify cable length limits: input up to 15 m and output up to 5 m, for a combined maximum extension of 20 m.
