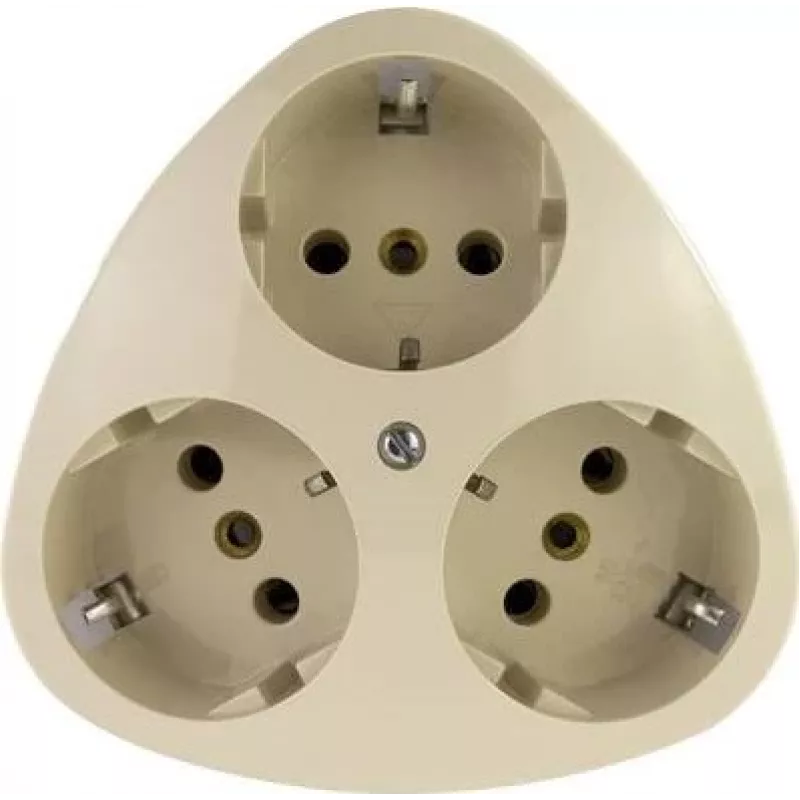

REV 0510080777 Base de enchufe de superficie con 3 tomas IP20 Blanco (Schuko, 16 A, 250 V, protección infantil)

For installations where flush-mounted sockets are not an option, the REV 0510080777 provides a robust and convenient solution. This surface-mounted triple socket outlet combines three Schuko sockets in a single compact housing, making it ideal for workshops, garages, basements, or any indoor area where additional power points are needed without chasing walls. Its IP20 rating ensures safe operation in dry indoor environments, while the integrated child protection adds an extra layer of safety for households with young children.

Highlights

• Three Schuko sockets (Type F, CEE 7/3) for connecting multiple devices simultaneously
• Surface-mounted design for easy installation on walls or panels without recessing
• Rated at 16 A / 250 V AC, supporting a maximum load of 3680 W
• Integrated child protection shutters prevent accidental contact with live parts
• Durable white thermoplastic housing with screw terminals for secure wiring
• CE and VDE certified for compliance with European safety standards

In daily use

This outlet is a practical choice for areas where you need reliable power access but cannot or do not want to install flush-mounted sockets. The three Schuko sockets allow you to power tools, chargers, or appliances simultaneously, while the robust thermoplastic housing withstands everyday knocks. The screw terminals ensure a firm connection for solid or stranded conductors, and the surface-mounted base can be fixed to any flat surface with screws (not included). The white finish blends unobtrusively with most wall colours, and the IP20 rating means it is intended for dry indoor use only.

Full specifications

• Brand: REV
• Model: 0510080777
• MPN: 0510080777
• EAN: 4008297100805
• Socket type: Schuko (Type F, CEE 7/3)
• Number of sockets: 3
• Mounting type: Surface-mounted
• IP protection class: IP20
• Colour: White
• Material: Thermoplastic
• Rated voltage: 250 V AC
• Rated current: 16 A
• Max. power output: 3680 W
• Frequency: 50/60 Hz
• Connection type: Screw terminals
• Integrated child protection: Yes
• Application area: Indoor, dry rooms
• Certification: CE, VDE

Final note

With its triple Schuko sockets, child protection, and easy surface mounting, the REV 0510080777 is a dependable choice for expanding your power options in any dry indoor space.
