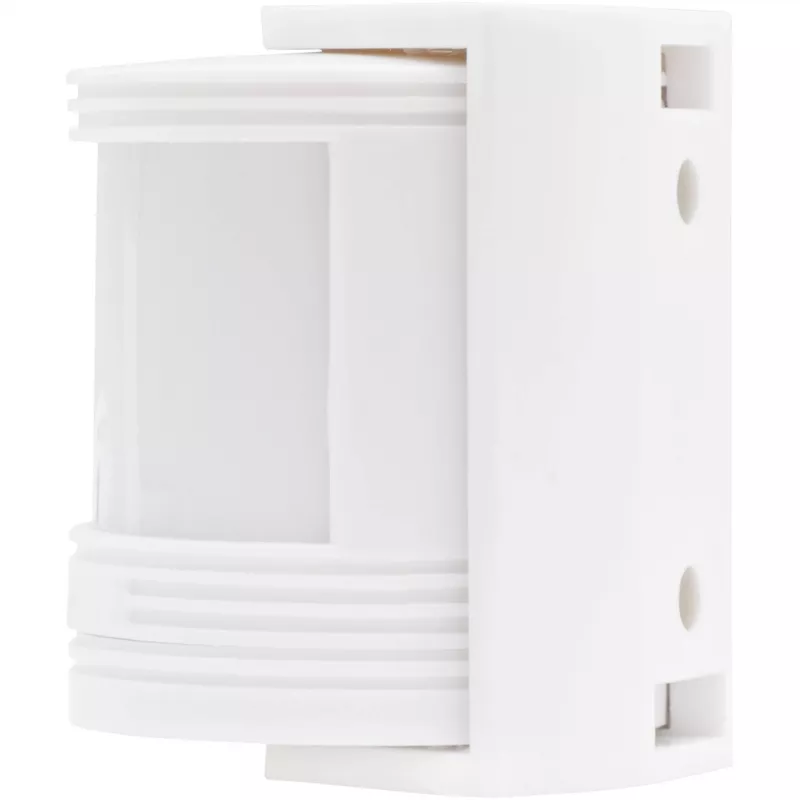

REV Orchestra Detector de Movimiento Inalámbrico Blanco Link2Home

The REV Orchestra Wireless Motion Detector in White is a smart, battery-powered PIR sensor designed for indoor use with the Link2Home smart home system. It reliably detects movement within a range of up to 8 meters and a 110° angle, triggering automations or alerts via the Link2Home gateway. Ideal for enhancing home security and energy efficiency, this detector features low battery warning and tamper protection for peace of mind.

Advantages

Easy wireless installation without wiring, long battery life of approximately one year, and seamless integration with the Link2Home ecosystem. The compact white design blends into any interior, while the 433 MHz wireless technology ensures a stable connection up to 30 meters in free field.

Suitable for

• Indoor motion detection in living rooms, hallways, basements, and offices
• Triggering smart lights, alarms, or notifications via Link2Home gateway
• Home security and automation projects

Key specifications

• Product Type: Wireless Motion Detector
• Smart Home System: Link2Home
• Sensor Technology: Passive Infrared (PIR)
• Wireless Frequency: 433 MHz
• Detection Angle: 110°
• Detection Range: Up to 8 meters
• Power Supply: 2x AAA 1.5V Batteries
• Battery Life: Approx. 1 year
• Installation Location: Indoor
• Mounting Type: Wall-mounted
• Recommended Mounting Height: 1.8 - 2.5 meters
• Color: White
• Operating Temperature: -10°C to +50°C
• Operating Humidity: 10% - 90% RH (non-condensing)
• Wireless Communication Range: Up to 30 meters (free field)
• Features: Low Battery Warning, Tamper Protection
• Compatibility: Requires Link2Home Gateway/Bridge
• IP Rating: IP20

Recommendations

For optimal performance, mount the detector at a height of 1.8 to 2.5 meters and avoid direct sunlight or heat sources. Use high-quality alkaline AAA batteries for maximum battery life. Pair with a Link2Home gateway to enable remote control and automation.
