RF Venue DFIN-IPX Antena direccional resistente a la intemperie

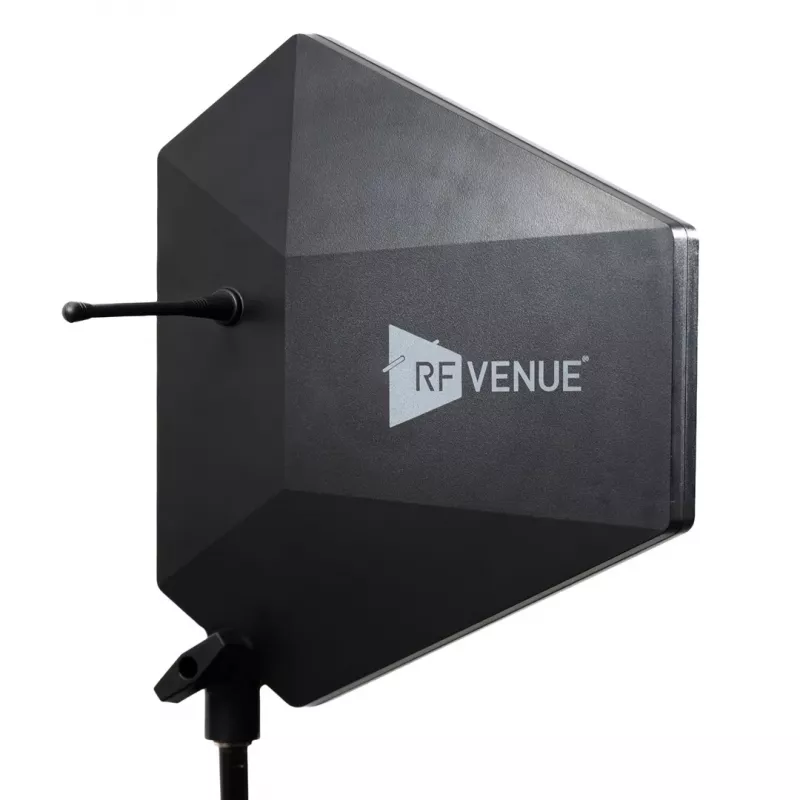

The RF Venue DFIN-IPX is a professional-grade, weather-resistant diversity antenna designed for demanding wireless microphone applications. Combining a log-periodic dipole array (LPDA) with an omnidirectional dipole, it delivers reliable reception in both directional and omnidirectional modes, ensuring robust signal coverage in outdoor and indoor environments. With an IP53 rating, it withstands dust and water spray, making it ideal for live events, broadcast, and installed systems.

Advantages

This antenna offers the flexibility of dual-mode operation: LPDA for focused, long-range reception and omnidirectional for broad coverage. Its passive design requires no external power, simplifying setup. The rugged ABS construction and standard 5/8"-27 thread mount ensure easy integration with existing microphone stands or mounting hardware.

Suitable for

• Professional wireless microphone systems (470-698 MHz)
• Outdoor events, festivals, and sports venues
• Broadcast and production environments
• Installed sound systems requiring weather-resistant antennas

Key specifications

• Antenna Type: Diversity (LPDA + Omnidirectional Dipole)
• Frequency Range: 470 - 698 MHz
• LPDA Gain: 7 dBd
• Omnidirectional Gain: 0 dBd
• LPDA Beamwidth: 100° Horizontal x 100° Vertical
• Polarization: Linear (LPDA), Vertical (Omnidirectional)
• Connector Type: 2x BNC Female
• Impedance: 50 Ohms
• Weather Resistance Rating: IP53
• Mounting Thread: 5/8"-27
• Construction Material: High-impact ABS
• RF Filtering: Passive
• Powering: Passive
• Operating Temperature: -20°C to 50°C

Recommendations

For optimal performance, pair the DFIN-IPX with compatible RF Venue distribution amplifiers and receivers. Ensure proper mounting and cable connections to maintain weather resistance. This antenna is a reliable choice for professionals seeking durable, high-quality RF reception in challenging conditions.
