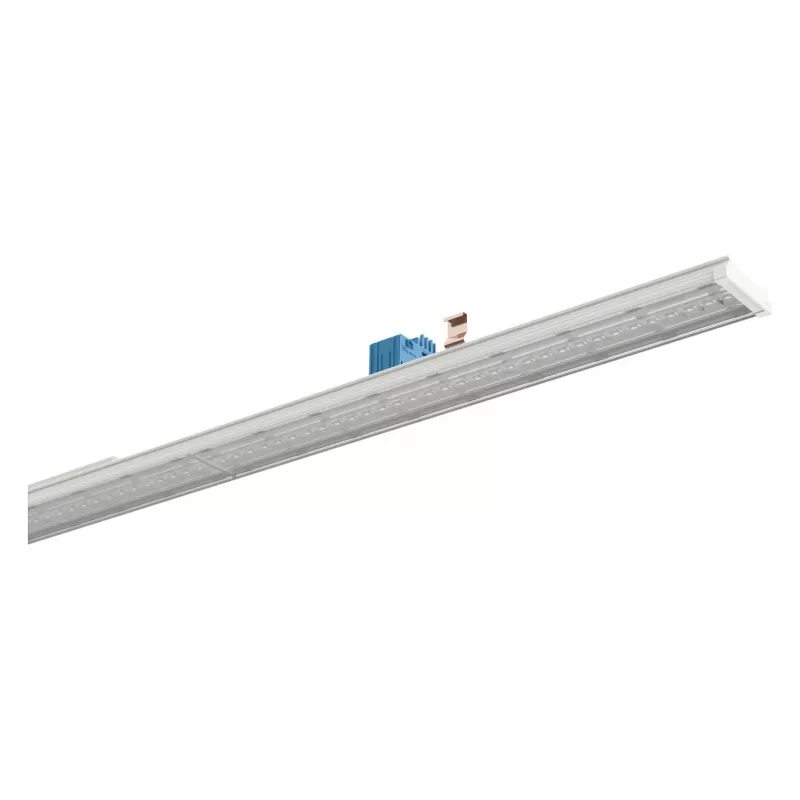

LED Gear Tray RIDI VL2E-GL150-5FLWS840B0800 para canaleta LINIA VL2, 5 filas, 8160 lm, 50 W, 4000 K, DALI

With an exceptional luminous efficacy of 163.2 lm/W, this LED gear tray turns the RIDI LINIA VL2 trunking system into a high-performance lighting solution. The 1500 mm tray integrates five LED rows to deliver 8160 lumens of neutral white light at 4000 K, ensuring a CRI above 80 for accurate colour rendering. Designed for tool-free snap-in mounting, it installs effortlessly into RIDI LINIA VL2 trunking, making setup quick and hassle-free. The wide beam distribution provides uniform illumination across workspaces, while the integrated DALI driver enables smooth dimming for adaptive lighting control. With an L80/B10 lifetime exceeding 50,000 hours and an operating range from -20 to +40 °C, this gear tray is built for long-term reliability in demanding commercial environments.

Overview

The RIDI VL2E-GL150-5FLWS840B0800 is a professional LED gear tray engineered for the RIDI LINIA VL2 trunking system. It combines five LED rows with a high-efficiency driver to deliver 8160 lumens at a system power of just 50 W, achieving an outstanding luminous efficacy of 163.2 lm/W. The neutral white light (4000 K) with a colour rendering index greater than 80 ensures a comfortable and productive lighting atmosphere. The wide beam angle (WS) provides broad, even light distribution, ideal for offices, corridors, and industrial spaces. The tray features a steel sheet housing with white powder coating, offering durability and a clean aesthetic. It is rated IP20 for indoor use.

What stands out

• High luminous efficacy of 163.2 lm/W for energy savings
• Five LED rows deliver 8160 lm of neutral white light
• Tool-free snap-in mounting for quick installation
• Integrated DALI driver for smooth dimming
• Wide beam angle for uniform illumination
• Long lifetime: L80/B10 > 50,000 hours
• Robust steel housing with white powder coating

Technical details

• Product type: LED gear tray
• Series: RIDI LINIA VL2
• Luminous flux: 8160 lm
• System power: 50 W
• Luminous efficacy: 163.2 lm/W
• Colour temperature: 4000 K (neutral white)
• Colour rendering index: Ra > 80
• Beam angle: wide beam (WS)
• Number of LED rows: 5
• Nominal length: 1500 mm
• Housing material: steel sheet, white powder-coated
• Protection class: I
• Ingress protection: IP20
• Dimmability: DALI
• Operating voltage: 220-240 V AC / 50-60 Hz
• LED lifetime: L80/B10 > 50,000 h
• Ambient temperature range: -20 to +40 °C
• Mounting: tool-free snap-in into RIDI LINIA VL2 trunking
• Driver: integrated electronic LED driver
• Energy efficiency class: F

Our verdict

The RIDI VL2E-GL150-5FLWS840B0800 is a top-tier LED gear tray for LINIA VL2 trunking systems, offering exceptional energy efficiency and reliable performance. Its tool-free installation and DALI dimming make it a versatile choice for modern commercial lighting projects.
