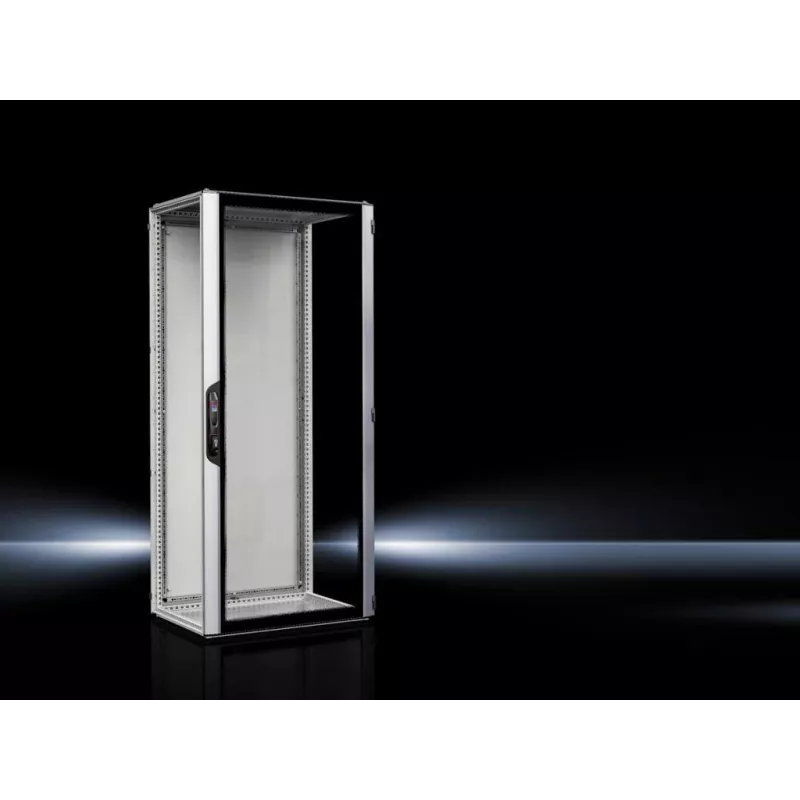

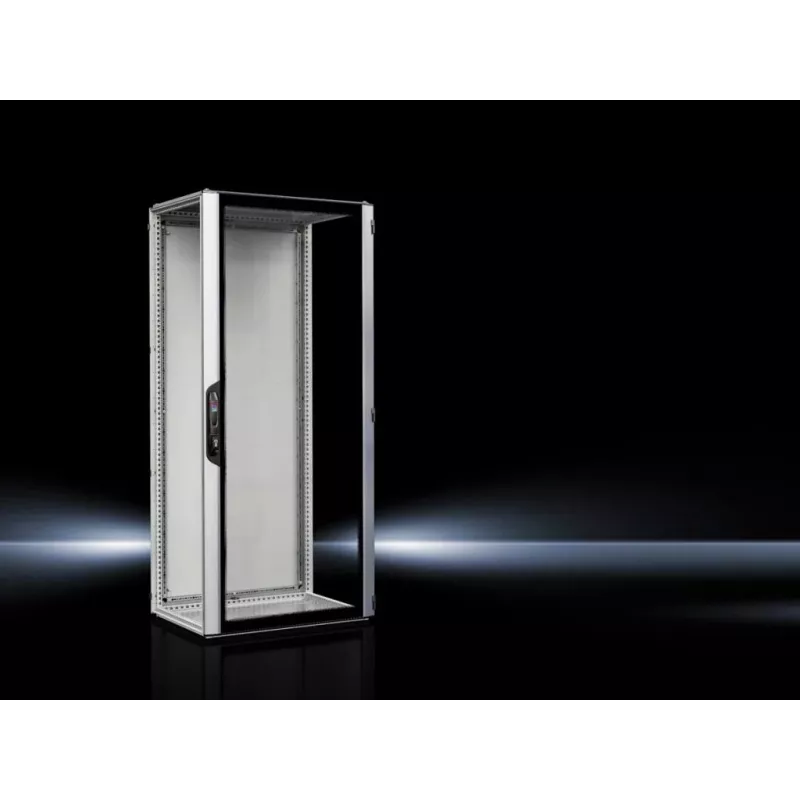

Rittal 5327.190 Rack de servidor 42U independiente IP55, 800x1000x2000 mm, negro/gris, puerta de vidrio de seguridad

With a static load capacity of 1500 kg, this Rittal freestanding enclosure is built to anchor the heaviest IT and network infrastructure without compromise. The 42U frame delivers 19-inch mounting at both front and rear, offering 875 mm of usable installation depth for deep servers, switches, and storage arrays.

Overview

The Rittal 5327.190 is a premium freestanding rack enclosure engineered for demanding data centers and industrial IT environments. Its robust sheet steel and aluminum construction, combined with a tempered safety glass front door, provides both durability and visibility. The enclosure meets IP55 protection, safeguarding equipment against dust and water jets, making it suitable for challenging locations.

What stands out

• IP55-rated protection against dust and water jets for reliable operation in harsh conditions.
• 42U capacity with front and rear 19-inch mounting levels for flexible equipment installation.
• High static load capacity of 1500 kg supports heavy server and UPS configurations.
• Tempered safety glass front door with 180° hinge for easy access and clear monitoring.
• Split rear door and removable, lockable side panels simplify maintenance and cabling.
• Top and bottom cable entry points facilitate clean cable management.
• Comfort handle locking system accommodates a profile half-cylinder for secure access.

Technical details

• External dimensions: 800 mm width x 1000 mm depth x 2000 mm height.
• Usable installation depth: 875 mm; usable installation width: 745 mm.
• Material: sheet steel, aluminum, tempered safety glass.
• Color: RAL 9005 (black) frame with RAL 7035 (light grey) panels.
• Front door: tempered safety glass, 180° hinge.
• Rear door: sheet steel, split, 180° hinge.
• Side panels: removable and lockable.
• Protection class: IP55.
• Application: IT and network infrastructure.

Our verdict

A rugged, high-capacity enclosure that combines IP55 protection, generous mounting depth, and a sleek glass front door—ideal for mission-critical deployments where reliability and accessibility are paramount.
