Rittal adaptador de aparato 25 A AWG RX 936072012 3 polos B:45 mm 1=4 (9360720)

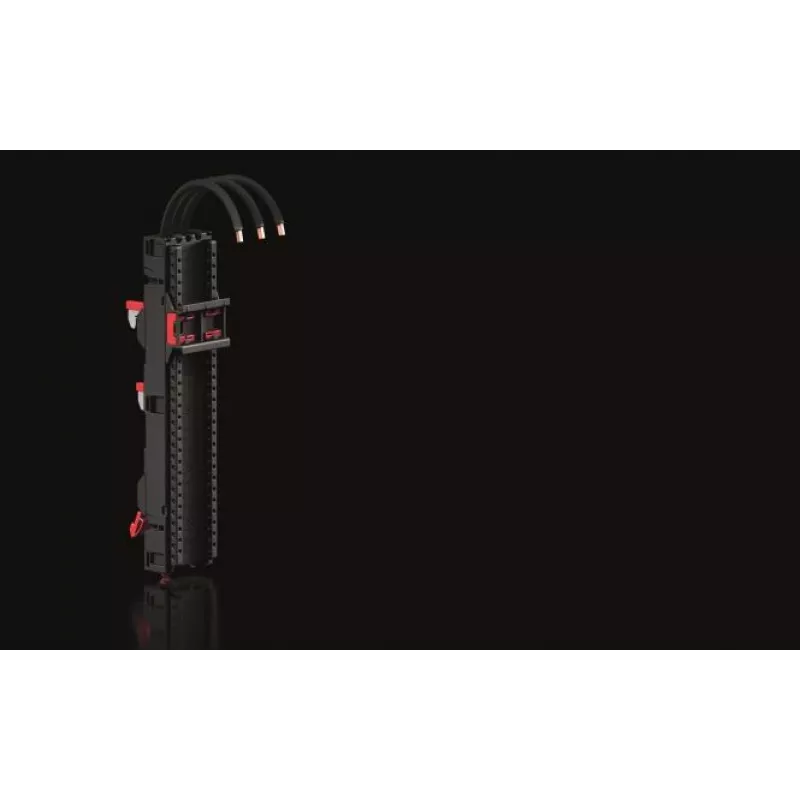

Device adapter Rittal 25 A AWG RX 936072012 is a compact 3‑pole electrical adapter designed for use in control cabinets and distribution systems. With a rated current of 25 A and a B dimension of 45 mm, this adapter provides a standardized interface for connecting compatible equipment in industrial electrical installations. Supplied as type 1=4, it fits installations that require a narrow, space-saving adapter while maintaining clear conductor separation and reliable current handling.

Advantages

The adapter combines a defined 25 A rating with a compact 45 mm B dimension to save panel space without compromising on current capacity. Its 3‑pole configuration allows straightforward integration into existing three-conductor layouts. Rittal manufacturing and materials provide consistent mechanical fit and electrical contact reliability, making the adapter suitable for repeated installation tasks and service conditions in control cabinets and distribution frames.

Suitable for

Key specifications

How to use

Install the adapter according to the electrical layout of the control cabinet, ensuring the B:45 mm dimension aligns with the intended mounting space. Securely fasten the adapter in the panel or distribution frame and connect conductors to the corresponding poles using appropriate crimp or screw terminations as specified by the connected equipment. Observe the rated current of 25 A and ensure conductor cross-sections and protective devices match the adapter's electrical rating.

Recommendations

Use the adapter only within its rated current and physical mounting constraints; verify compatibility with mating connectors and follow local electrical codes. Regular inspections of contacts and mounting integrity are recommended during maintenance to ensure reliable performance.
