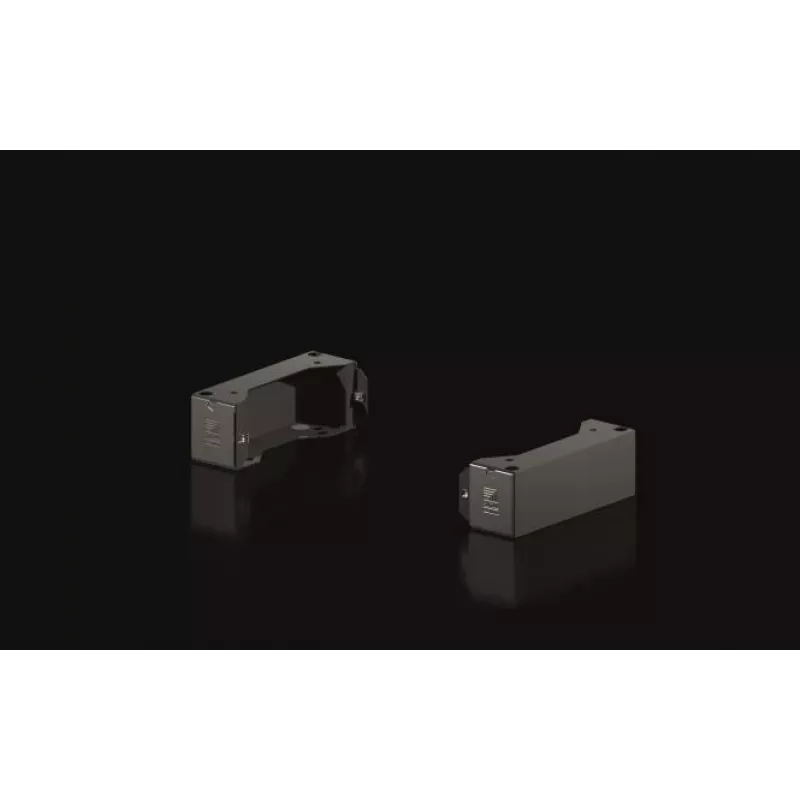

Rittal elemento base 2830310, zócalo de montaje 100 mm de alto × 300 mm de ancho

Rittal base element with dimensions 100 mm height × 300 mm width is a mounting base designed for enclosures and rack systems. It provides a flat, stable support platform for electrical and electronic components and helps achieve precise panel alignment and reliable load distribution. The base element is compatible with modular mounting arrangements and facilitates secure fixing of equipment inside control cabinets and distribution enclosures.

Advantages

The mounting base offers consistent dimensional accuracy and a rigid support surface that reduces flex under load. Its compact 100 mm height and 300 mm width make it suitable for tight spaces while still providing sufficient area for mounting terminal blocks, small modules, and support brackets. The component is engineered to integrate with standard enclosure systems and simplifies assembly by providing predefined mounting space that aligns with rack and panel configurations.

Suitable for

Key specifications

How to use

Position the mounting base inside the enclosure or rack at the intended mounting height and secure it using the enclosure's fastening points or compatible hardware. Ensure the base is level and aligned with adjoining panels before tightening fasteners. Mount electrical components onto the base using suitable screws or brackets, maintaining manufacturer-recommended clearances for wiring and ventilation. For retrofit work, verify that the base aligns with existing cutouts and mounting rails to preserve structural stability.

Recommendations

Verify load limits of the enclosure and distribute heavy components across multiple supports when necessary. Use corrosion-resistant fasteners in humid or corrosive environments and leave adequate space for cable routing and heat dissipation to maintain safe and reliable operation.
