Rittal Placa de brida modular, troquelado métrico, plástico, gris claro 2561200

UL 94 V-0 flammability-rated plastic flange plate with metric pre-stamped cable entry openings for fast, tool-free gland installation.

Overview

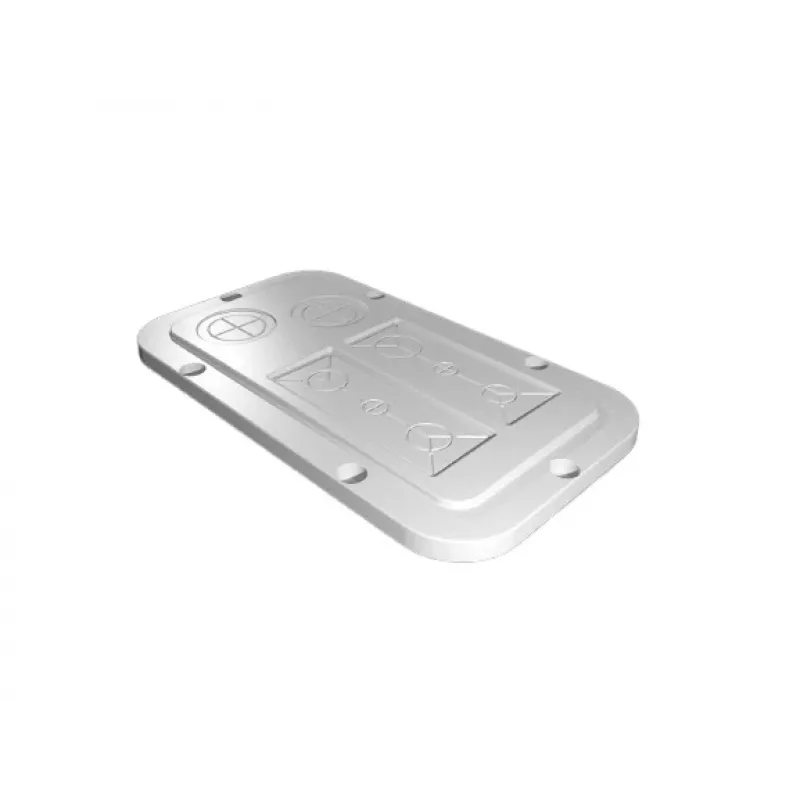

The Rittal 2561200 is a modular flange plate made from light grey polyamide (PA) plastic. It is designed for cable entry and management in industrial enclosures, providing a clean and organized solution for routing cables. The plate features pre-stamped metric openings, allowing for quick and easy installation of cable glands without the need for additional cutting or drilling.

What stands out

• Pre-stamped metric configuration: 4x M20/25, 2x M32/40, 1x M50/63
• Durable polyamide (PA) construction with UL 94 V-0 flammability rating
• Light grey colour (RAL 7035) matches standard enclosure aesthetics
• Supplied with seal and assembly parts for immediate use
• Screw-on mounting for secure attachment to enclosure walls

Technical details

• Material: Plastic (Polyamide PA)
• Colour: Light Grey (RAL 7035)
• Type: Modular Flange Plate
• Pre-stamping Type: Metric
• Pre-stamping Configuration: 4x M20/25, 2x M32/40, 1x M50/63
• Protection Rating: IP55 (when installed correctly)
• Operating Temperature Range: -20 °C to +80 °C
• Mounting Type: Screw-on
• Flammability Rating: UL 94 V-0
• Compatibility: Various Rittal Enclosure Series (e.g., AE, TS 8, SE 8)

Our verdict

A practical and reliable solution for cable management in industrial settings, offering pre-stamped convenience and robust material properties.
