Rittal SK filtro de fieltro para ventilador filtrante 3237.7xx/32 (3237054)

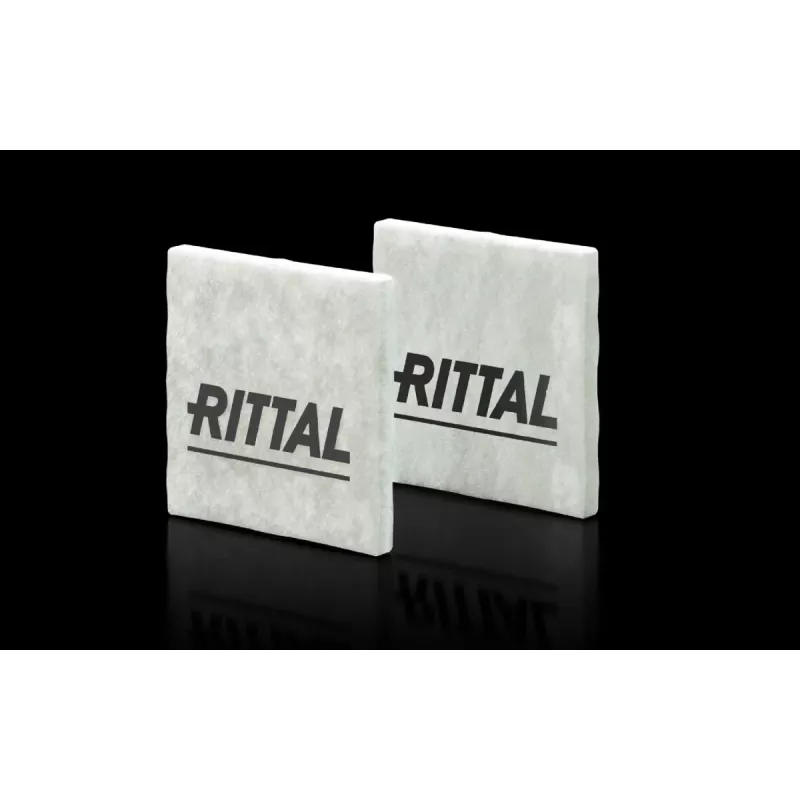

Industrial enclosures require clean, filtered airflow to protect sensitive electronics from dust and particulate contamination. The Rittal SK Vliesfiltermatte is a replacement filter mat specifically designed for Rittal SK filter fans, ensuring reliable air filtration and maintaining optimal operating conditions within enclosures.

Who is it for

This filter mat is intended for maintenance personnel and system integrators responsible for the upkeep of Rittal SK filter fans in industrial environments. It is suitable for applications where air quality and equipment protection are critical, such as in manufacturing, automation, and control systems.

Main features

• Progressive-construction chopped-fibre mat for effective dust retention
• Filter class G3 according to EN 779 and ISO Coarse 50% according to ISO 16890
• Self-extinguishing material conforming to UL 94 V-0
• Wide temperature resistance from -20 °C to +100 °C
• Reversible airflow direction for flexible installation
• Easy push-in replacement without tools

Specifications

• Product type: Filter Mat
• Series: SK
• Material: Progressive-construction chopped-fibre mat
• Filter class (EN 779): G3
• Filter class (ISO 16890): ISO Coarse 50%
• Temperature resistance: -20 °C to +100 °C
• Self-extinguishing: UL 94 V-0
• Nominal dimensions (L x W x H): 320 x 320 x 10 mm
• Color: White
• Humidity resistance: 5% to 95% relative humidity (non-condensing)
• Dust retention capacity: High
• Airflow direction: Reversible
• Installation: Easy, push-in replacement

Tips

Replace the filter mat when it becomes visibly soiled or when airflow is restricted to maintain efficient cooling and prevent overheating of enclosure components. Regular inspection is recommended in dusty environments.
