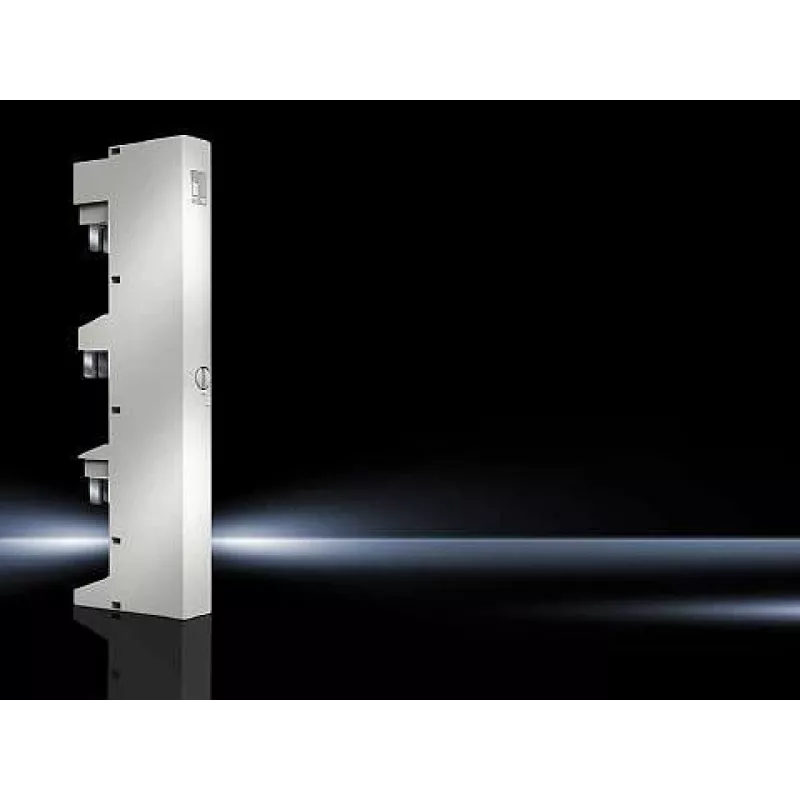

Rittal SV Adaptador de conexión 9342.200, 20x215 mm, poliamida, gris RAL 7035, para barras conductoras RiLine60

In a busy industrial control panel, an electrician needs to tap power from the main busbar system to feed a new motor starter. The Rittal SV Connection Adapter 9342.200 makes this task straightforward: it snaps onto the 60 mm RiLine60 busbar and provides a secure connection point for outgoing feeders. Its slim 20 mm width leaves plenty of room for other devices, while the 215 mm height allows vertical distribution along the bar.

Key specifications

• Compatible with Rittal RiLine60 busbar system (60 mm centre-to-centre)
• Material: Polyamide, colour grey RAL 7035
• Dimensions: 20 mm width x 215 mm height x 20 mm depth
• Accepts busbar thickness 5 mm or 10 mm
• Mounting type: direct busbar mounting
• ETIM class: EC000447 (busbar accessory)
• Operating temperature: -5 °C to +55 °C
• Storage temperature: -40 °C to +70 °C

Why choose it

This adapter is built from tough polyamide that resists heat and mechanical stress inside enclosures. The grey RAL 7035 finish matches standard Rittal enclosures, keeping your panel looking tidy. Its compact footprint means you can install multiple adapters side by side without wasting space.

Ideal use cases

• Connecting circuit breakers or fuse holders to RiLine60 busbars
• Distributing power to multiple loads in machine control cabinets
• Retrofitting existing busbar systems with additional tap-off points
• Building modular power distribution in switchgear assemblies

Good to know

The SV series adapter is designed for tool-free snap-on installation, reducing assembly time. Always verify the busbar thickness (5 mm or 10 mm) before ordering to ensure a proper fit. For higher current applications, consider using multiple adapters in parallel.
