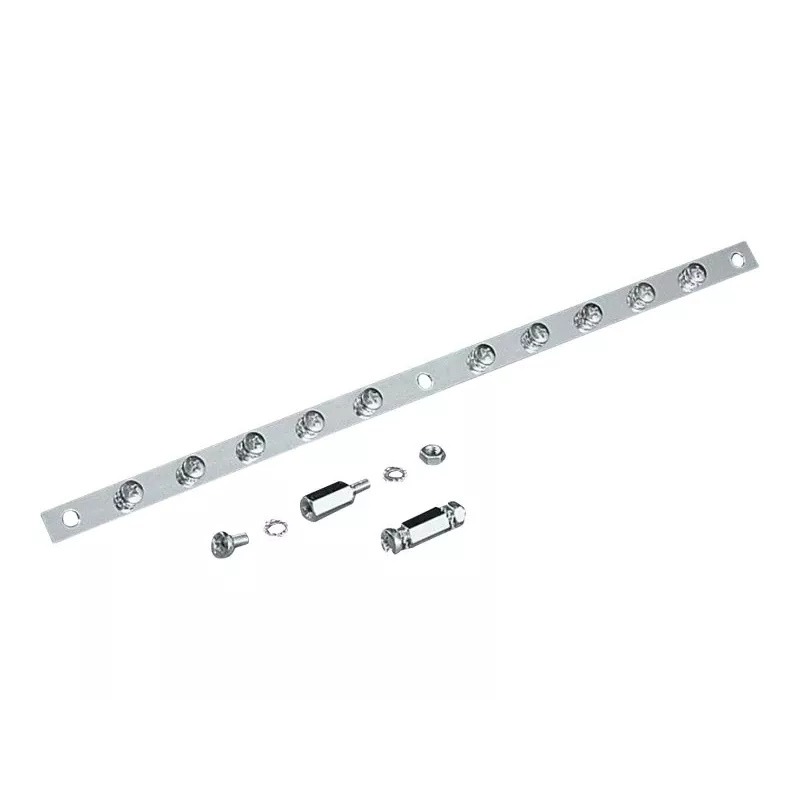

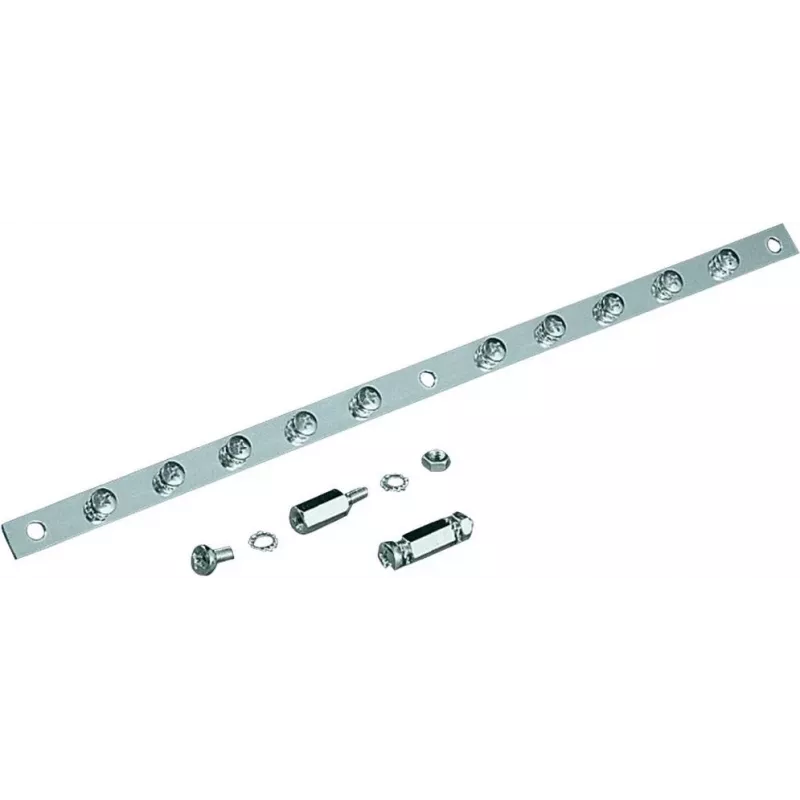

Rittal SZ 2413.375 Distribuidor de barras planas, 10 conexiones, acero, 375 mm, 100 A, 690 V AC

With a robust 100 A current rating and 690 V AC voltage capacity, this Rittal flat busbar delivers dependable power distribution in enclosures. The SZ 2413.375 features 10 connection points along a 375 mm galvanized steel bar, offering a solid, uninsulated conductor for industrial applications.

Overview

Part of the Rittal SZ series, this busbar is engineered for mounting plates and TS 8 enclosures. Its 12 x 5 mm cross-section provides efficient current carrying capability while maintaining a compact footprint. The galvanized steel construction ensures durability and corrosion resistance, making it suitable for long-term use in demanding environments.

What stands out

• High current capacity: 100 A maximum for reliable power distribution.
• Ten connection points for flexible wiring configurations.
• Galvanized steel material for enhanced durability and conductivity.
• Compact 375 mm length fits standard enclosure mounting plates.
• Complies with IEC 61439 standards for safety and performance.

Technical details

• Product type: Flat busbar
• Material: Steel, galvanized
• Number of connections: 10
• Length: 375 mm
• Cross-section: 12 x 5 mm
• Rated current (max.): 100 A
• Rated voltage (max.): 690 V AC
• Mounting type: For mounting plates, TS 8 enclosures
• Application: Power distribution in enclosures
• Conductor type: Solid bar
• Insulation: Uninsulated
• Standard compliance: IEC 61439
• Colour: Metallic (galvanized)

Our verdict

A reliable and versatile busbar for enclosure power distribution, offering high current capacity and robust construction in a compact form factor.
