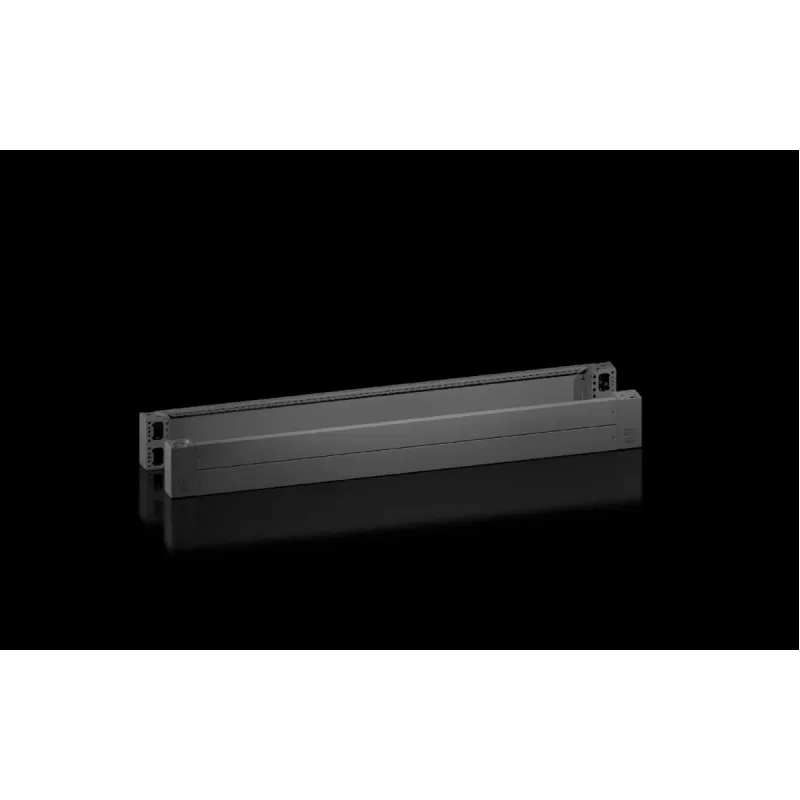

Rittal VX Esquinero de zócalo, delantero/trasero, 200 mm de altura, para 1800 mm de anchura 8660027

This plinth corner piece is engineered for the Rittal VX25 enclosure system, providing structural support and a clean finish at the front or rear corners of the plinth. With a height of 200 mm and designed for enclosures with a width of 1800 mm, it integrates seamlessly with other plinth components.

Overview

Constructed from sheet steel with a dipcoat-primed, powder-coated finish in RAL 7035 light grey, this corner piece ensures durability and a professional appearance. It is screw-fastened for secure installation and is suitable for industrial environments.

What stands out

• Compatible with Rittal VX25 enclosure system
• Includes plinth trim panels for front and rear
• Provides structural support and aesthetic finish
• Protection category IP 55 when installed correctly

Technical details

• Product Type: Plinth Corner Piece
• Height: 200 mm
• Compatible Enclosure Width: 1800 mm
• Material: Sheet Steel
• Surface Finish: Dipcoat-primed, powder-coated
• Colour: RAL 7035 (Light Grey)
• Mounting Type: Screw-fastened
• Included Components: 1x Plinth corner piece, 2x Plinth trim panels (front/rear), 2x Assembly components for enclosure frame, 1x Assembly component for plinth base/corner piece

Our verdict

A reliable and precise component for completing the plinth section of VX25 enclosures, offering both functionality and a clean look.
