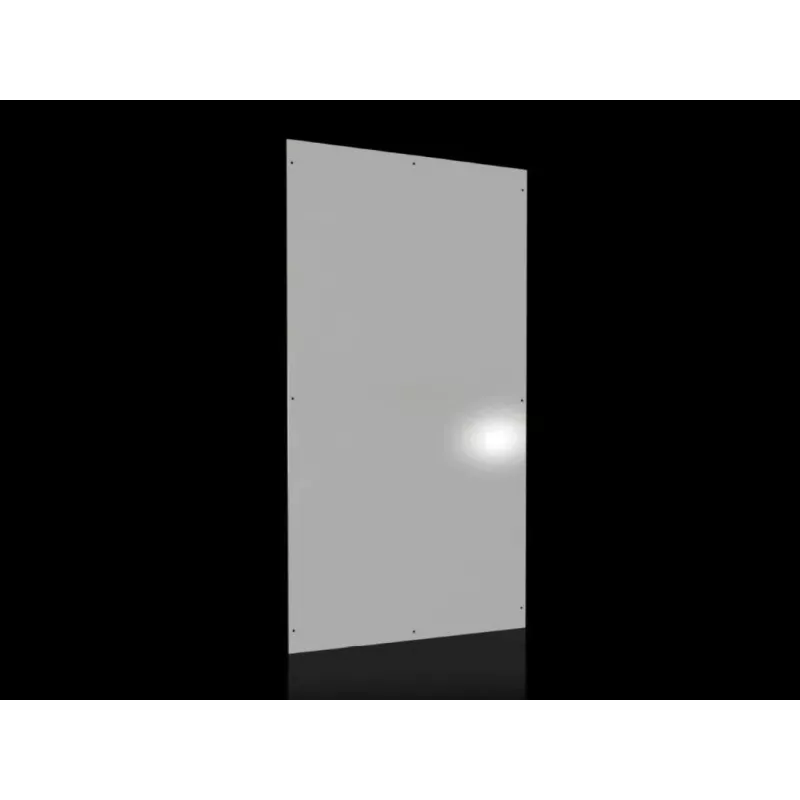

Rittal VX Panel lateral, atornillado, chapa de acero, RAL 7035, pack de 2, para VX25 2000x400mm 8122245

In industrial and data center environments, unprotected enclosure sides leave sensitive equipment vulnerable to dust, moisture, and unauthorized access. The Rittal VX side panel provides a robust, screw-fastened closure that completes your VX25 enclosure, ensuring a clean, professional appearance while maintaining the structural integrity and protection rating of your installation.

Who is it for

System integrators, panel builders, and facility managers working with Rittal VX25 enclosures who need reliable side coverage for 2000 mm high, 400 mm deep bays. Ideal for new builds or retrofits where solid, non-vented panels are required to maintain IP55 protection and a uniform light-grey finish.

Main features

• Precision-formed from 1.5 mm sheet steel for durability and rigidity.
• Dip-primed and powder-coated exterior in RAL 7035 light grey, matching standard VX25 enclosures.
• Screw-fastened design ensures a secure, vibration-resistant fit and easy installation.
• Pack of two panels covers both sides of one enclosure bay.
• Compatible with Rittal VX25 enclosures with 2000 mm height and 400 mm depth.
• Contributes to IP55 protection rating when properly installed with gaskets (not included).
• Includes assembly parts for straightforward mounting.

Specifications

• Product type: Side panel
• Enclosure system compatibility: Rittal VX25
• Enclosure height compatibility: 2000 mm
• Enclosure depth compatibility: 400 mm
• Material: Sheet steel
• Material thickness: 1.5 mm
• Surface finish: Dip-primed, powder-coated (exterior)
• Colour: RAL 7035 (light grey)
• Mounting method: Screw-fastened
• Quantity per pack: 2 panels
• Protection rating (with proper installation): IP55
• Design: Solid, non-vented
• Included accessories: Assembly parts
• Application: Industrial, IT, and data center enclosures
• Corrosion resistance: Yes

Tips

For best results, ensure the enclosure frame is clean and free of burrs before mounting. Use the included assembly parts and torque screws to the manufacturer's specification to maintain the panel's alignment and protection rating. Pair with Rittal VX25 gaskets (sold separately) to achieve the full IP55 seal.
