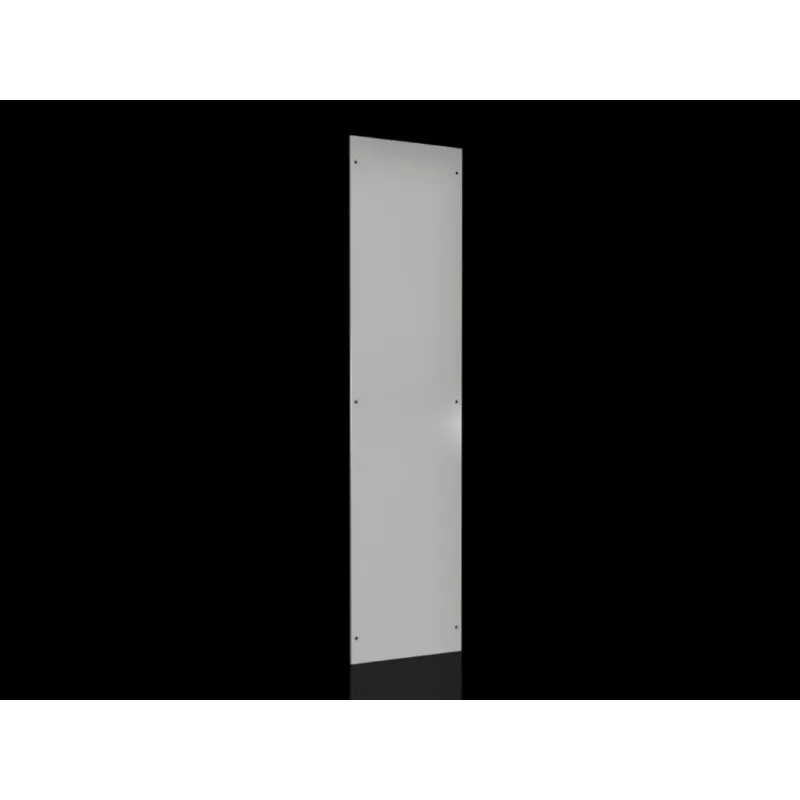

Rittal VX Pared lateral, fijación atornillada, para armario AlxAn: 2000x500 mm, chapa de acero, RAL 7035, par

Closing the open sides of a VX25 enclosure can be a challenge when you need a secure, solid barrier that maintains the enclosure's protection rating and clean appearance. The Rittal VX side panel solves this by providing a robust screw-fastened closure that integrates seamlessly with the VX25 frame, ensuring your equipment stays protected from dust, moisture, and unauthorized access.

Who is it for

This side panel is ideal for panel builders, system integrators, and industrial electricians who assemble or modify Rittal VX25 enclosures. It suits applications in factory automation, machine control, and infrastructure projects where a reliable, IP55-rated enclosure side is required. The pair of panels covers both sides of a single enclosure, making it a complete solution for standard configurations.

Main features

• Solid sheet steel construction for durability and protection
• Screw-fastened mounting for a secure, vibration-resistant fit
• Compatible with Rittal VX25 enclosure system, height 2000 mm, depth 500 mm
• Exterior dip-primed and powder-coated in RAL 7035 light grey for corrosion resistance and a professional finish
• Interior dip-primed for additional protection
• Supplied as a pair (2 side panels) with assembly parts
• Helps achieve IP55 protection when properly installed

Specifications

• Product type: Side panel
• Enclosure system compatibility: Rittal VX25
• Compatible enclosure height: 2000 mm
• Compatible enclosure depth: 500 mm
• Material: Sheet steel
• Exterior surface finish: Dip-primed, powder-coated
• Interior surface finish: Dip-primed
• Colour: RAL 7035 (light grey)
• Protection category: IP 55 (when installed)
• Quantity supplied: 2 pieces (pair)
• Included components: 2 side panels, assembly parts

Tips

For best results, ensure the enclosure frame is clean and free of burrs before mounting. Tighten screws evenly to maintain a uniform seal and achieve the specified IP rating. Keep spare screws and assembly parts in a labelled container for future maintenance or reconfiguration.
