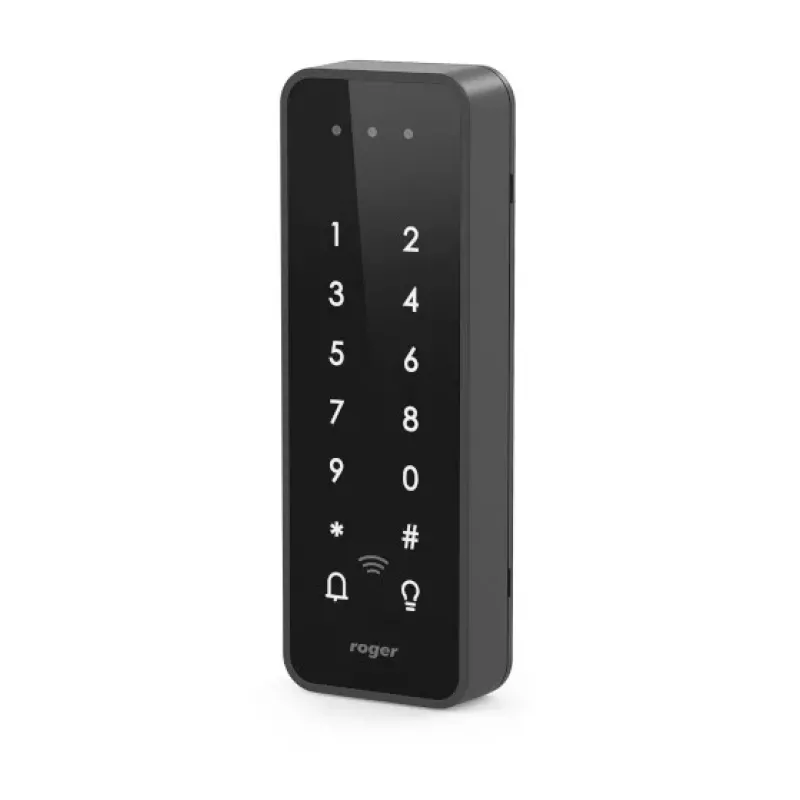

Lector de proximidad ROGER MCT84M

The ROGER MCT84M is a proximity reader with a 12-button keypad and built-in speaker. It supports MIFARE® Ultralight/Classic cards and offers a read range of up to 7 cm. Configuration is possible via the RogerVDM PC program.

Key features

• Proximity reader with keypad
• 12 buttons (0-9, *, #) plus two function keys
• MIFARE® Ultralight/Classic card support
• Read range up to 7 cm
• RS-485 communication interface
• Three LED indicators
• Speaker with volume control
• Tamper sensor for enclosure opening and detachment from surface
• Configuration via RogerVDM PC software

Specifications

• Brand: Roger
• MPN: MCT84M
• Supply voltage: 12 VDC
• Current consumption: 65 mA
• Protection rating: IP41
• Environmental class: Class II, indoor conditions
• Operating temperature: -10°C to +50°C
• Relative humidity: 10 to 95% (non-condensing)
• Dimensions: 130 x 45 x 22 mm
• Weight: ≈100 g
• Certificate: CE
