ROGER PR602LCD-DT-O controlador de acceso

The ROGER PR602LCD-DT-O is an access controller with a built-in proximity reader for EM 125 kHz and 13.56 MHz, an RCP terminal, a 0.5M switching cable, a silicone keypad, and a 4-line LCD display. It supports up to 4000 users, 99 time schedules, 250 access groups, and stores 32,000 events in its internal memory buffer.

Key features

• Built-in proximity reader EM 125 kHz and 13.56 MHz
• RCP terminal
• 0.5M switching cable
• Silicone keypad, 4-line LCD display
• Possibility to connect an external reader (two-way passage control)
• Cooperation with PRT series readers (Roger) and other standards (Wiegand 26..66 bit, Magstripe, Clock&Data and others)
• Three programmable input lines NO/NC
• Two programmable transistor outputs 1A
• One programmable relay output 1.5A/30V
• Communication via RS485
• Any communication bus topology
• 4000 users
• 99 time schedules
• 250 access groups
• 32,000 events in internal memory buffer
• Local anti-passback
• Global anti-passback (requires CPR32-SE in the system)
• Possibility to connect an XM-2 type input/output expander
• Integration with alarm system via input/output lines
• Door modes: Normal, Locked, Unlocked and Conditionally Unlocked
• Identification modes: Card or PIN, Card and PIN, Card only, PIN only
• Two Users function, Dual Identification mode and other advanced KD functions
• Fast update of user permissions in less than 5 seconds per controller in the system
• System management via WAN/LAN computer network, or COM/USB serial port
• Possibility to divide the system into subsystems
• Concurrent configuration of subsystems (number of subsystems does not increase settings transmission time)
• Advanced time and attendance functions
• LCD display and 4 function keys
• Outdoor installation
• Anti-tamper protection (tamper)
• CE mark

Specifications

• Brand: Roger
• MPN: PR602LCD-DT-O
• Supply voltage: 10-15 VDC
• Current consumption: 100mA
• Anti-tamper contact: NC contact, 50mA/24V, IP67
• Card reading range: Up to 12 cm
• Environmental class: Class IV, general outdoor conditions, ambient temperature: -25°C to +60°C, relative humidity: 10-95% (non-condensing)

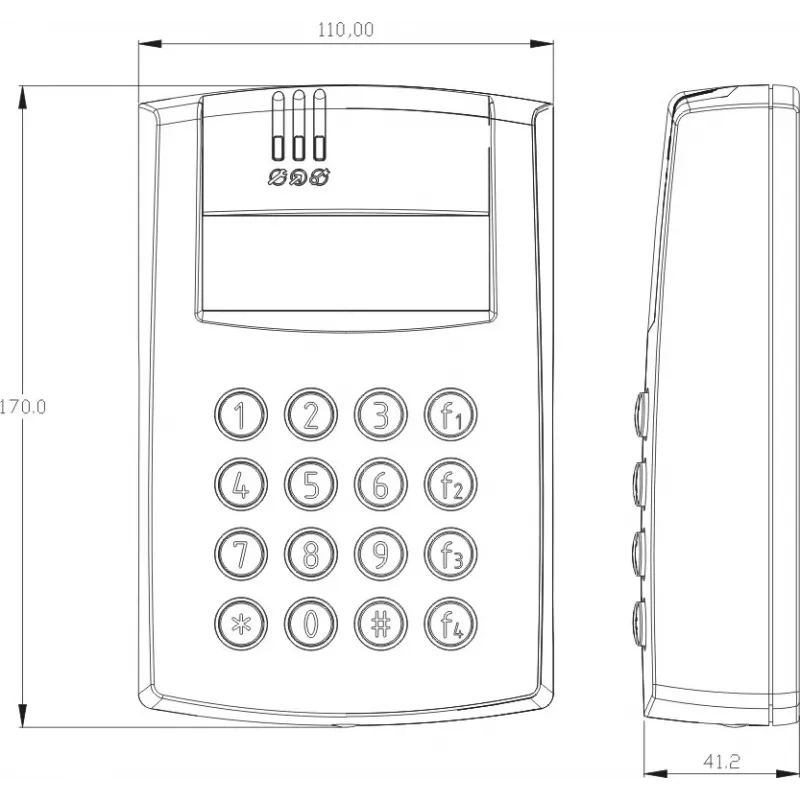

• Dimensions: 170 x 110 x 41.2 mm
• Weight: ≈410g
• Certificate: CE
