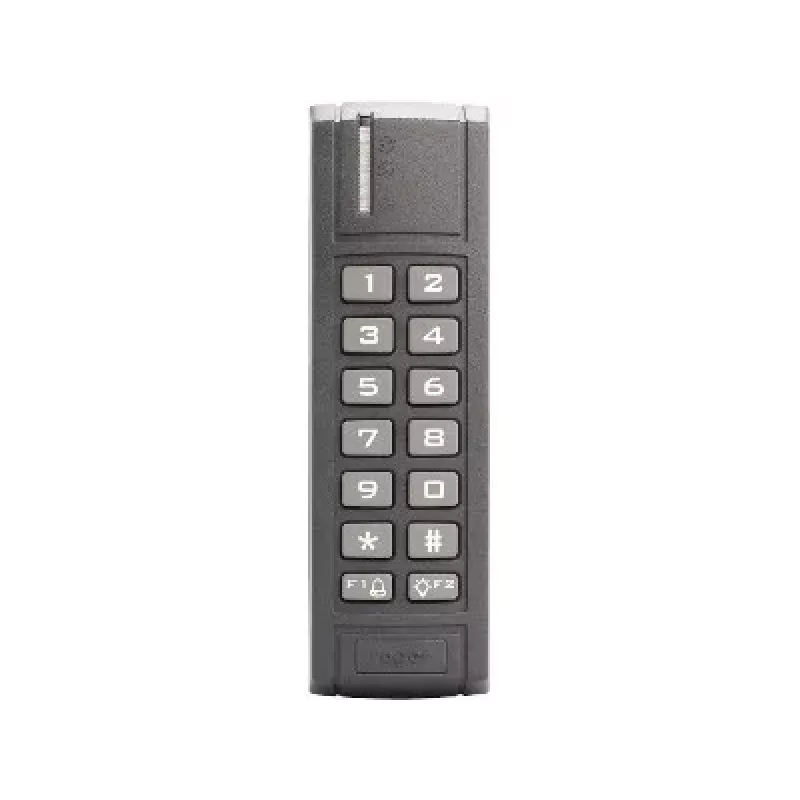

Lector de proximidad ROGER PRT12LT-G

The ROGER PRT12LT-G Proximity Reader is a proximity card reader with a read range of up to 15 cm. It operates on 10–15 VDC with a current consumption of 65 mA and features an anti-tamper contact (NC contact, 50 mA/24 V).

Key features

• Read range for key cards: up to 15 cm
• Anti-tamper contact: NC contact, 50 mA/24 V
• IP65 protection rating
• Environmental class IV, general outdoor conditions

Specifications

• Brand: Roger
• MPN: PRT12LT
• Power supply voltage: 10–15 VDC
• Current consumption: 65 mA
• Operating temperature: -25°C to +60°C
• Relative humidity: 10–95% (non-condensing)

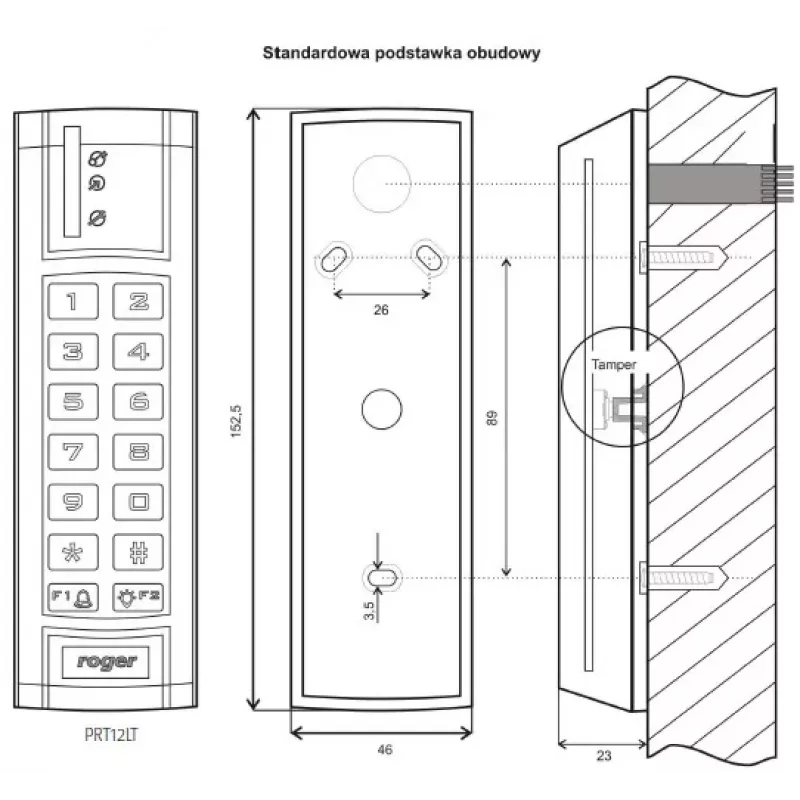

• Dimensions: with standard housing base 152.5 x 46 x 23 mm; with thicker housing base 152.5 x 46 x 35 mm
• Weight: ≈150 g
• Certificate: CE
