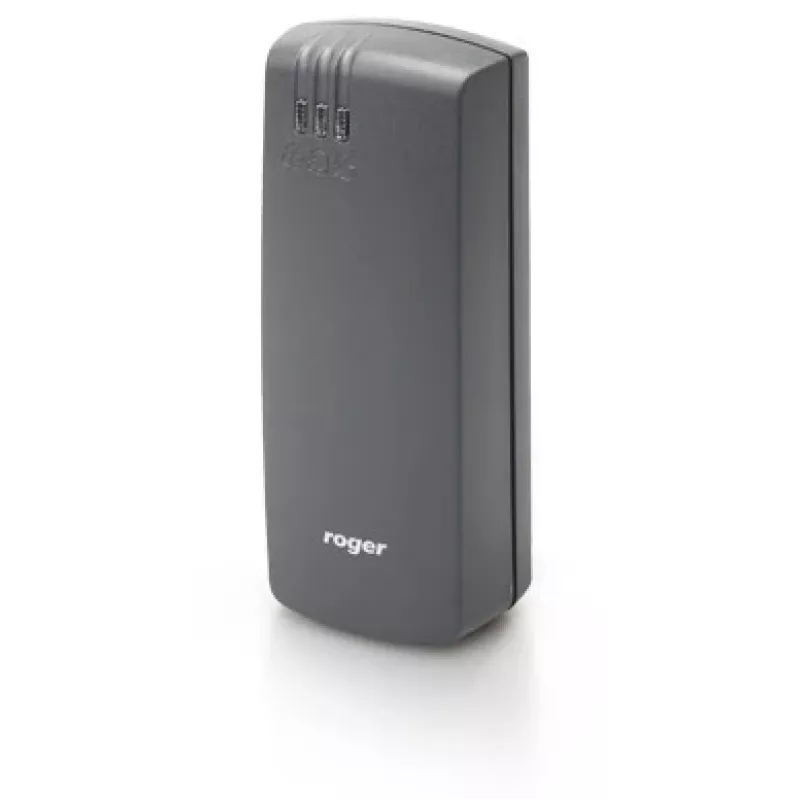

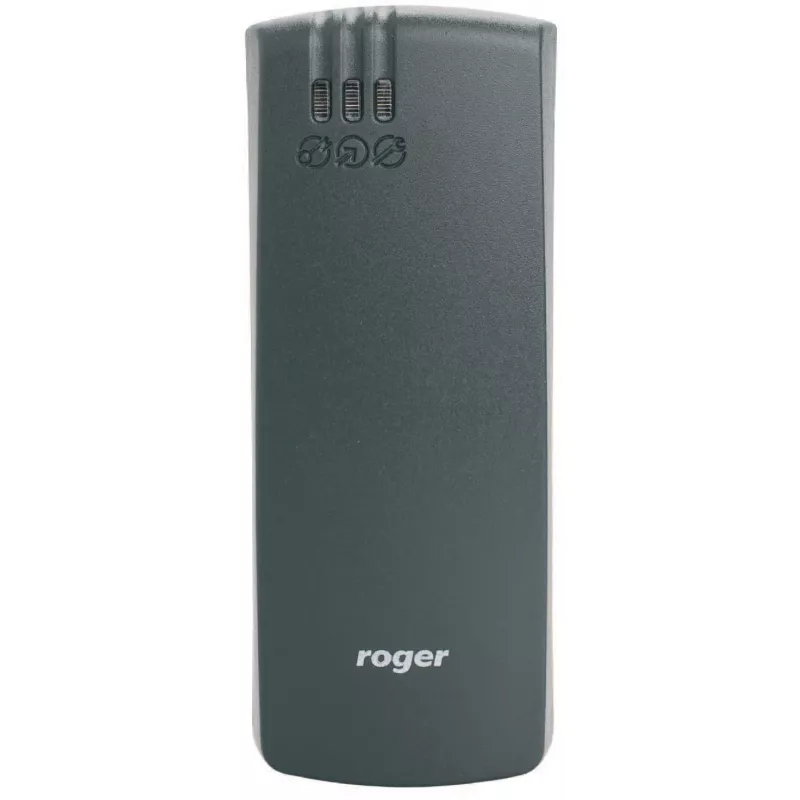

ROGER PRT62LT lector de proximidad

The ROGER PRT62LT is a proximity reader with a supply voltage of 10–15 VDC and a current consumption of 45 mA. It features an anti-tamper contact (NC, 50 mA/24 V) and an IP65 rating, with a card read range of up to 12 cm.

Key features

• Supply voltage: 10–15 VDC
• Current consumption: 45 mA
• Anti-tamper contact: NC, 50 mA/24 V
• IP65 rating
• Card read range: up to 12 cm
• Environmental class: Class IV, general outdoor conditions
• Operating temperature: -25°C to +60°C
• Relative humidity: 10–95% (non-condensing)

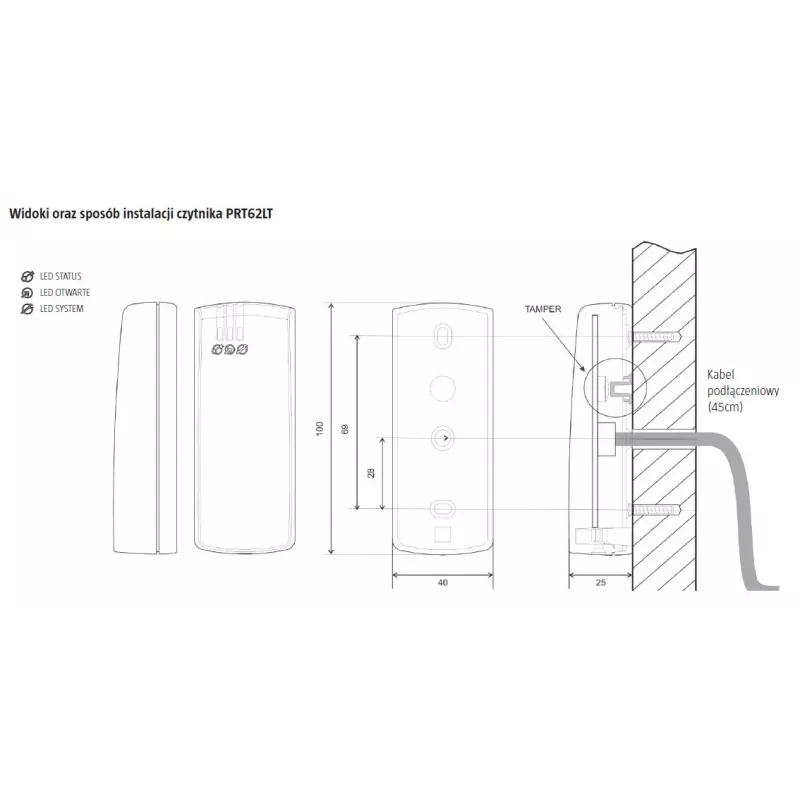

• Dimensions: 100 x 45 x 25 mm
• Weight: ≈100 g
• Certificate: CE

Specifications

• Brand: Roger
• MPN: PRT62LT
• Supply voltage: 10–15 VDC
• Current consumption: 45 mA
• Anti-tamper contact: NC, 50 mA/24 V
• IP rating: IP65
• Read range: up to 12 cm
• Environmental class: Class IV
• Operating temperature: -25°C to +60°C
• Relative humidity: 10–95% (non-condensing)
• Dimensions: 100 x 45 x 25 mm
• Weight: ≈100 g
• Certificate: CE
