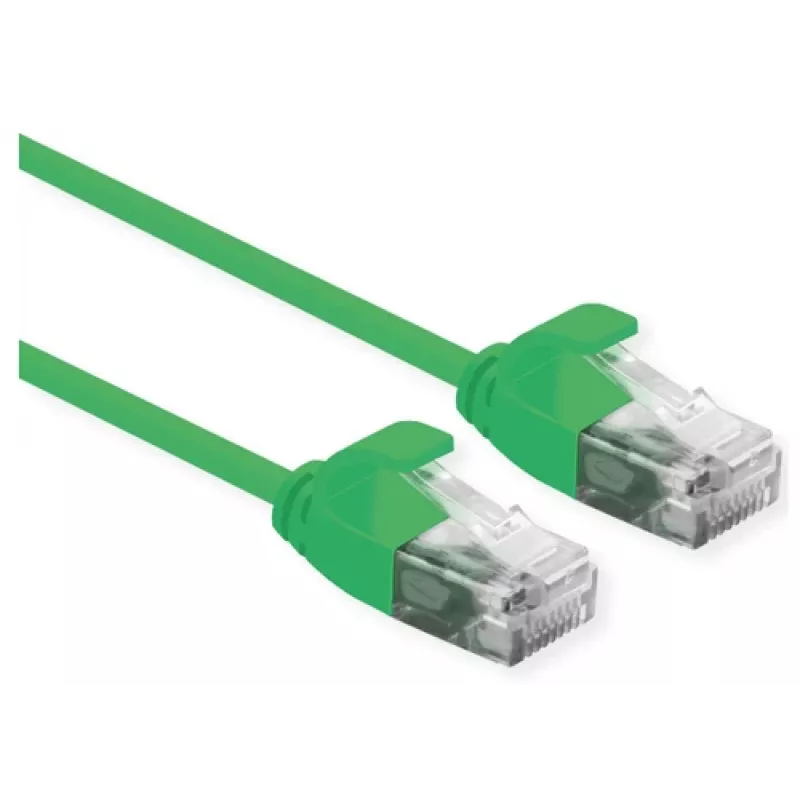

ROLINE Cable de Red UTP DataCenter Cat.6A (Class EA), LSOH, Slim, Verde, 3 m

The ROLINE UTP DataCenter Patch Cable Cat.6A (Class EA) is a high-performance, slim, and halogen-free patch cable designed for demanding data center environments. With a length of 3 meters and a green LSOH jacket, this cable ensures reliable 10 Gigabit Ethernet connectivity while meeting strict fire safety standards.

Advantages

This patch cable offers exceptional performance and safety. Its slim design facilitates high-density patching and improves airflow in crowded racks. The LSOH (Low Smoke Zero Halogen) jacket reduces toxic and corrosive emissions in case of fire, making it ideal for public and commercial buildings. Gold-plated contacts ensure optimal conductivity and corrosion resistance.

Suitable for

• Data center network patching
• Server room cabling
• High-density switch and panel connections
• 10 Gigabit Ethernet networks

Key specifications

• Cable Type: UTP (Unshielded Twisted Pair)
• Category: Cat.6A (Class EA)
• Length: 3 m
• Color: Green
• Jacket Material: LSOH (Low Smoke Zero Halogen)
• Connectors: RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated contacts
• Conductor Material: Copper
• Conductor Gauge: AWG 28
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: 500 MHz
• Cable Construction: Stranded
• Special Features: Slim design, Snagless boot
• Wiring Standard: 1:1 (Straight-through)
• Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Halogen-Free: Yes
• Flame Retardant: Yes

Recommendations

For optimal performance in high-speed data center networks, pair this Cat.6A patch cable with compatible Cat.6A switches and patch panels. Ensure proper cable management to maintain airflow and reduce strain on connectors.
