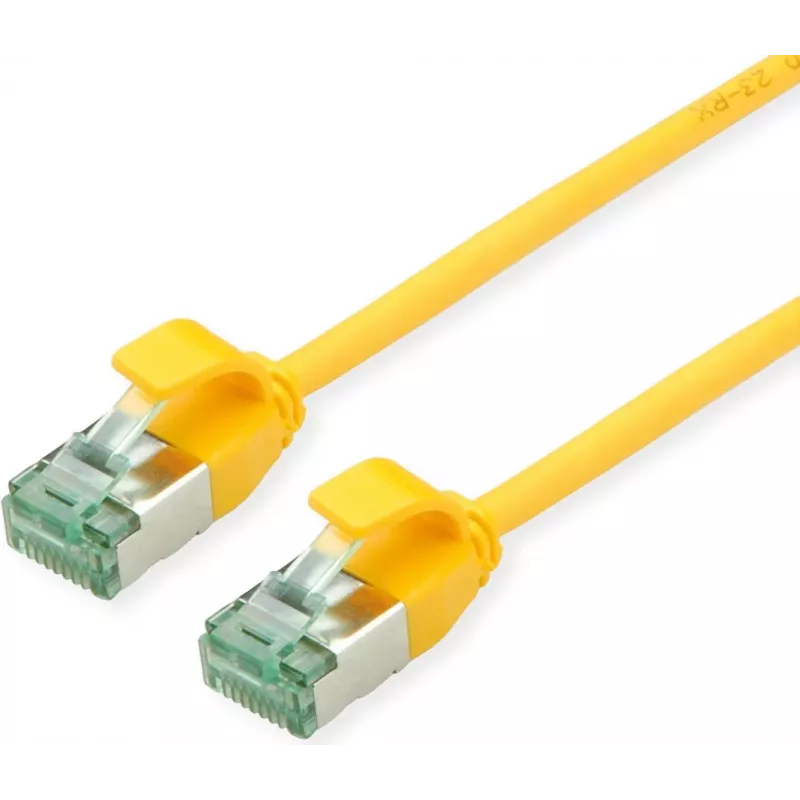

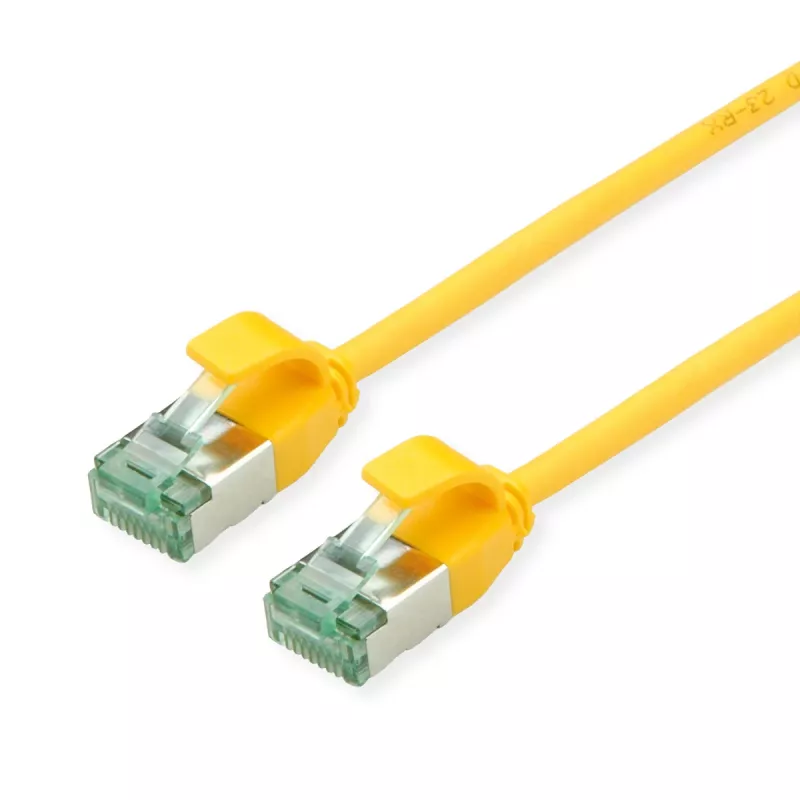

ROLINE RM cable de parcheo U/FTP Cat.6A/Class EA SLIM amarillo 0,15m - FTP (21.45.3320)

Connect high-density network ports in data centers and server rooms with the ROLINE RM U/FTP Patch Cable. Its slim design and short 0.15 m length reduce clutter and improve airflow in tight spaces, while the yellow jacket allows for easy identification.

Key specifications

• Cable type: U/FTP (PiMF - Pairs in Metal Foil)
• Performance category: Cat.6A (Category 6A)
• Performance class: Class EA (ISO/IEC 11801)
• Length: 0.15 m
• Colour: Yellow
• Design: Slim Line
• Shielding type: U/FTP (foil shielding for each twisted pair)
• Connector type: RJ45 male
• Connector plating: Gold-plated contacts
• Conductor material: Stranded copper
• Conductor gauge: AWG 28/7
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Max bandwidth: 500 MHz
• Max data transfer rate: 10 Gigabit Ethernet (10GBASE-T)
• Wiring standard: 1:1 TIA/EIA 568B
• Boot type: Snagless
• Halogen-free: Yes
• Application: High-speed network connections, data centers, server rooms
• Compliance: ISO/IEC 11801, EN 50173-1, TIA/EIA-568-C.2

Why choose it

The slim profile and short length make this cable ideal for high-density patching where space is limited, while the U/FTP shielding ensures reliable 10G performance even in electrically noisy environments. The LSOH jacket adds safety in case of fire.

Ideal use cases

• Data center rack patching
• Server room connections
• High-speed workstation links

Good to know

This cable is part of the ROLINE RECYCLED MATERIAL series, reflecting a commitment to sustainability without compromising performance.
