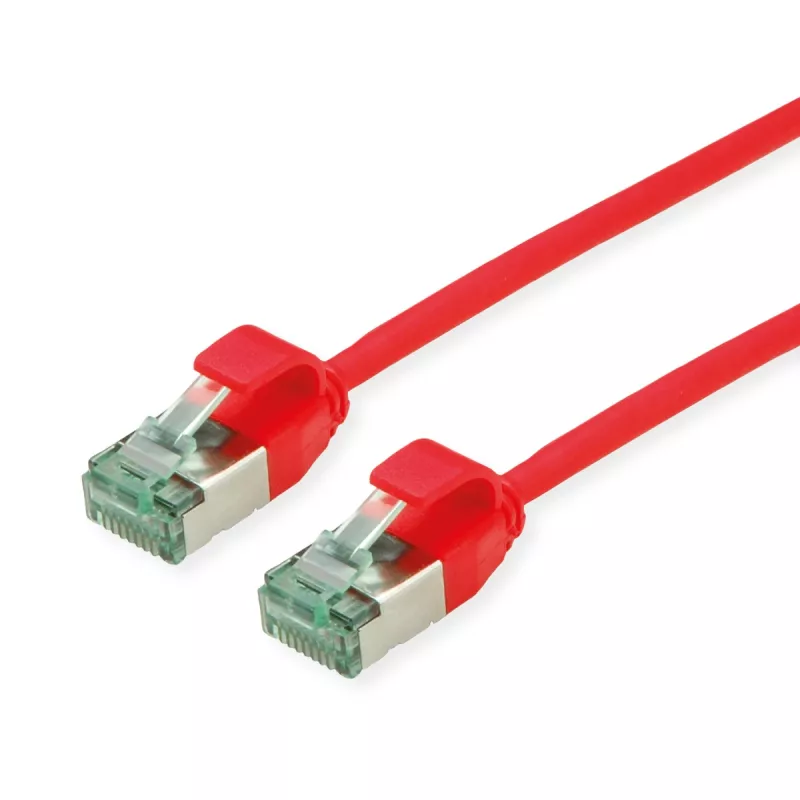

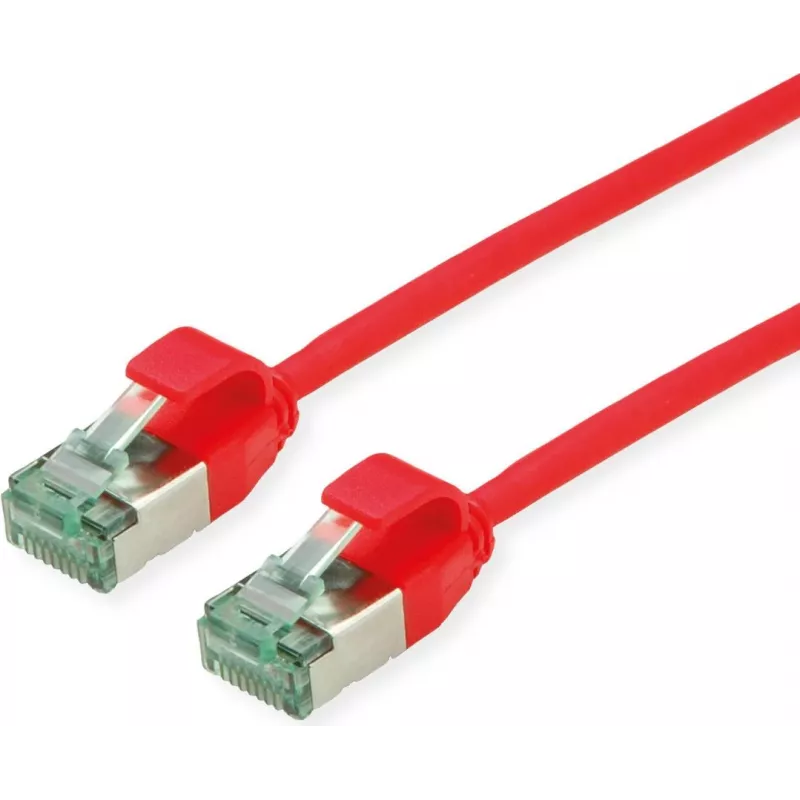

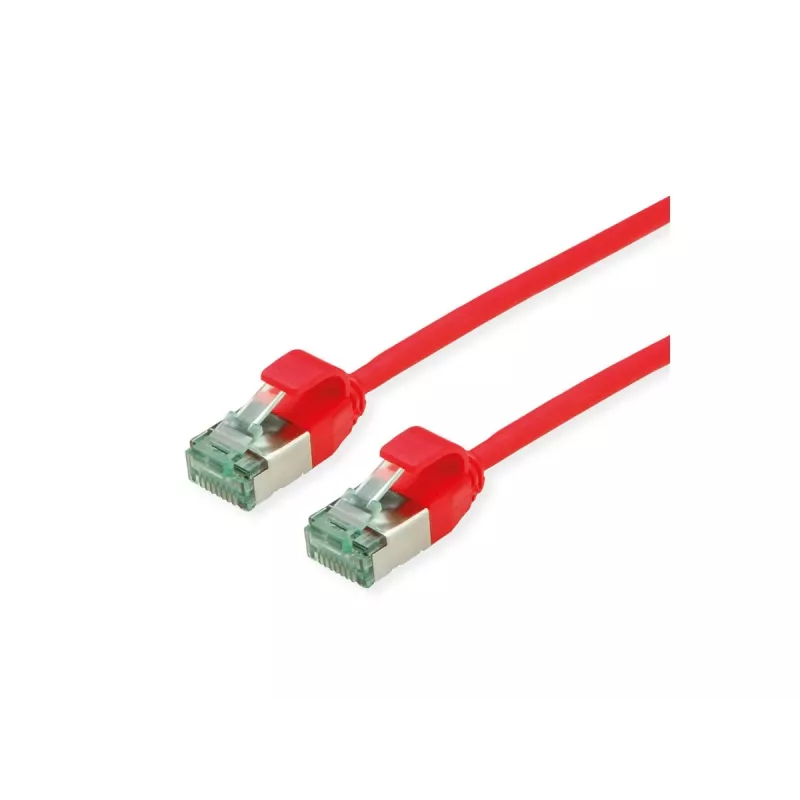

ROLINE RM Cable de parcheo U/FTP Cat.6A/Class EA Slim rojo 3m - FTP (21.45.3316)

High-density patch panels and crowded cable trays demand a cable that doesn't fight for space. This slim Cat.6A patch cable delivers 10 Gigabit performance in a low-profile design, keeping installations tidy without compromising signal integrity.

Who is it for

Network administrators and integrators who need reliable 10G links in space-constrained environments, such as data centers, server rooms, and structured cabling systems.

Main features

• U/FTP construction with PiMF (pairs in metal foil) shielding for excellent crosstalk resistance
• Supports 10GBASE-T up to 500 MHz bandwidth
• Slim line design reduces cable diameter for better airflow and easier routing
• Gold-plated RJ45 connectors (50µm) ensure reliable, corrosion-resistant connections
• LSZH (Low Smoke Zero Halogen) jacket for improved fire safety
• Snagless molded boots protect the locking tab during installation
• Stranded copper conductors (AWG 28/7) provide flexibility for frequent moves

Specifications

• Cable type: U/FTP (unshielded overall, foiled twisted pairs)
• Category: Cat.6A / Class EA
• Length: 3 m
• Colour: Red
• Connector type: RJ45 male to RJ45 male
• Connector plating: Gold (50µm)
• Conductor material: Copper (Cu)
• Conductor gauge: AWG 28/7 (stranded)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Shielding: PiMF (pairs in metal foil)
• Data transfer rate: up to 10 Gbps
• Bandwidth: up to 500 MHz
• Cable construction: Slim line
• Boot type: Molded, snagless
• Wiring scheme: 1:1 (straight-through)
• Halogen-free: Yes
• Standards compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Tips

For best performance, avoid sharp bends and maintain the minimum bend radius specified by the manufacturer. When deploying in bundles, the slim profile allows for higher density without compromising airflow.
