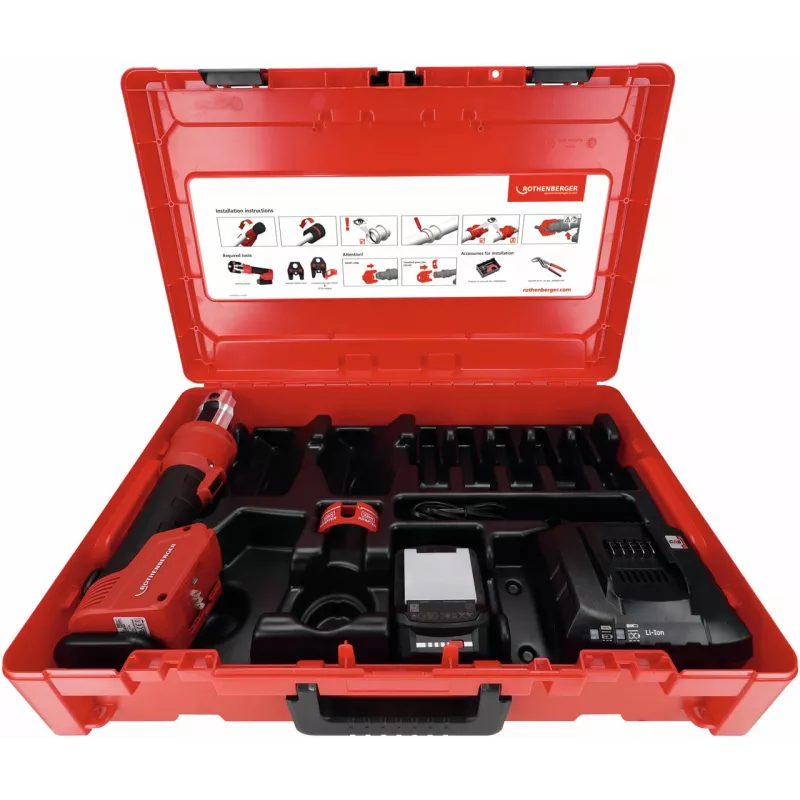

ROTHENBERGER ROMAX NANO iJaw 32 kN prensadora a batería (unidad base, batería)

The ROMAX NANO iJaw sets a new benchmark for compact cordless pressing. Despite its 32 kN force, it weighs just 1.6 kg without battery and jaw, making overhead and tight-space work far less tiring. The brushless motor and electro-hydraulic drive complete a press cycle in about 3–4 seconds, while the 360° rotating head and ROTHENBERGER Compact jaw system let you approach fittings from almost any angle.

Highlights

• 32 kN pressing force for metal systems up to 35 mm and plastic up to 40 mm
• Ultra-light 1.6 kg base unit (without battery/jaw) reduces fatigue on long jobs
• Brushless motor with electro-hydraulic drive for fast 3–4 second cycles
• 360° rotating head and iJaw compact jaw system for excellent access
• Integrated LED work light and status display for battery and service intervals
• Bluetooth connectivity for the ROTHENBERGER app (service tracking, tool data)
• Safety features: emergency stop and automatic piston return
• Operates in temperatures from -10°C to +60°C

In daily use

On site, the ROMAX NANO iJaw proves its worth in confined spaces. The rotating head lets you align the jaw without twisting the tool, and the LED light illuminates dark cabinets or shafts. The display keeps you informed about remaining battery capacity and the next service interval (40,000 cycles or 2 years), so you can plan maintenance instead of being surprised. When paired with the ROTHENBERGER app via Bluetooth, you can read out tool data and manage service records directly from your phone.

Full specifications

• Pressing force: 32 kN
• Pressing range metal: up to 35 mm
• Pressing range plastic: up to 40 mm
• Compatible battery voltage: 18 V Li-Ion
• Pressing cycle duration: approx. 3–4 seconds
• Jaw system: ROTHENBERGER Compact (iJaw)
• Head rotation: 360°
• Motor type: Brushless
• Service interval: 40,000 press cycles or 2 years
• Connectivity: Bluetooth (ROTHENBERGER app)
• Work light: Integrated LED
• Display: LED (battery status, service interval)
• Safety features: Emergency stop, automatic return
• Operating temperature range: -10°C to +60°C
• Dimensions (L x H x W): 340 x 140 x 75 mm
• Weight (without battery/jaw): 1.6 kg
• Product type: Cordless electro-hydraulic press tool
• Power source: Battery-powered

Final note

The ROMAX NANO iJaw combines professional pressing force with a truly compact and lightweight design. It is the ideal choice for installers who need reliable performance in difficult positions without sacrificing speed or safety.
