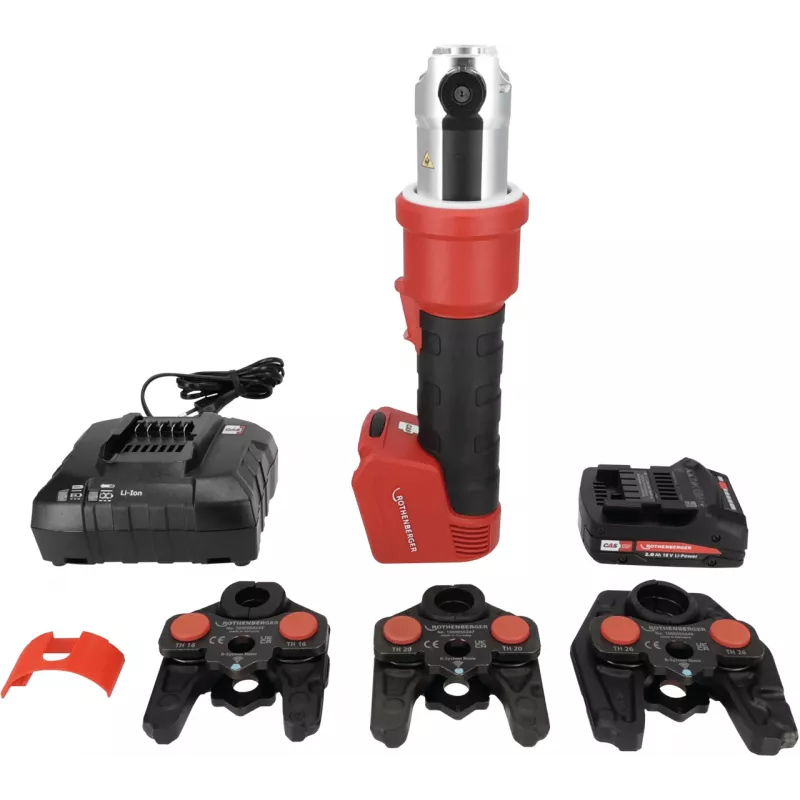

ROTHENBERGER ROMAX NANO iJaw prensadora a batería con mordaza de prensar TH 16, 19 kN electrohidráulica, 18V Li-Ion, Bluetooth

Traditional pipe pressing often means wrestling with heavy, corded tools that limit mobility and slow down installation. The ROTHENBERGER ROMAX NANO iJaw eliminates these constraints with a compact, battery-powered design that delivers professional-grade pressing force wherever the job takes you. This kit includes the TH 16 press jaw, so you can start working immediately on common copper and steel fittings.

Who is it for

Plumbers, heating engineers, and HVAC technicians who need a reliable, portable pressing solution for service calls, maintenance, and new installations. It is especially suited for tight spaces where larger tools cannot reach, thanks to its lightweight body and 360° rotating jaw.

Main features

• Electro-hydraulic drive with 19 kN pressing force for secure, leak-free joints on metal and plastic pipes.
• iJaw quick-change system allows tool-free jaw swaps in seconds, minimizing downtime between tasks.
• Brushless motor and 18V Li-Ion battery provide consistent power and long service life.
• Bluetooth connectivity pairs with the ROTHENBERGER Connect app for tool diagnostics and usage tracking.
• Integrated LED work light illuminates dark work areas, and an emergency stop function enhances safety.
• Compatible with ROTHENBERGER Compact (Mini) jaws, covering pressing ranges from 12–35 mm (metal) and 16–40 mm (plastic).

Specifications

• Battery voltage: 18 V
• Battery capacity (included): 2.0 Ah
• Pressing force: 19 kN
• Pressing technology: Electro-hydraulic
• Motor type: Brushless
• Jaw rotation: 360°
• Pressing range (metal): 12–35 mm
• Pressing range (plastic): 16–40 mm
• Press jaw included: TH 16
• Press cycles per charge (approx.): 150 (28 mm stainless steel with 2.0 Ah battery)
• Charging time (approx.): 30–45 minutes (for 2.0 Ah battery)
• Service interval: 40,000 press cycles or 2 years
• Connectivity: Bluetooth (ROTHENBERGER Connect App)
• LED work light: Yes
• Operating temperature: -10°C to +60°C
• Quick jaw change system: iJaw Technology
• Emergency stop function: Yes

Tips

For optimal performance, keep the battery charged and store the tool in a dry place. Regularly inspect the press jaws for wear and replace them as needed to maintain leak-free connections.
