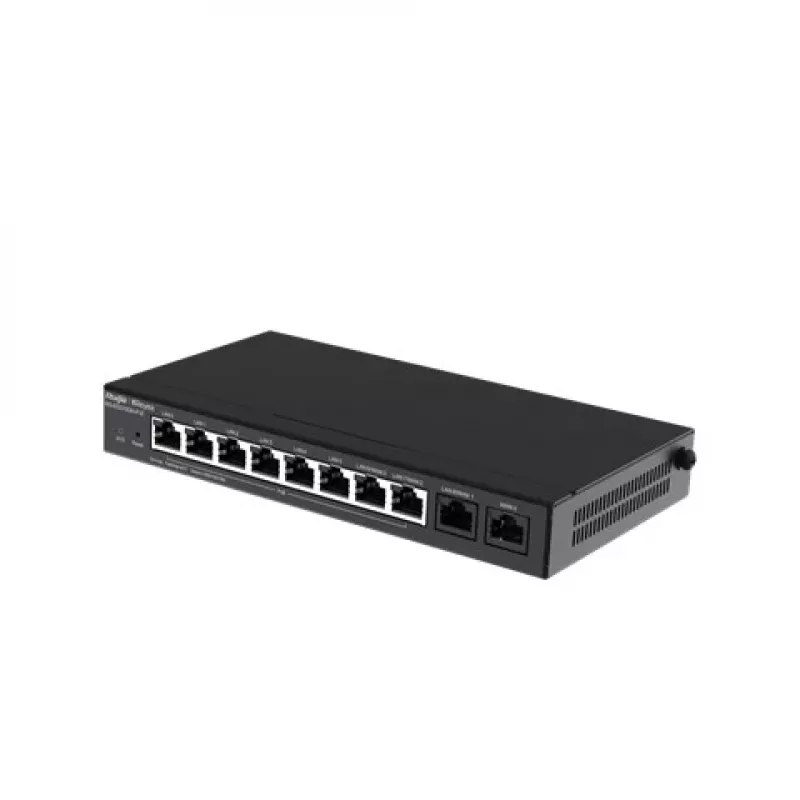

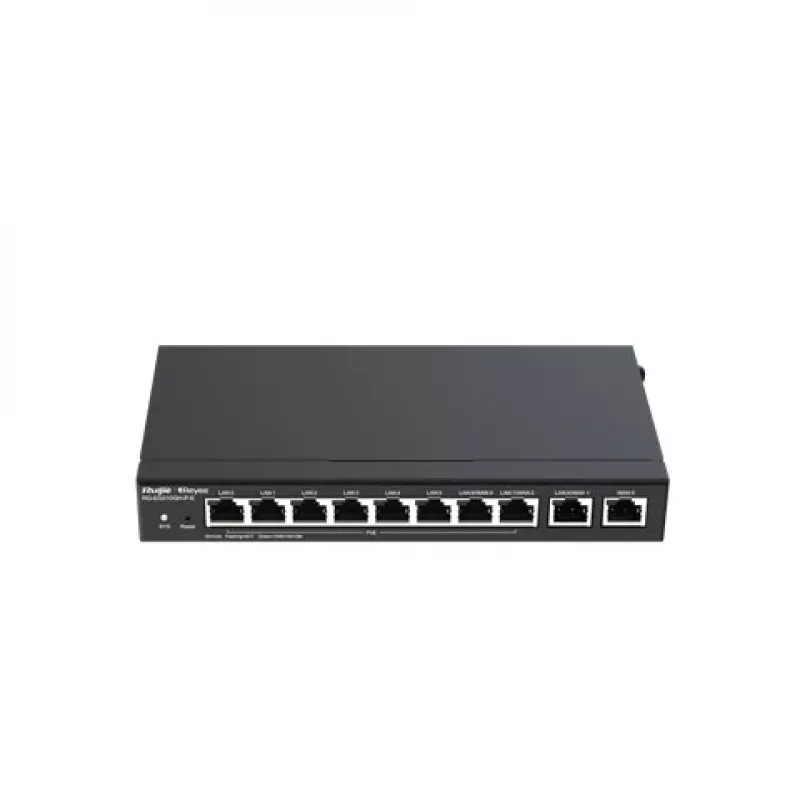

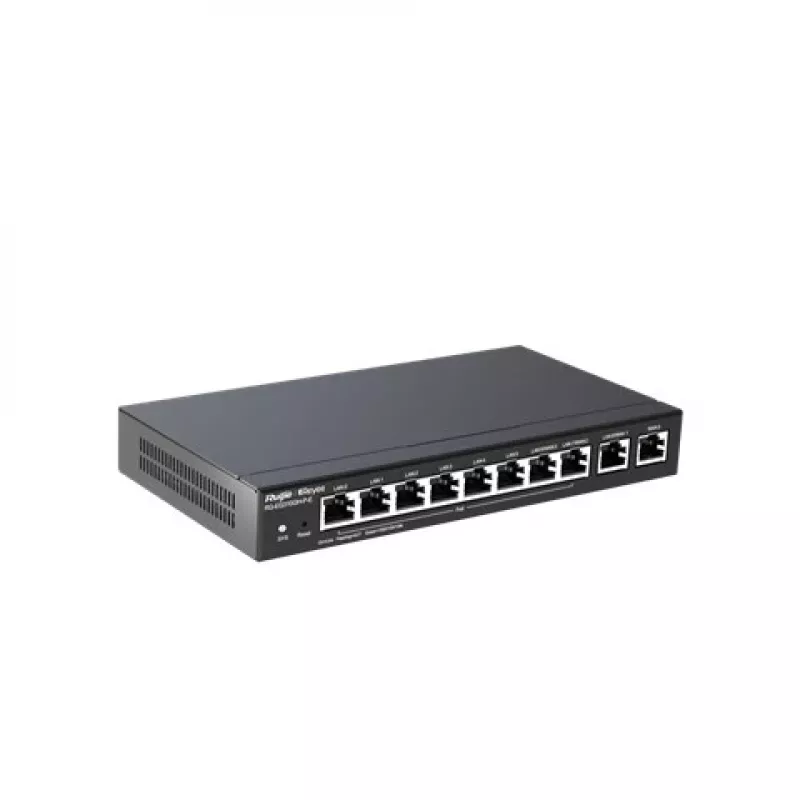

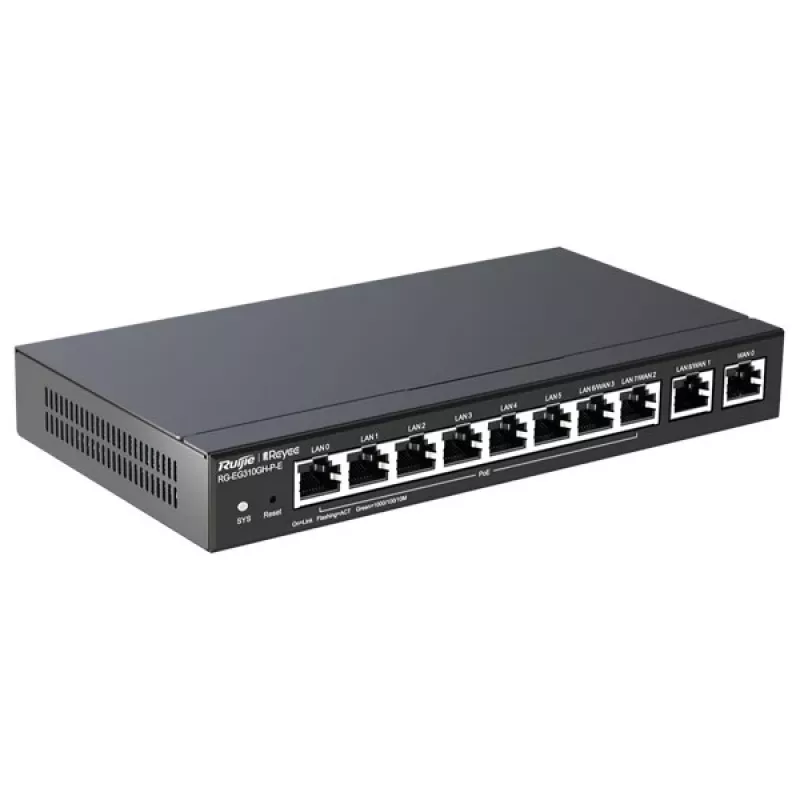

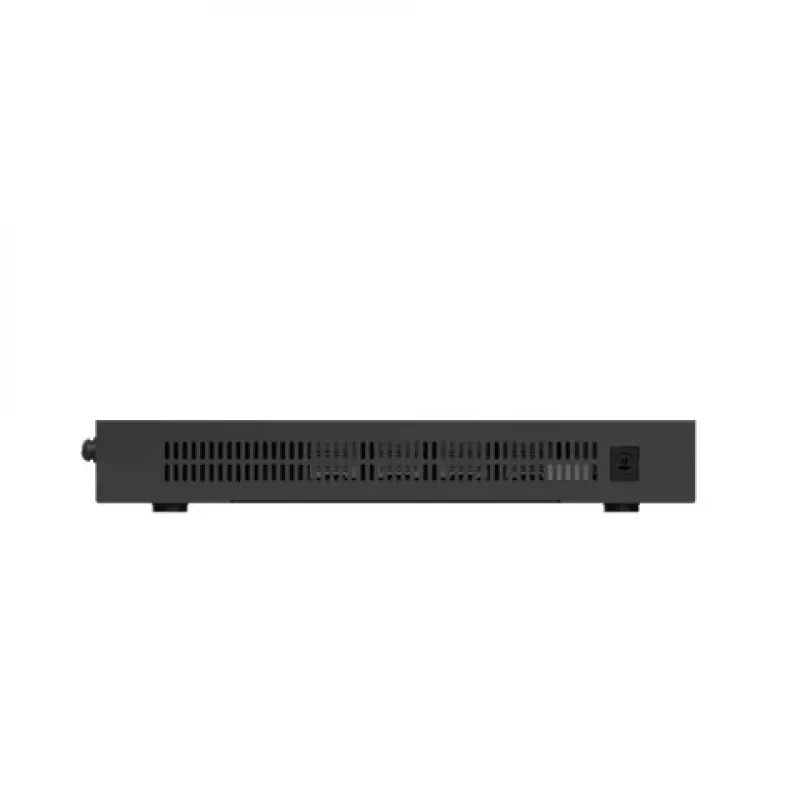

Router cableado Ruijie Networks RG-EG310GH-P-E 1,5 Gbit/s 100 usuarios

The Ruijie Networks RG-EG310GH-P-E is a wired router engineered for small to medium-sized networks requiring stable, high-throughput connectivity. Supporting IEEE 802.3af and IEEE 802.3at Power over Ethernet standards, the device provides a switching capacity of 1.5 Gbit/s and is designed to serve up to 100 users. With 256 GB internal storage and 512 MB internal memory, the router handles configuration data and logs locally while its compact black enclosure (202 mm x 108 mm x 28 mm) and 0.55 kg weight allow flexible installation in office racks or wall-mounted points. Typical power consumption is 130 W, making it suitable where PoE power delivery and continuous operation are needed.

Advantages

The RG-EG310GH-P-E combines PoE support for both IEEE 802.3af and 802.3at devices with a 1.5 Gbit/s switching capacity to maintain reliable throughput across multiple wired connections. Internal storage of 256 GB and 512 MB memory enable local logging and configuration persistence, reducing dependence on external servers for routine operational data. Its ten Ethernet LAN (RJ-45) ports and compact footprint provide flexible deployment options in constrained spaces while the black finish integrates unobtrusively into typical office or network closet environments.

Key specifications

• Switching capacity: 1.5 Gbit/s
• Supported PoE standards: IEEE 802.3af, IEEE 802.3at
• Maximum supported users: up to 100 users
• Internal storage: 256 GB
• Internal memory: 512 MB
• Ethernet LAN (RJ-45) ports: 10
• Product colour: Black
• Dimensions (W x D x H): 202 mm x 108 mm x 28 mm
• Weight: 0.55 kg
• Typical power consumption: 130 W

How to use

Install the RG-EG310GH-P-E on a stable surface or wall mount near your network distribution point. Connect incoming WAN and downstream LAN devices to the RJ-45 ports, ensuring PoE-powered devices are connected to ports that supply power according to IEEE 802.3af/at standards. Access the router’s management interface to configure network parameters, user limits, VLANs and logging options; use the provided storage for local log retention and firmware updates. Verify cable types and link speeds for each connected device and monitor power draw to stay within the typical power consumption profile.

Recommendations

For reliable operation, place the router in a well-ventilated area away from heat sources, use Cat5e or higher cabling for Gigabit links, and schedule periodic backups of configuration and logs stored on the internal 256 GB storage to external systems if long-term retention is required.
