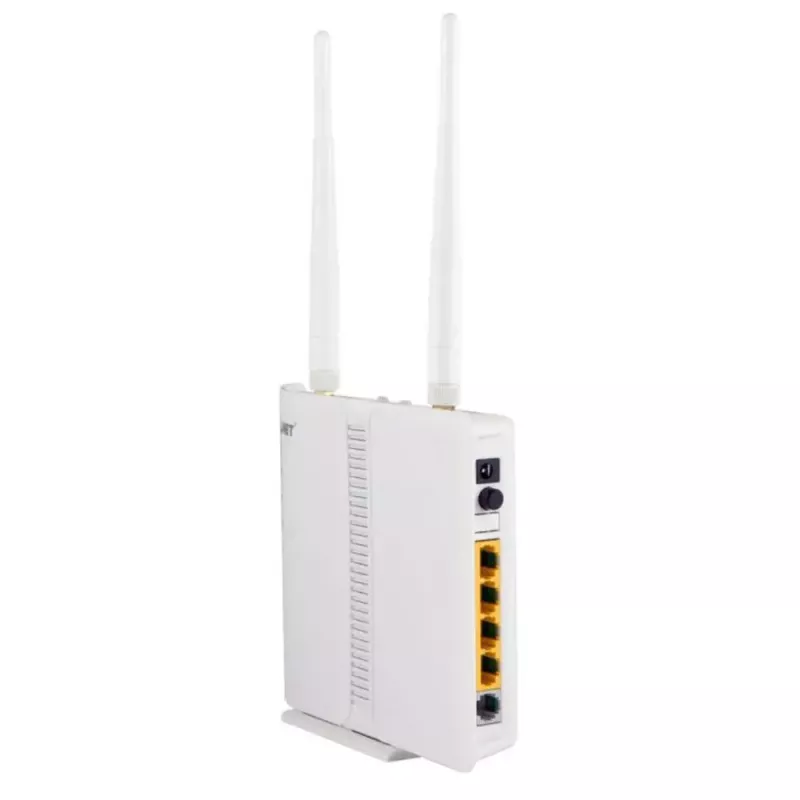

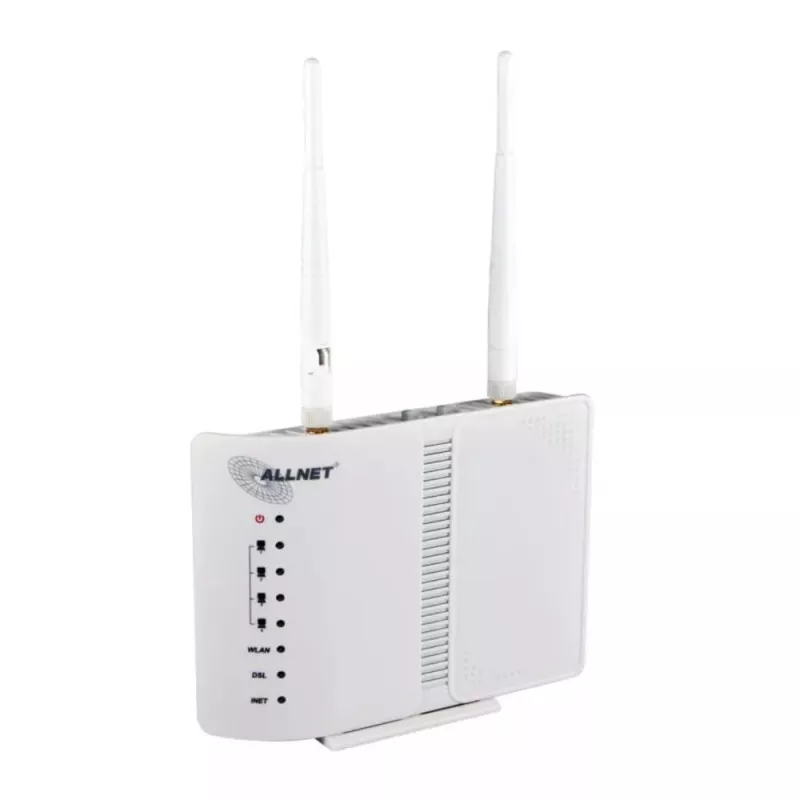

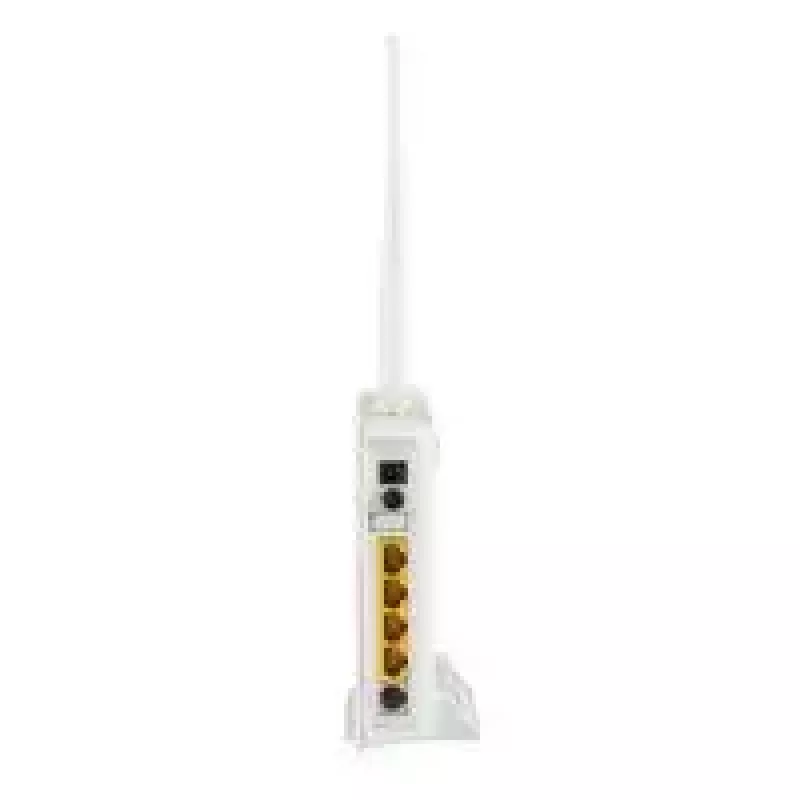

Router inalámbrico ALLNET ALL-WR02400N Wi-Fi 4 802.11n

The ALLNET ALL-WR02400N is a combined ADSL2+ modem and Wi‑Fi 4 (802.11n) wireless router offering up to 300 Mbit/s wireless throughput and Fast Ethernet LAN connectivity. It integrates an ADSL2+ modem (supports Annex B & J) so no external modem is required. The device is suited for home or small office use and includes two external antennas, four LAN ports and multiple security features for stable, continuous internet access.

Advantages

Integrated ADSL2+ modem enables download speeds up to 24 Mbit/s (depending on provider) and up to 3.5 Mbit/s upload with Annex J. Wireless N technology provides wireless transfers up to 300 Mbit/s. The router includes a powerful SPI firewall with DoS protection, NAT, MAC and packet filters, DMZ and WPA2 encryption for secure connections. Low power consumption (about 5 W) and LED status indicators at the front allow simple continuous operation and quick visual status checks.

Suitable for

• Home internet access with ADSL2+ connections
• Small office networks requiring Fast Ethernet and wireless coverage
• Streaming HD video and audio, IPTV and online gaming
• Voice over IP (VoIP) services

Key specifications

• Model: ALLNET ALL-WR02400N
• Wi‑Fi standard: Wi‑Fi 4 (802.11n); also supports 802.11b/g
• WLAN max data rate: 300 Mbit/s
• ADSL standard: ADSL2+/support for Annex B & J
• LAN: 4 × Fast Ethernet (10/100 Mbps)
• Antennas: 2 external
• Security: WPA2‑AES, WPA‑PSK, SPI firewall, DoS protection, NAT, MAC/packet filter, DMZ
• Power consumption: approx. 5 W
• Colour: White

How to use

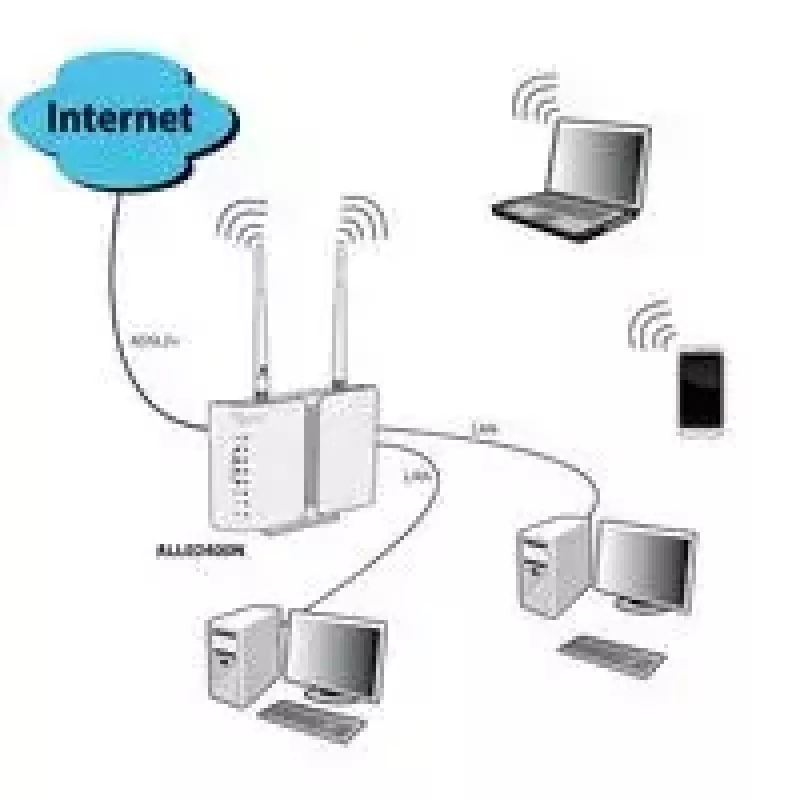

Connect the device to the telephone line using the built‑in ADSL2+ modem and attach the LAN cables to the Fast Ethernet ports for wired devices. For wireless clients, select the SSID and authenticate using the configured WPA2 key. Configure internet access, wireless settings and security via the router's web interface from any device and operating system. Use the front LEDs to verify power, WAN and LAN/wireless status during setup and operation.

Recommendations

Place the router in a central, elevated location for best wireless coverage; keep it away from large metal objects and other electronic equipment that may cause interference. Ensure firmware is up to date and use WPA2 with a strong password to maintain network security.
