Router SBC ALLNET FriendlyELEC NanoPi R5C Dual 2.5GbE, 4GB RAM, 32GB eMMC, Wi-Fi 5, carcasa de metal R5C_4G_32mmc_combo_wifi

Dual 2.5 Gigabit Ethernet ports powered by the Rockchip RK3568 make this compact board a formidable foundation for high-throughput network applications.

Overview

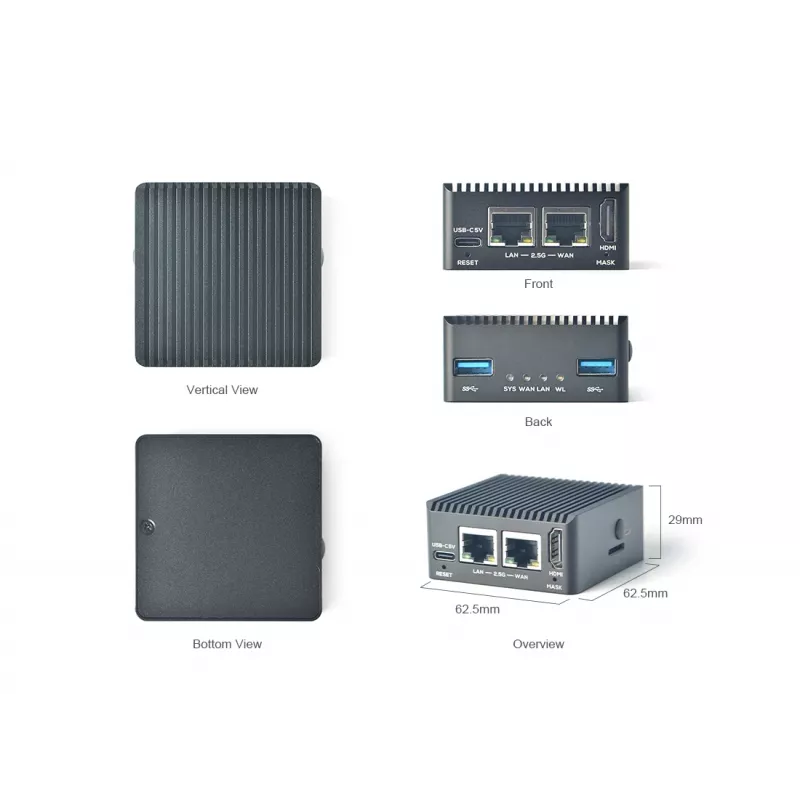

The NanoPi R5C is a single-board computer and mini router built around a quad-core ARM Cortex-A55 processor clocked at up to 1.8 GHz. It includes 4GB of LPDDR4X memory and 32GB of eMMC storage, with an M.2 slot for NVMe SSD expansion. Wi-Fi 5 connectivity is provided via an included M.2 module with dual antennas, and the board ships with a passive metal case for cooling and protection.

What stands out

• Two 2.5GbE ports for high-speed wired networking
• Quad-core Cortex-A55 with Mali-G52 GPU
• 4GB LPDDR4X RAM and 32GB eMMC onboard
• M.2 2280 slot supports NVMe SSD or Wi-Fi module
• HDMI 2.0 output up to 4K@60Hz
• USB 3.0 and USB 2.0 Type-A ports
• RTC with battery connector
• Metal case and Wi-Fi module included

Technical details

• SoC: Rockchip RK3568
• CPU: Quad-core ARM Cortex-A55 up to 1.8 GHz
• GPU: ARM Mali-G52-2EE
• RAM: 4GB LPDDR4X
• Storage: 32GB eMMC, MicroSD slot, M.2 2280 (PCIe 3.0 x2)
• Ethernet: 2x 2.5GbE (Realtek RTL8125B)
• Wireless: Wi-Fi 5 (802.11ac) via M.2 module, dual antennas
• USB: 1x USB 3.0 Type-A, 1x USB 2.0 Type-A
• Video: HDMI 2.0 up to 4K@60Hz
• Power: USB-C, 5V/3A
• OS Support: FriendlyWrt, OpenWrt, Debian, Ubuntu Core
• Cooling: Passive (metal case)
• Form Factor: SBC / Mini Router

Our verdict

The NanoPi R5C delivers exceptional networking performance in a compact, passively cooled package, ideal for custom router and edge computing projects.
