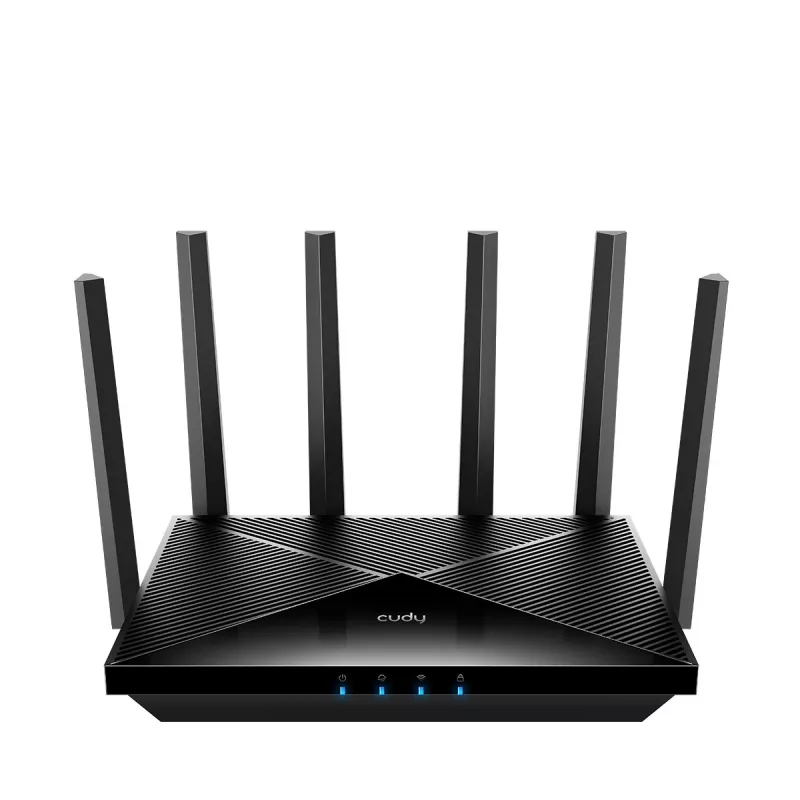

Router Wi-Fi Cudy BE6500 Gigabit dual band Wi-Fi 7 (802.11be), 2,4/5 GHz, 4x Gigabit LAN, ARM Quad-Core 2 GHz

Cudy BE6500 is a Gigabit dual-band Wi‑Fi 7 (802.11be) wireless router designed for home and small office networks. It provides maximum wireless data rates up to 688 Mbps on the 2.4 GHz band and 5765 Mbps on the 5 GHz band, and is powered by an ARM Cortex‑A7 quad‑core 2 GHz processor. The router includes four Gigabit Ethernet LAN ports, one Gigabit WAN port, an AC adapter and an RJ‑45 LAN cable. It supports IPv4 and IPv6, DHCP, PPPoE and static IP configuration.

Advantages

The device offers high throughput with Wi‑Fi 7 technology and dual‑band operation, hardware performance from a 2 GHz quad‑core processor, and multiple wired Gigabit ports for reliable LAN connections. Built‑in features include OFDMA and MU‑MIMO for improved multi‑device performance, WPA2 security and firewall protections (SPI, DoS), plus guest access, parental controls and DMZ support. Compact dimensions and included power and cable accessories simplify installation.

Suitable for

• Home internet access and streaming
• Small office networking and file sharing
• Multiple simultaneous devices and smart home setups
• Gaming and low‑latency applications on wired connections

Key specifications

• Wireless standard: Wi‑Fi 7 (802.11be), dual‑band (2.4 GHz / 5 GHz)
• Maximum data rate: 688 Mbps (2.4 GHz), 5765 Mbps (5 GHz)
• Processor: ARM Cortex‑A7 quad‑core, 2 GHz

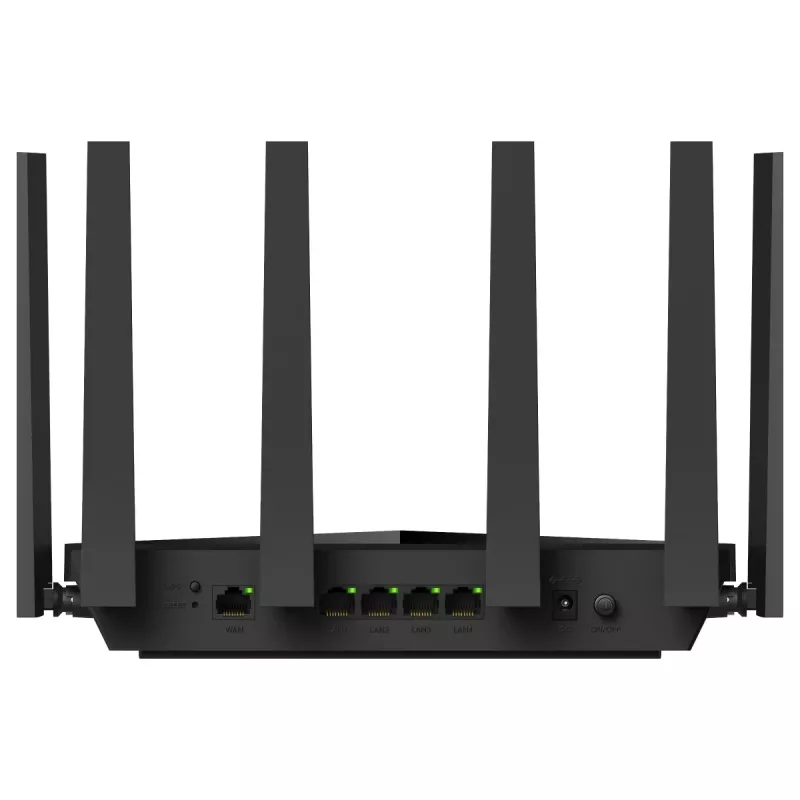

• Ethernet: 4 × Gigabit LAN ports, 1 × Gigabit WAN (RJ‑45)
• Power input: AC 100–240 V, 50/60 Hz; DC output 12 V, 1.5 A; max power consumption 17 W
• Security: WPA2, SPI and DoS firewall, guest network, parental control, DMZ
• Management & features: OFDMA, MU‑MIMO, WPS button, reset button, wireless statistics
• Environmental limits: operating temperature 0–40 °C, storage −40–70 °C, humidity 10–90% RH
• Physical dimensions and weight: 253 × 152.5 × 48.2 mm, 580 g

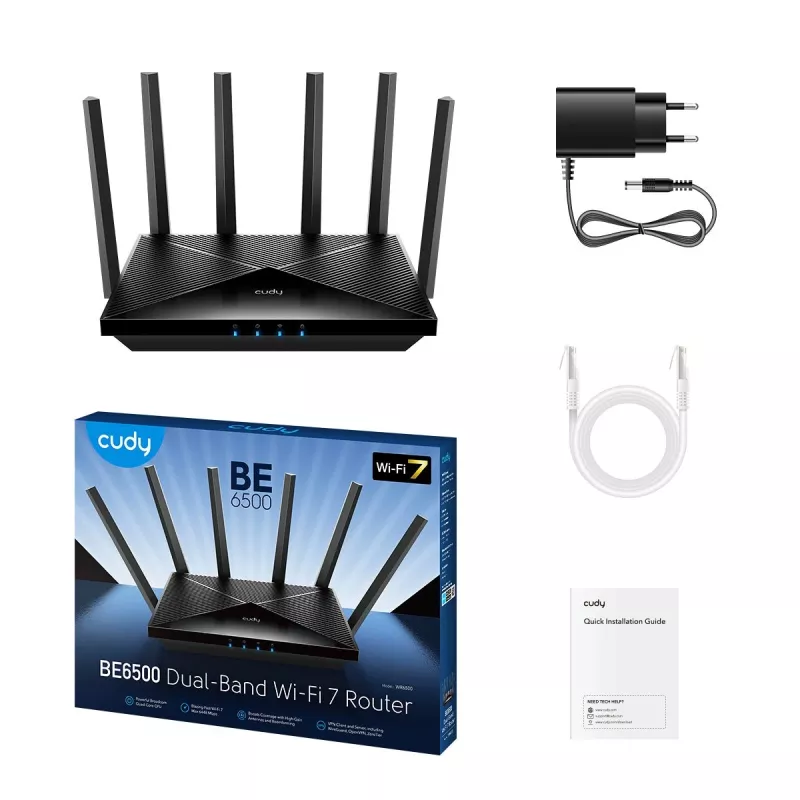

• Included accessories: AC adapter and LAN (RJ‑45) cable

How to use

Connect the router's DC‑in to the supplied AC adapter and plug it into a mains outlet (100–240 V, 50/60 Hz). Use an Ethernet cable to connect the WAN port to your modem or internet source and connect devices to the LAN ports or to the 2.4 GHz / 5 GHz Wi‑Fi networks. Configure network settings via the router's web interface or mobile app, selecting the desired connection type (DHCP client, DHCP server, PPPoE or static IP) and set wireless SSIDs and security (WPA2). Use the WPS button for quick device pairing or the reset button to restore factory defaults.

Recommendations

Place the router centrally and elevated for best wireless coverage, keep firmware updated, enable WPA2 and firewall features, and avoid placing the unit near large metal objects or other electronics that may cause interference. Do not dismantle the unit yourself to avoid risk of electric shock.
