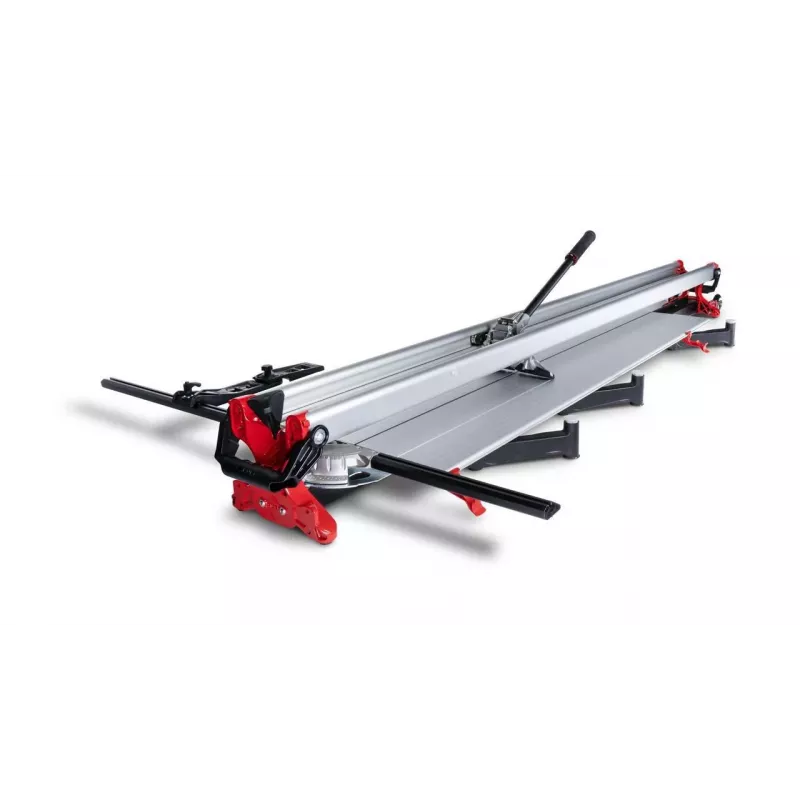

RUBI Boulder TZ-1800 cortadora manual de azulejos 1800 mm

The RUBI Boulder TZ-1800 is a professional manual tile cutter designed for straight and diagonal cutting of ceramic, porcelain, stoneware, and extruded tiles up to 1800 mm in length. With a robust breaking power of 1500 kg and a progressive breaking system, it ensures clean, precise cuts on tiles from 3 to 21 mm thick. The double steel guides are chrome-plated, rectified, and calibrated for accuracy and durability, while the high-strength aluminum base provides stability. The ergonomic soft-grip handle and integrated transport wheels make it easy to maneuver on the job site.

Advantages

This cutter offers exceptional cutting capacity and precision, thanks to its swivel square with central pivot for accurate diagonal cuts. The adjustable height system accommodates different material thicknesses, and the lateral stop enables repetitive cuts for increased efficiency. Included are 8 mm and 18 mm EXTREME scoring wheels, compatible with wheels from Ø 8 to 22 mm, ensuring versatility for various tile types.

Suitable for

• Ceramic tiles
• Porcelain tiles
• Stoneware tiles
• Extruded tiles

Key specifications

• Max. Straight Cutting Length: 1800 mm
• Max. Diagonal Cutting Length: 1270 x 1270 mm
• Max. Cutting Thickness: 3-21 mm
• Breaking Power: 1500 kg
• Scoring Wheel Diameter Compatibility: Ø 8-22 mm
• Included Scoring Wheels: 8 mm and 18 mm EXTREME
• Guide System: Double steel guides, chrome-plated, rectified, and calibrated
• Base Material: High-strength aluminum
• Handle Type: Ergonomic, large, soft-grip
• Measurement System: Swivel square with central pivot
• Transport Features: Integrated wheels and handle
• Adjustable Height System: Yes
• Cutting Type: Manual
• Breaking System: Progressive, powerful
• Lateral Stop: Adjustable

Recommendations

For best results, use the appropriate scoring wheel for the tile type and ensure the tile is properly supported during cutting. Regularly clean and lubricate the guides to maintain smooth operation.
