RUBI TZ-1300 Cortador Manual de Azulejos 1300mm

The RUBI TZ-1300 is a professional manual tile cutter designed for precision cutting of ceramic, porcelain, glazed stoneware, and extruded stoneware tiles. With a maximum straight cutting length of 1300 mm and diagonal cutting capacity up to 900 x 900 mm, it is ideal for large-format tiles. The robust construction features a reinforced aluminum base and a double chrome-plated steel guide system for accuracy and durability.

Advantages

High breaking power of 1500 kg ensures clean cuts through thick tiles up to 21 mm. The swiveling square with central pivot allows precise angle cuts. Ergonomic soft-grip handle reduces fatigue during repetitive use. Integrated wheels and handle make transport easy. Includes two EXTREME scoring wheels (Ø8 mm and Ø18 mm) for versatile cutting.

Suitable for

• Ceramic tiles
• Porcelain tiles
• Glazed stoneware
• Extruded stoneware

Key specifications

• Max. straight cutting length: 1300 mm
• Max. diagonal cutting length: 900 x 900 mm
• Max. cutting thickness: 3 - 21 mm
• Breaking power: 1500 kg
• Scoring wheel compatibility: Ø8 - Ø22 mm
• Included scoring wheels: Ø8 mm and Ø18 mm EXTREME
• Guide system: Double guide, chrome-plated, rectified, calibrated steel
• Base material: Reinforced aluminum
• Measurement system: Swiveling square with central pivot
• Cutting action: Push-scoring
• Adjustable height system: Yes
• Lateral stop: Yes
• Transport features: Integrated wheels and handle
• Power source: Manual
• Handle type: Ergonomic soft-grip

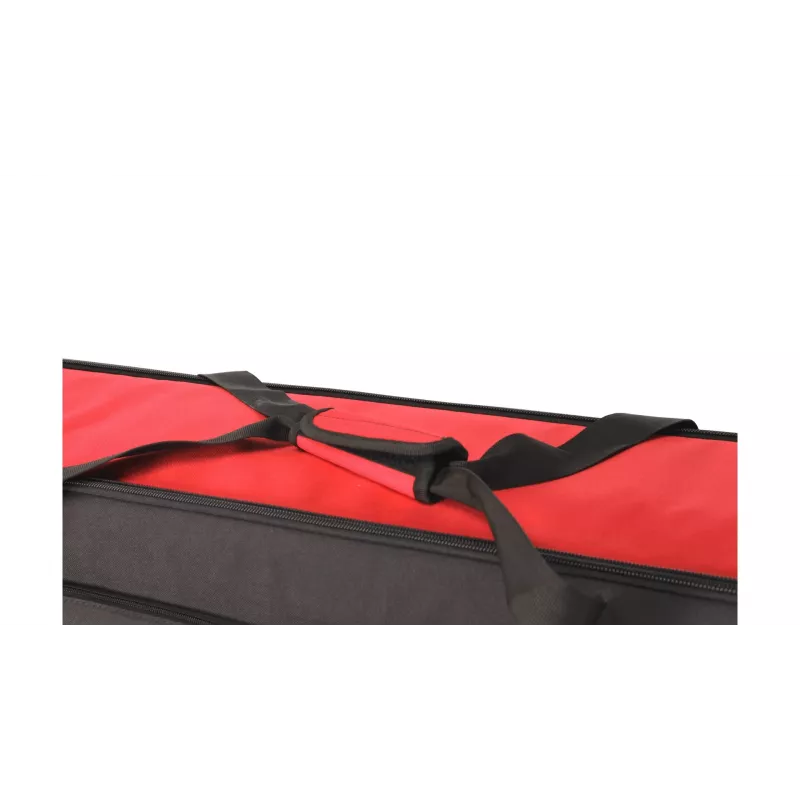

• Included accessories: Textile transport bag

Recommendations

For best results, use the appropriate scoring wheel for the tile type and apply steady pressure during scoring. The TZ-1300 is a reliable choice for professionals requiring high precision and durability.
