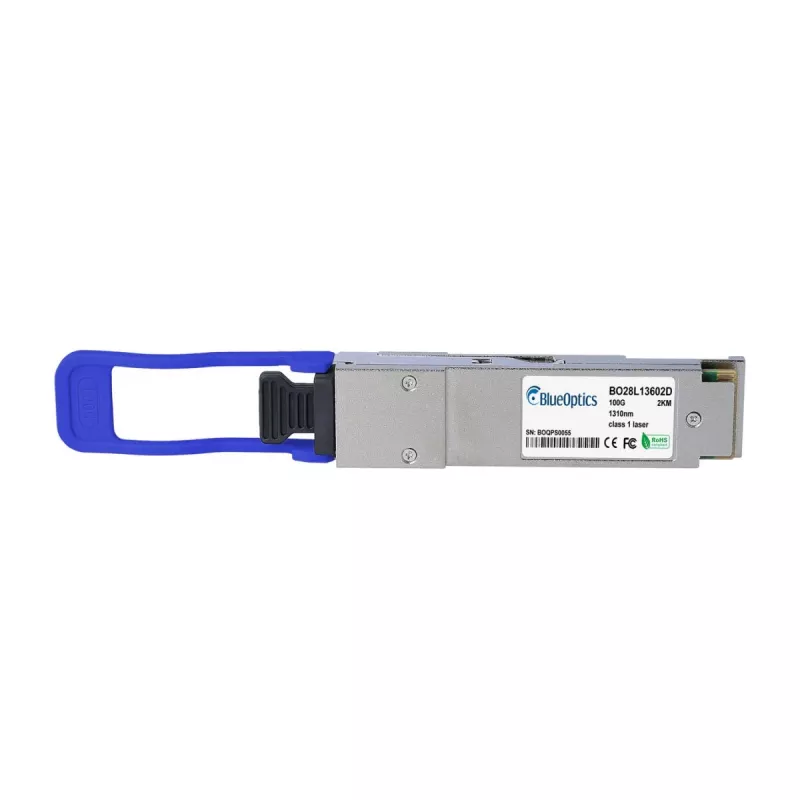

Ruckus 100G-QSFP28-CWDM4-2KM compatible BlueOptics QSFP28 BO28L13602D

The BlueOptics BO28L13602D is a high-performance 100G QSFP28 optical transceiver designed for compatibility with Ruckus networking equipment. It enables 100 Gigabit Ethernet connectivity over single-mode fiber (SMF) at distances up to 2 km, utilizing CWDM4 technology with four wavelengths (1271nm, 1291nm, 1311nm, 1331nm). This hot-swappable module supports Digital Diagnostic Monitoring (DDM) and is compliant with IEEE 802.3bm, SFF-8665, and SFF-8636 standards.

Advantages

Reliable 100G connectivity for data center and enterprise networks. Low power consumption under 4.5W ensures energy efficiency. Hot-pluggable design simplifies installation and maintenance. MSA compliant for broad interoperability.

Suitable for

• Data center interconnects
• Enterprise core and aggregation networks
• High-speed storage area networks
• Telecommunications infrastructure

Key specifications

• Data Rate: 100 Gigabit Ethernet
• Form Factor: QSFP28
• Optical Technology: 100GBASE-CWDM4
• Max Reach: 2 km (1.24 miles)
• Fiber Type: Single-mode Fiber (SMF)
• Connector Type: Duplex LC
• Wavelengths: 1271nm, 1291nm, 1311nm, 1331nm
• DDM/DOM Support: Yes
• Power Consumption: < 4.5 W
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Standards Compliance: IEEE 802.3bm, SFF-8665, SFF-8636
• Hot-Swappable: Yes
• Power Supply: 3.3 V
• Optical Components: 4x 25G DFB Lasers
• Protocol: Ethernet
• Cable Type Recommendation: OS2 (G.652D)
• Vendor Part Number: BO28L13602D
• MTBF: > 500,000 hours

Recommendations

For optimal performance, use with OS2 single-mode fiber and ensure compatibility with your Ruckus switch or router. This transceiver is a cost-effective alternative to OEM modules.
