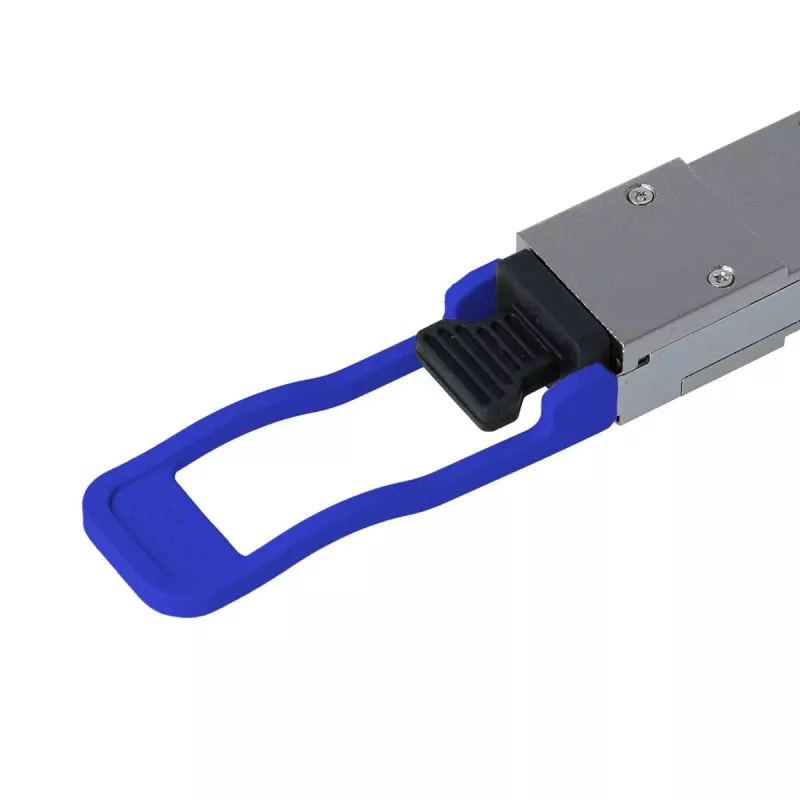

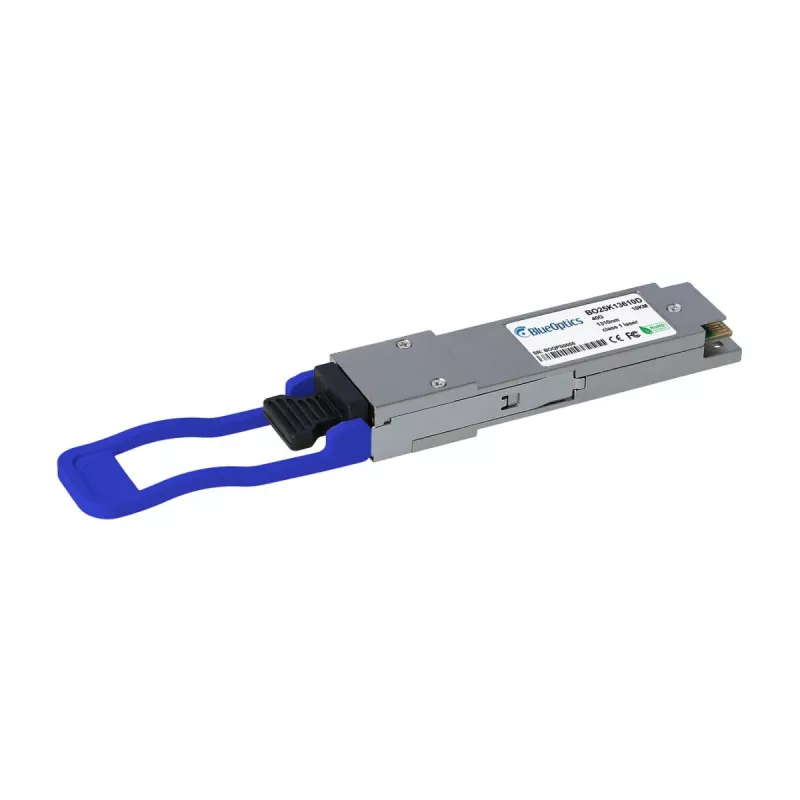

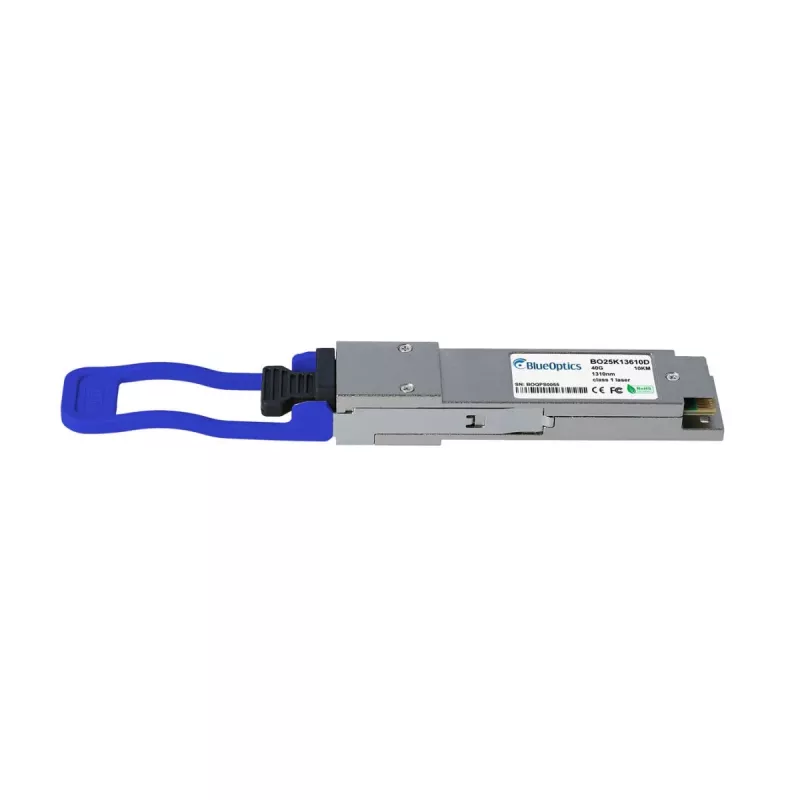

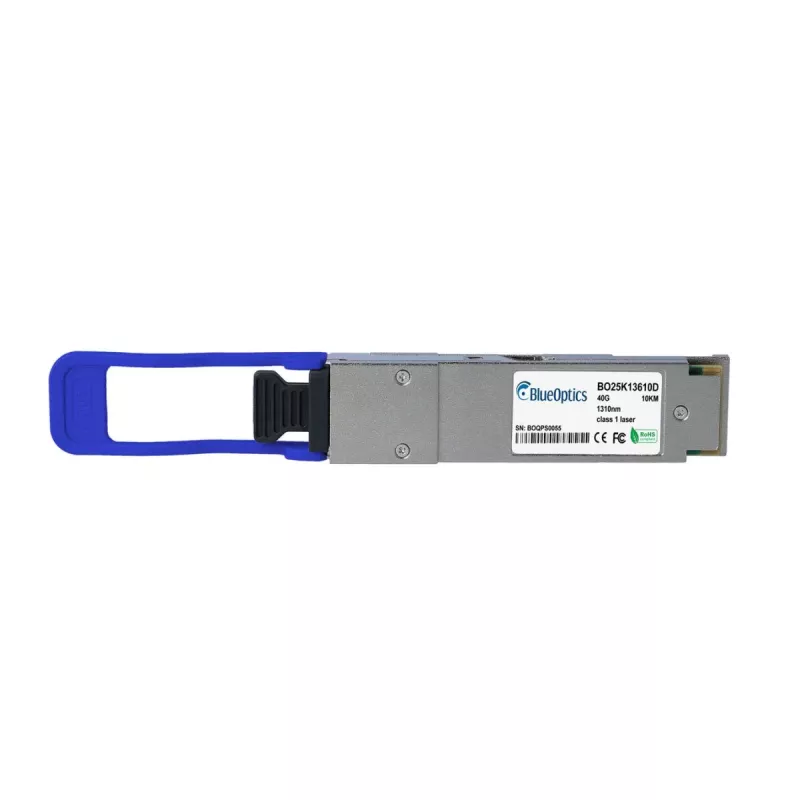

Ruckus 40G-QSFP-LR4-INT Compatible con BlueOptics Transceptor QSFP+ BO25K13610D

The BlueOptics BO25K13610D is a high-performance QSFP+ transceiver designed for 40 Gigabit Ethernet applications. It is fully compatible with Ruckus 40G-QSFP-LR4-INT equipment, ensuring seamless integration into existing networks. This transceiver supports single-mode fiber (SMF) and delivers reliable connectivity over distances up to 10 km.

Advantages

This transceiver offers cost-effective, high-speed connectivity with low power consumption (<3.5 W) and hot-swappable capability, minimizing network downtime. It supports Digital Diagnostic Monitoring (DDM) for real-time performance tracking.

Suitable for

• Data center interconnects
• Enterprise network backbone
• Telecommunications infrastructure
• High-performance computing environments

Key specifications

• Module Type: QSFP+
• Data Rate: 40 Gigabit Ethernet (41.25 Gbps max)
• Wavelengths: 1271nm, 1291nm, 1311nm, 1331nm (CWDM)
• Max Distance: 10 km over single-mode fiber
• Connector: Duplex LC
• DDM/DOM Support: Yes
• Hot-Swappable: Yes
• Standards: IEEE 802.3ba 40GBASE-LR4
• Power Consumption: <3.5 W
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• MTBF: >500,000 hours
• Certifications: CE, FCC, RoHS, ISO9001

Recommendations

For optimal performance, use with OS2 single-mode fiber cables and ensure proper handling to avoid damage to the optical ports. This transceiver is ideal for upgrading network infrastructure to 40G speeds.
