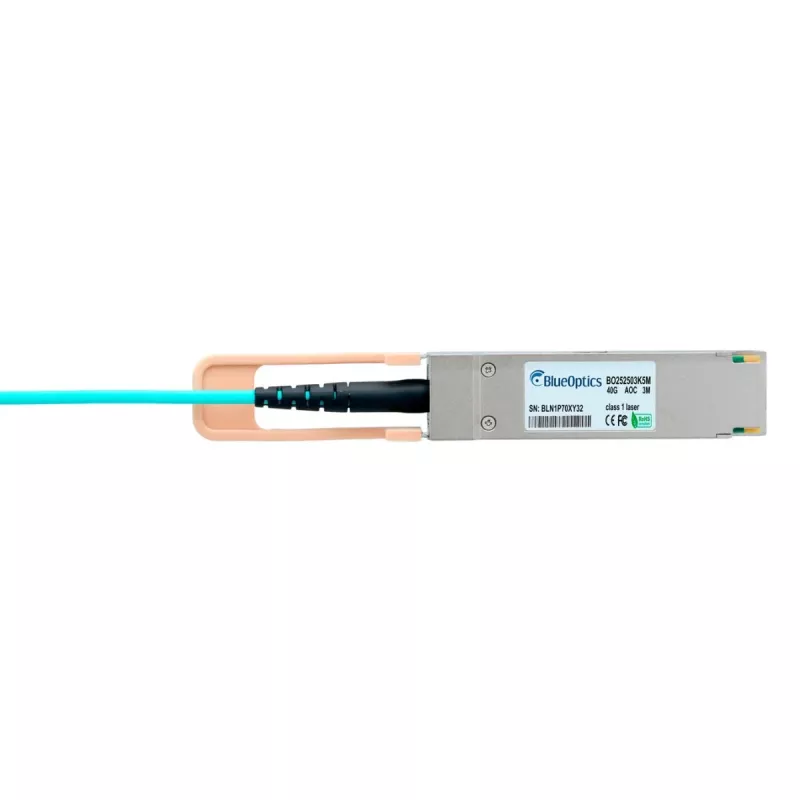

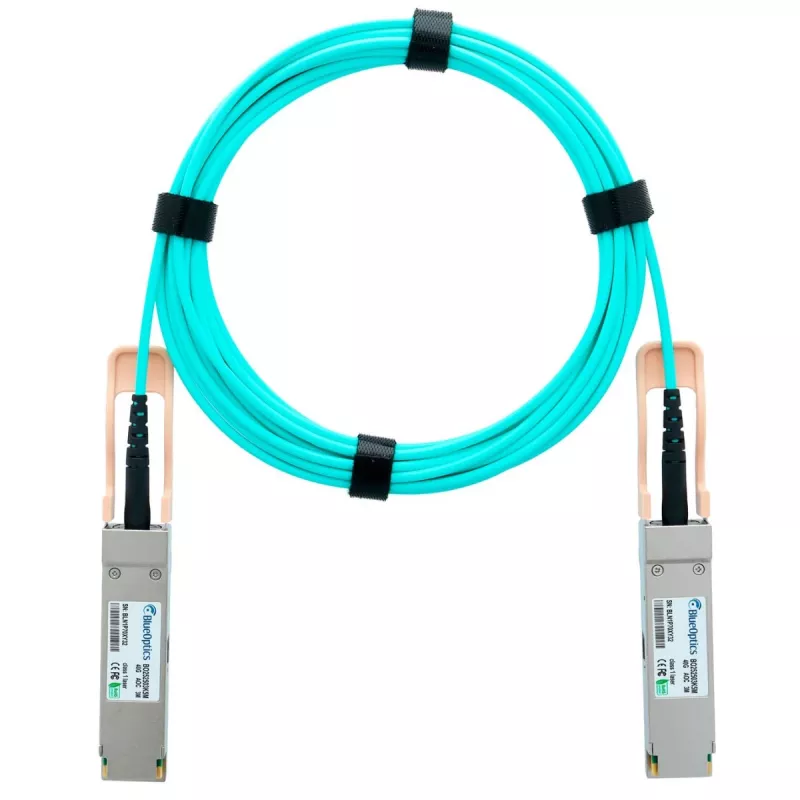

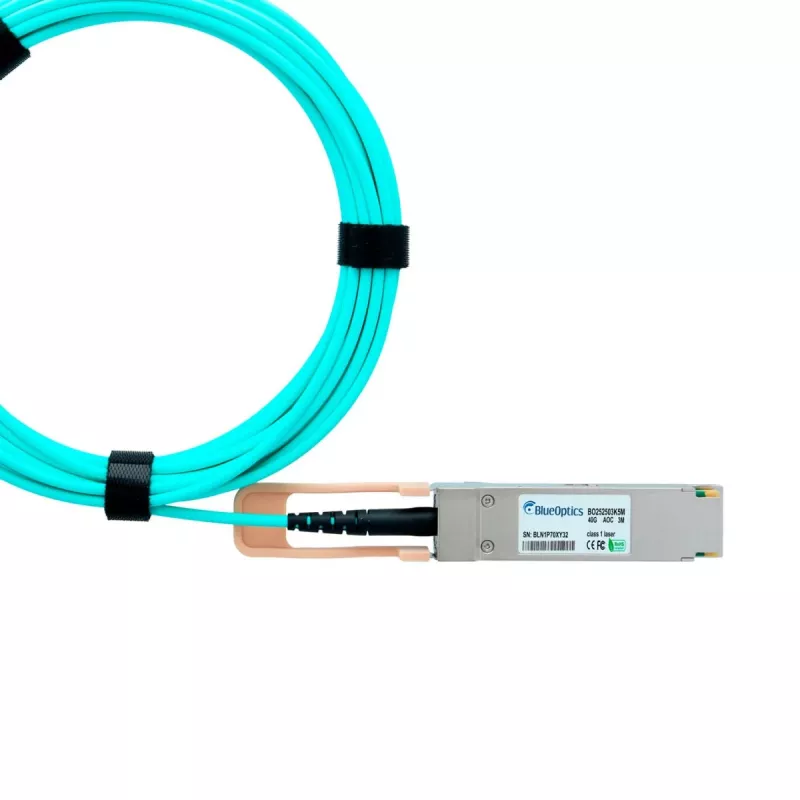

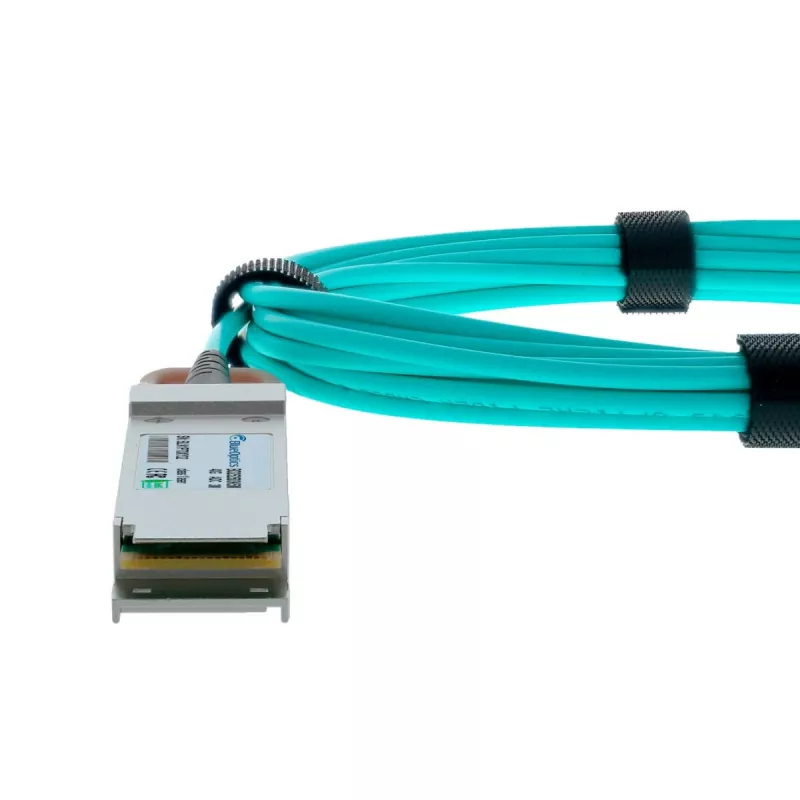

Ruckus 40G-QSFP-QSFP-AOC-2001 Compatible con BlueOptics AOC QSFP BO252503K20M

The BlueOptics BO252503K20M is a high-performance active optical cable (AOC) designed for 40 Gigabit Ethernet connectivity. It is fully compatible with Ruckus 40G-QSFP-QSFP-AOC-2001, providing a reliable and cost-effective solution for data center and enterprise networks. With a length of 20 meters, this QSFP+ to QSFP+ cable supports data rates up to 40 Gbps and features integrated multi-mode fiber for optimal signal integrity.

Advantages

This AOC offers low power consumption (<1.5W per end), hot-swappable capability, and digital diagnostic monitoring (DDM) for real-time performance tracking. Its MSA-compliant design ensures interoperability with standard QSFP+ ports, while the durable PVC jacket provides protection in various environments.

Suitable for

• Data center interconnects
• Enterprise network backbone
• High-performance computing clusters
• 40GBASE-SR4 and InfiniBand QDR/FDR/EDR applications

Key specifications

• Product Type: Active Optical Cable (AOC)
• Data Rate: 40 Gbps
• Connector Type: QSFP+ to QSFP+
• Cable Length: 20 meters
• Fiber Type: Multi-mode (integrated)
• Power Consumption: <1.5W per end
• Supply Voltage: 3.3V
• Operating Temperature: 0°C to 70°C
• Compliance: MSA, RoHS, CE, FCC
• Jacket Material: PVC
• Cable Color: Black

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible QSFP+ ports. This cable is ideal for short-range, high-speed connections within racks or between adjacent racks.
