Broca escalonada RUKO HSS-Co 5% 7/8 pulgadas - 1 1/8 pulgadas (22,2 - 28,6 mm) vástago de 3 caras

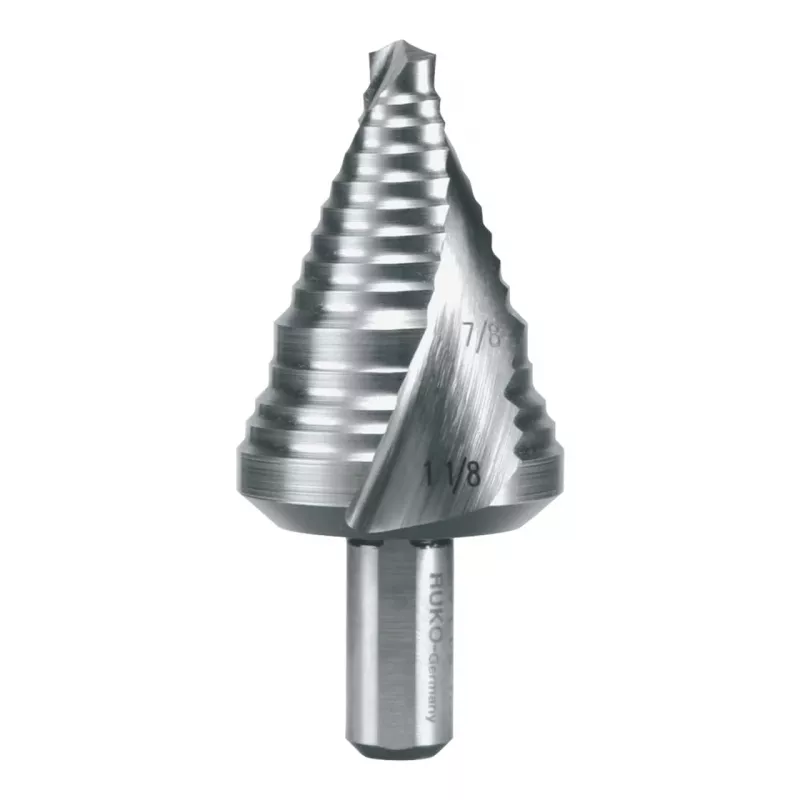

Step drill bit made from HSS-Co 5% high-speed steel with 5% cobalt for drilling, deburring, and chamfering in steel, stainless steel, non-ferrous metals, plastics, and sheet metal up to 4 mm thick. The 130° split point provides precise centering and reduces walking.

Advantages

Three cutting steps (7/8", 1", 1 1/8") allow multiple hole diameters without tool changes. The 3-flat shank prevents slipping in the drill chuck. Cobalt alloying increases heat resistance and tool life.

Suitable for

• Steel
• Stainless steel
• Non-ferrous metals
• Plastics
• Sheet metal

Key specifications

• Drill bit type: Step drill bit
• Material: HSS-Co 5%
• Diameter range: 7/8" - 1 1/8" (22.2 - 28.6 mm)
• Number of steps: 3
• Step diameters: 7/8" (22.2 mm), 1" (25.4 mm), 1 1/8" (28.6 mm)
• Shank type: 3-Flat shank
• Shank diameter: 10 mm
• Total length: 95 mm
• Step length: 50 mm
• Point angle: 130° split point
• Coating: Uncoated (bright finish)
• Cutting direction: Right-hand cutting
• Standard: DIN 1412 C

Recommendations

Use with cutting oil on stainless steel and reduce speed for larger steps. The split point allows drilling without center punching on thin materials.
