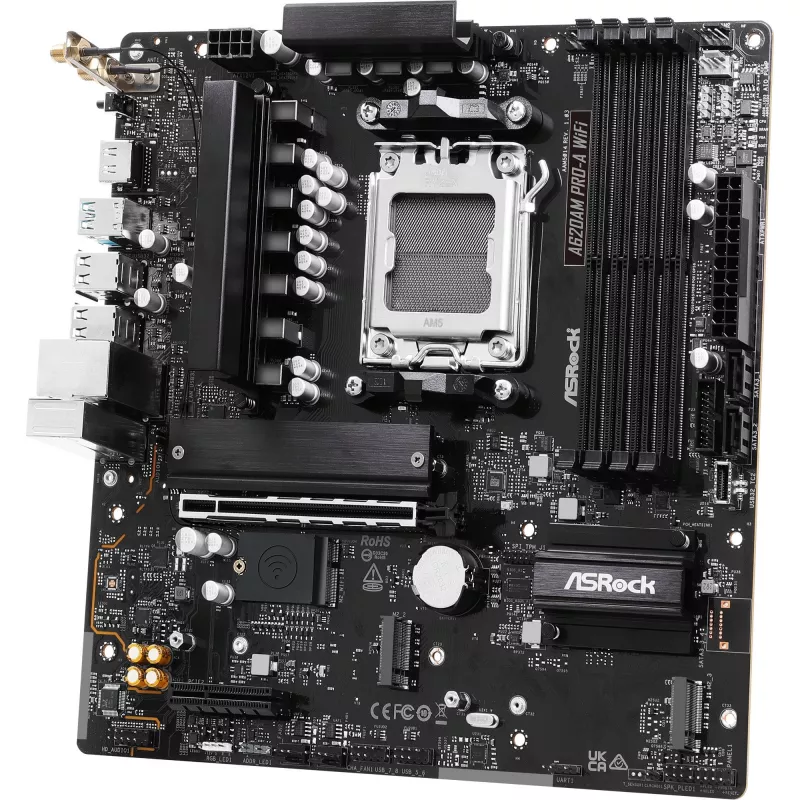

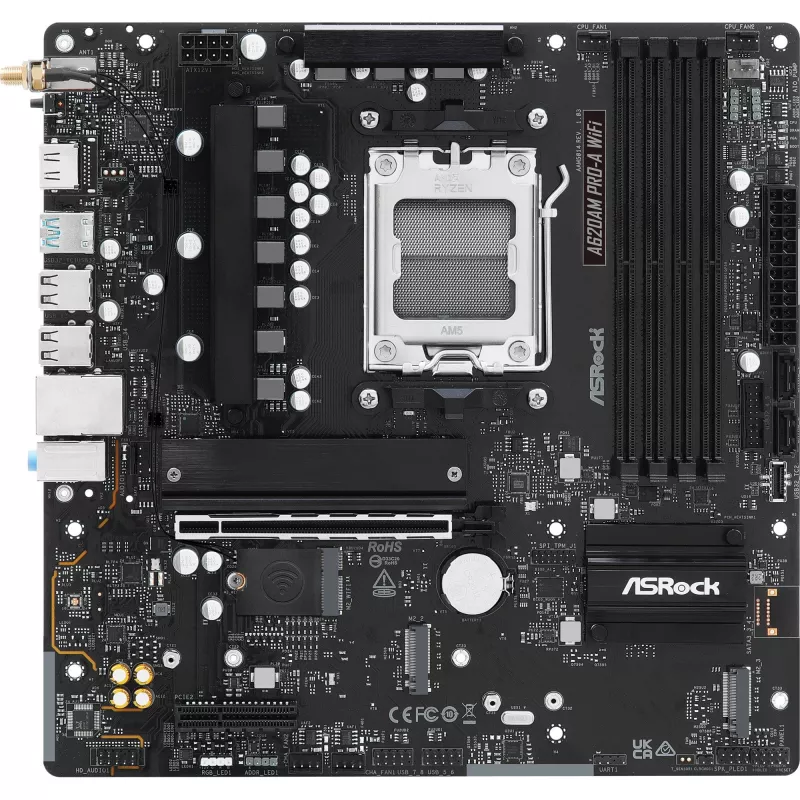

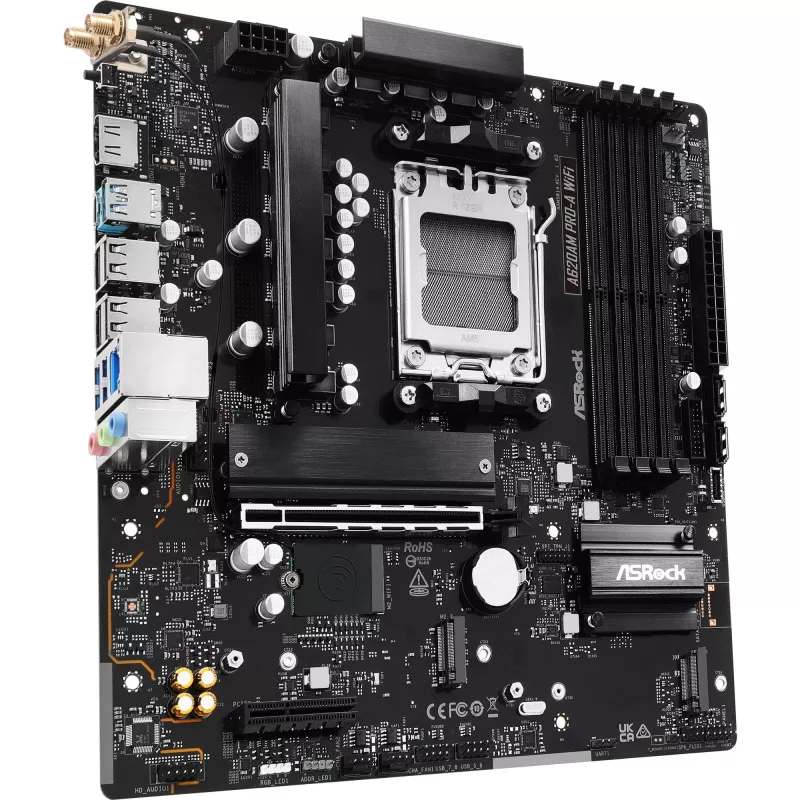

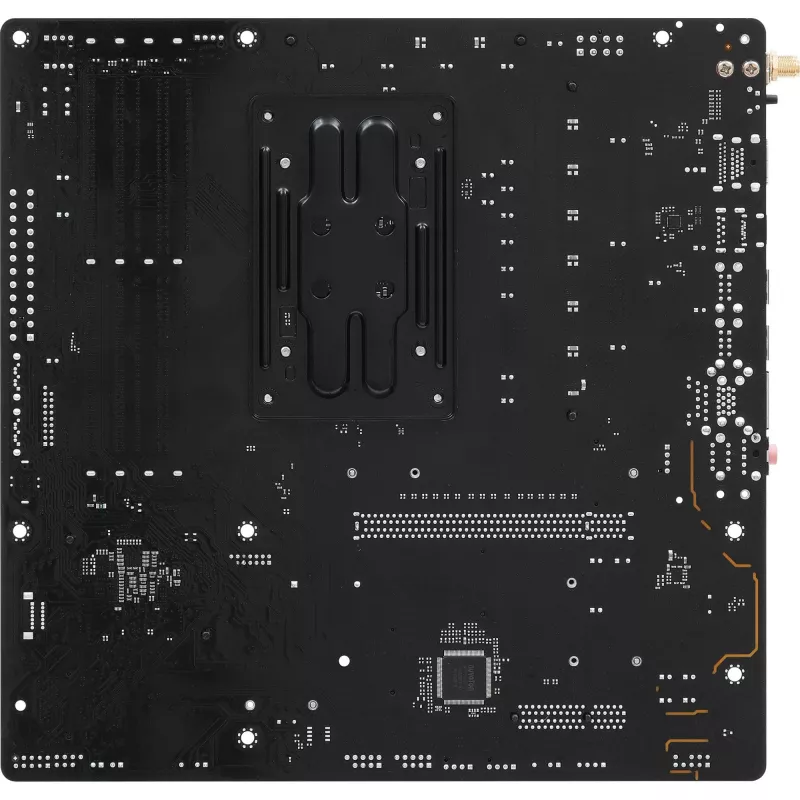

Placa base ASRock A620AM Pro-A WiFi AM5 mATX — AMD A620, socket AM5, DDR5 hasta 256 GB, Wi‑Fi 6E, 2.5Gb LAN, HDMI 2.1

The ASRock A620AM Pro-A WiFi is a micro-ATX motherboard with an AM5 CPU socket designed for AMD Ryzen 7000/8000/9000 Series processors. It supports DDR5 memory across four DIMM slots, offers onboard AMD RDNA 2 graphics via HDMI with up to 3840 x 2160 output resolution, and includes integrated Wi‑Fi and Bluetooth for wireless connectivity. The board provides multiple storage and peripheral interfaces including M.2, NVMe and SATA III, plus a variety of USB ports and a Gigabit LAN port.

Advantages

The compact micro-ATX form factor balances small-system compatibility with a broad set of features. Native AM5 socket support ensures compatibility with current AMD Ryzen desktop CPUs, while DDR5 memory support enables higher memory bandwidth. Integrated Wi‑Fi and Bluetooth reduce the need for additional expansion cards, and multiple storage interfaces (M.2/NVMe and SATA III) offer flexible options for fast and large-capacity drives. The inclusion of HDMI output and onboard RDNA 2 graphics enables display output without a discrete GPU for systems using APUs that provide integrated graphics.

Suitable for

• Compact gaming or productivity builds using AMD Ryzen 7000/8000/9000 CPUs
• Home or office PCs requiring onboard Wi‑Fi and Bluetooth
• Systems needing a mix of NVMe M.2 and SATA III storage
• Builds where integrated graphics (HDMI) are sufficient

Key specifications

• Form factor: micro-ATX
• CPU socket: AM5 (supports AMD Ryzen 7000/8000/9000 Series)
• Memory type: DDR5, 4 × DIMM slots
• Onboard graphics: AMD RDNA 2, HDMI output (up to 3840 × 2160)
• Storage interfaces: M.2, NVMe, SATA III
• USB: 4 × USB 2.0, 3 × USB 3.2 Gen1 Type-A, 1 × USB 3.2 Gen1 Type-C

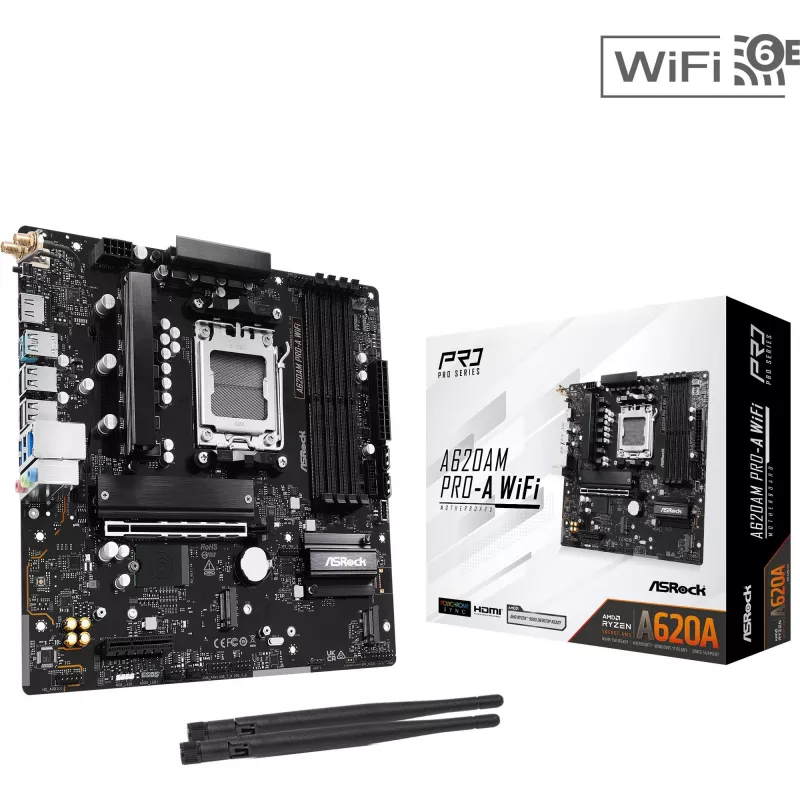

• Network: 1 × Gigabit Ethernet (RJ-45), integrated Wi‑Fi and Bluetooth; antenna included
• Audio: 7.1 channel onboard audio

How to use

Install the motherboard into a compatible micro-ATX case, following standard anti-static precautions. Mount an AM5 CPU and install DDR5 DIMMs into the four memory slots according to the motherboard manual for optimal channel configuration. Connect M.2 or SATA drives as needed, attach the included Wi‑Fi antenna, and connect power, front-panel headers and external peripherals to the relevant headers and ports. Use the HDMI port for video output if the chosen CPU/APU provides integrated graphics; otherwise install a discrete GPU in a compatible expansion slot.

Recommendations

For stable performance, use high-quality DDR5 modules matched to supported frequencies and consult the motherboard manual for memory population guidelines. Ensure BIOS is updated to the latest version for best CPU and device compatibility, and position the board in a case with adequate airflow when pairing with high-performance components.
