RUKO 237060LI terraja M6

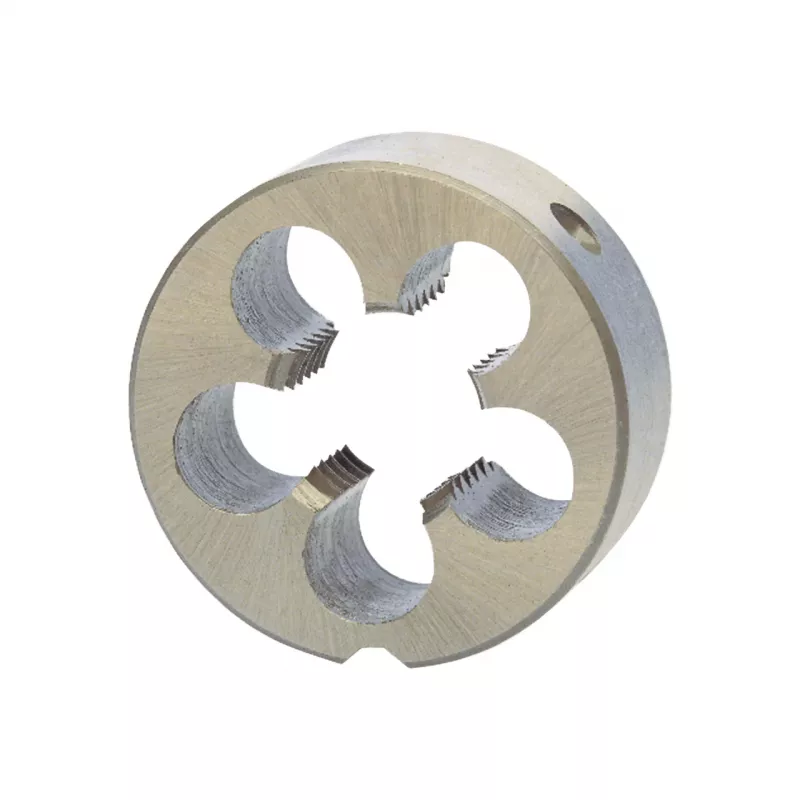

RUKO 237060LI – Threading die. For cutting external threads.

• Product type: Threading die
• Manufacturer article number: 237060LI
• SAP article number: 1000023537
• Thread size: M6
• Thread angle: 60°
• Material: HSS
• Coating: Uncoated
• Cutting direction: Left-hand
• Tolerance: ISO 2 6H
• DIN standard: 22568
• Thread pitch: 1,00 mm
• Outside diameter: 20.0 mm
• Thickness: 7.0 mm
• Net weight of the product: 10 g

Dimensions and net weight above describe the product; they do not establish shipping dimensions or gross weight with packaging.
