RUKO 237140LI Terraja M14

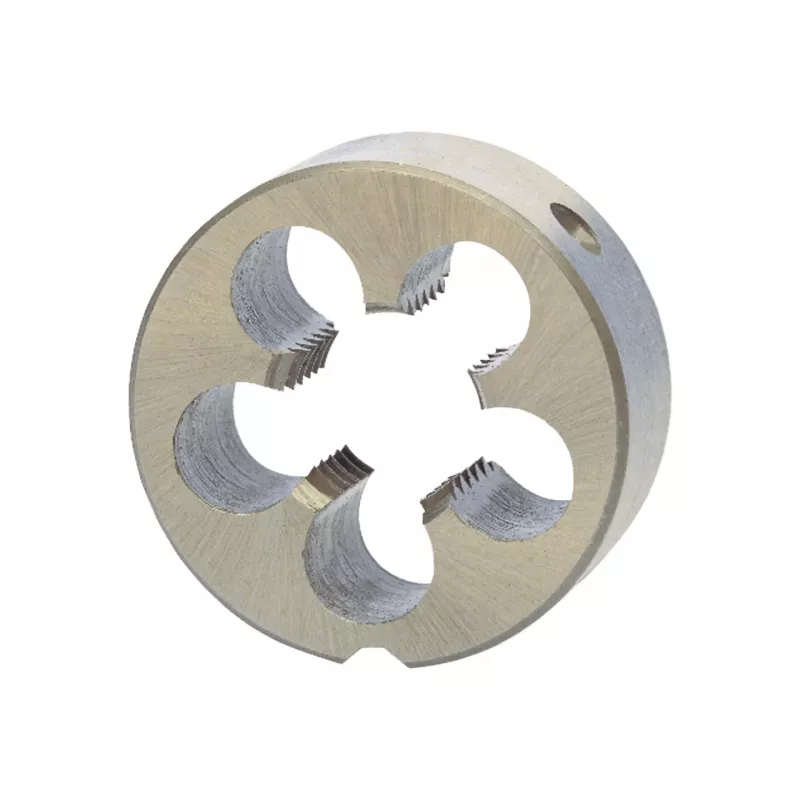

RUKO 237140LI – Threading die. For cutting external threads.

• Product type: Threading die
• Manufacturer article number: 237140LI
• SAP article number: 1000023568
• Thread size: M14
• Thread angle: 60°
• Material: HSS
• Coating: Uncoated
• Cutting direction: Left-hand
• Tolerance: ISO 2 6H
• DIN standard: 22568
• Thread pitch: 2,00 mm
• Outside diameter: 38.0 mm
• Thickness: 14.0 mm
• Net weight of the product: 75 g

Dimensions and net weight above describe the product; they do not establish shipping dimensions or gross weight with packaging.
