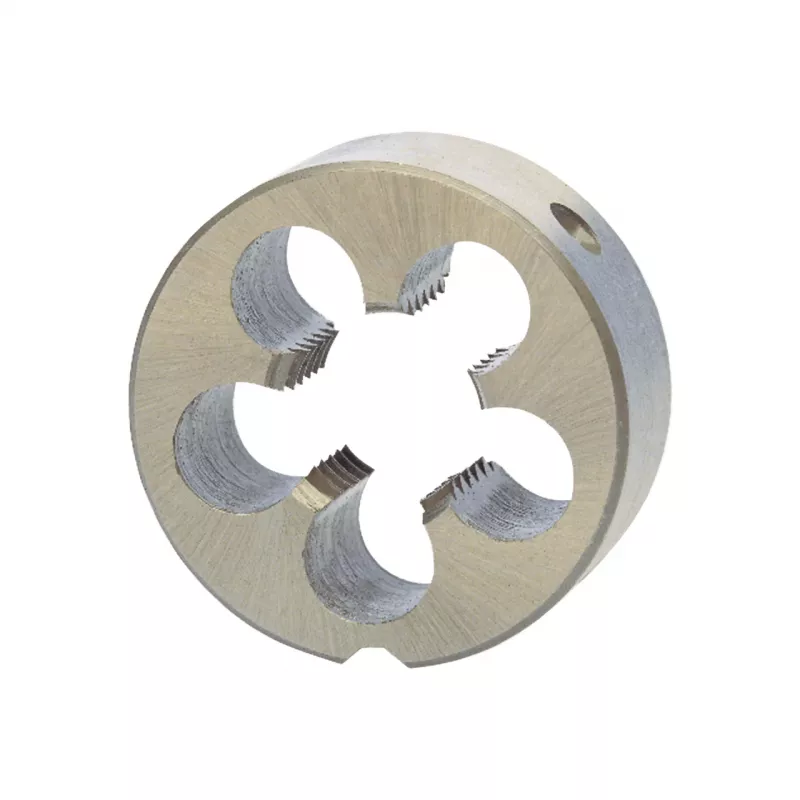

RUKO 240060UNC Terraja UNC n.º 6

RUKO 240060UNC – Threading die. For cutting external threads.

• Product type: Threading die
• Manufacturer article number: 240060UNC
• SAP article number: 1000023239
• Thread size: UNC Nr. 6
• Thread angle: 60°
• Material: HSS
• Coating: Uncoated
• Cutting direction: Right-hand
• Tolerance: 2A
• DIN standard: 22568
• Threads per inch: 32
• Outside diameter: 20.0 mm
• Thickness: 7.0 mm
• Net weight of the product: 11 g

Dimensions and net weight above describe the product; they do not establish shipping dimensions or gross weight with packaging.
