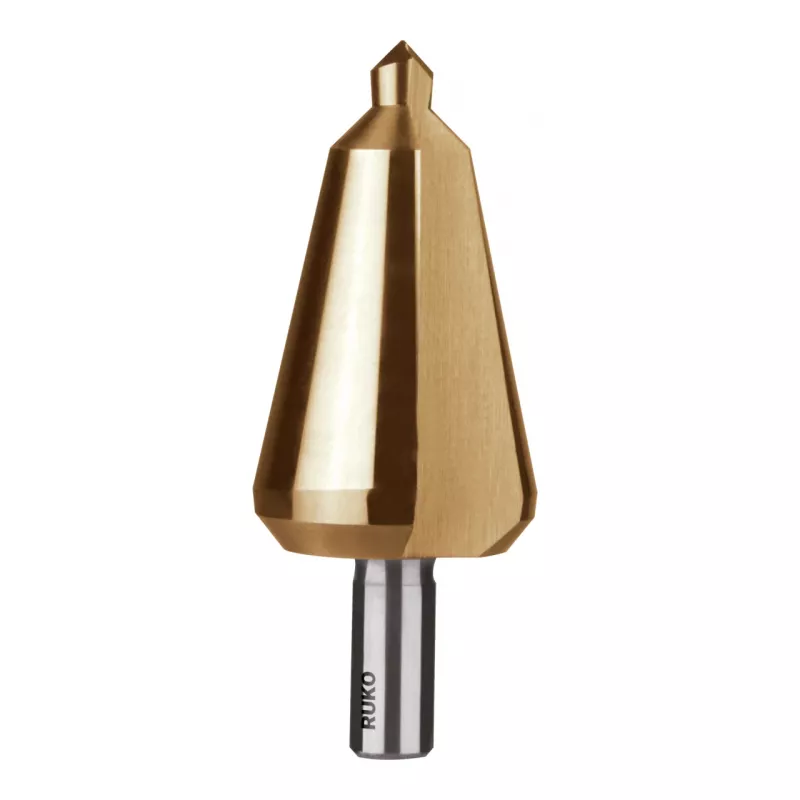

RUKO broca escalonada HSS TiN 6,0-30,5 mm

Step drill bit made of high-speed steel with titanium nitride coating, enabling drilling, deburring, and reaming in a single operation across a diameter range of 6.0 to 30.5 mm.

Advantages

The TiN coating provides a surface hardness of approximately 2300 HV and reduces friction to a coefficient of 0.4, allowing efficient drilling in steel, thin stainless steel, non-ferrous metals, and plastics. The self-centering point ensures precise hole positioning without a pilot drill.

Suitable for

• Steel
• Thin stainless steel
• Non-ferrous metals
• Plastics

Key specifications

• Material: High-speed steel (HSS)
• Coating: Titanium nitride (TiN)
• Drilling diameter range: 6.0 - 30.5 mm
• Number of steps: 9
• Shank type: Cylindrical
• Shank diameter: 10 mm
• Total length: 93 mm
• Max material thickness: 4 mm
• Point angle: 118°
• Point type: Self-centering point (DIN 1412 C)
• Cutting direction: Right-hand cutting
• Product series: RUKO Type 101

Recommendations

Use coolant for extended tool life.
