RUKO EGB-DIN352-HSSCo-60°-M10x1.50mm Macho de roscar manual

Precision hand tap with 60° thread angle and M10x1.50 mm metric thread, made from high-speed steel with cobalt for demanding materials.

Overview

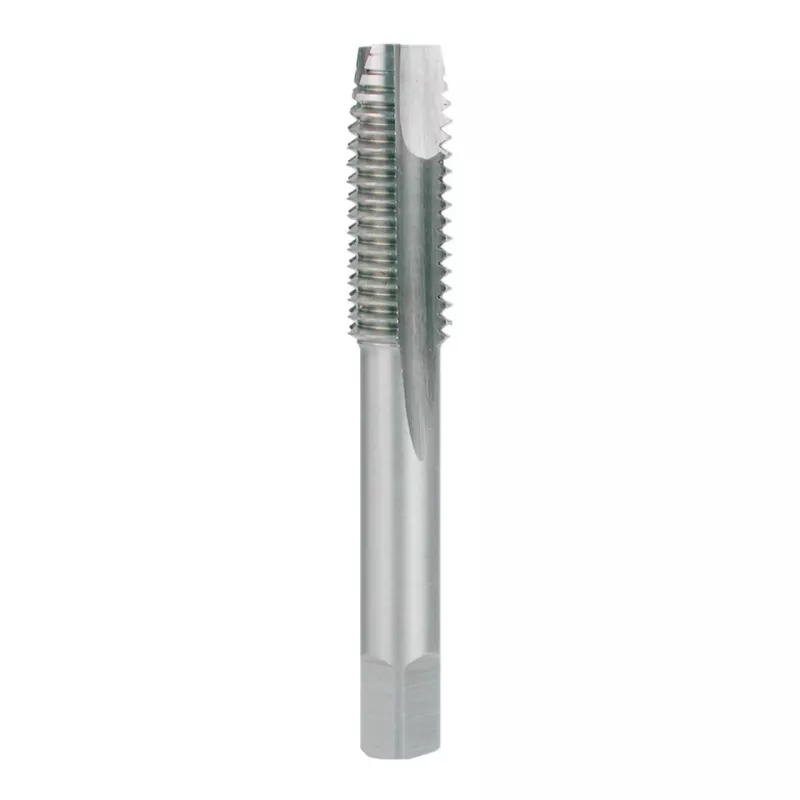

The RUKO EGB-DIN352-HSSCo-60°-M10x1.50mm is a straight-flute hand tap designed for manual threading of metric threads. It conforms to DIN 352 and features a tolerance class of ISO 2 / 6H, ensuring reliable thread quality. The tap is manufactured from HSS-Co (high-speed steel with cobalt), which provides enhanced wear resistance and heat resistance compared to standard HSS.

What stands out

• Nominal thread diameter: 10 mm
• Thread pitch: 1.50 mm
• Right-hand cutting direction
• Square drive shank for secure tool holding
• Bright surface finish

Technical details

• Product type: Hand tap
• Thread standard: Metric (M)
• Overall standard: DIN 352
• Material grade: HSS-Co
• Thread angle: 60°
• Flute type: Straight flute
• Application method: Manual threading
• Recommended workpiece material: General purpose steels, alloyed steels, stainless steels, cast iron, non-ferrous metals
• Tolerance class: ISO 2 / 6H
• Number of pieces: 1

Our verdict

A robust hand tap for precise metric threading in tough materials, backed by RUKO's engineering.
