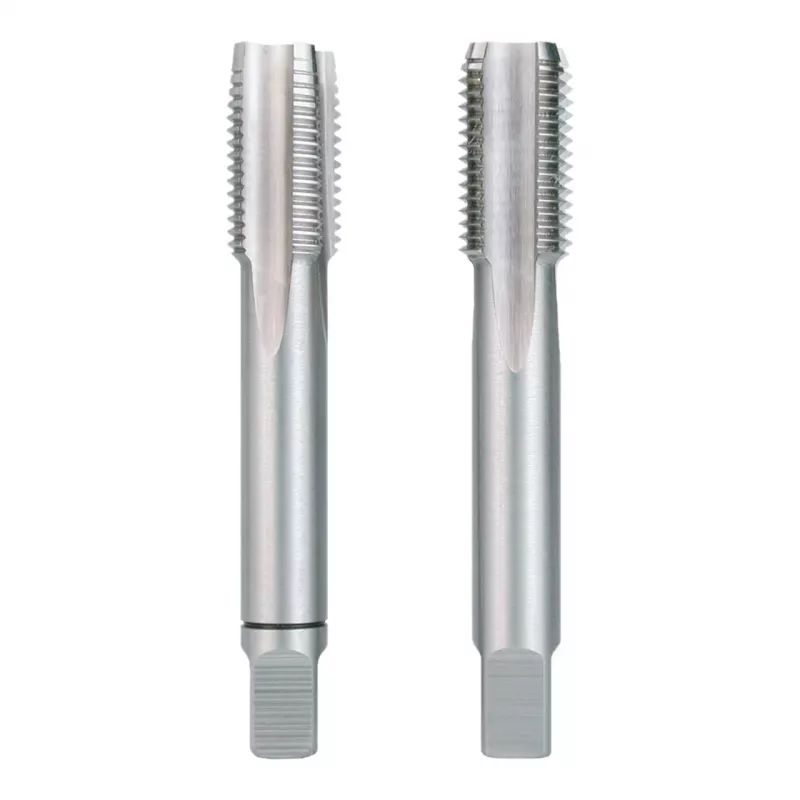

RUKO HGB Juego de 2 piezas DIN 2181 rosca métrica fina machos de roscar manuales M8 x 1,0 mm HSS-G

Cutting precise M8 fine threads by hand in steel and cast iron is a challenge when taps are dull or poorly matched to the material. This RUKO two-piece hand tap set solves that with ground HSS-G taps made to DIN 2181, giving you a reliable thread in through and blind holes.

Who is it for

Machinists, metalworkers, and maintenance technicians who need to cut metric fine threads with a pitch of 1.0 mm in unalloyed and low-alloy steels, cast iron, and non-ferrous metals up to 800 N/mm² tensile strength.

Main features

• Two-piece set: taper tap for starting and bottoming tap for finishing threads to the bottom of blind holes.
• Metric fine thread M8 x 1.0 mm to DIN 2181, tolerance class ISO 2 (6H).
• Made from HSS-G (high-speed steel, ground) for durability and clean cutting.
• Right-hand cutting direction with square drive shank for standard tap wrenches.
• Recommended core hole diameter: 7.0 mm.

Specifications

• Tool Type: Hand Tap Set
• Thread Standard: Metric Fine (MF)
• Nominal Thread Diameter: 8 mm
• Thread Pitch: 1.0 mm
• Manufacturing Standard: DIN 2181
• Material: HSS-G
• Set Components: 2-piece (Taper Tap, Bottoming Tap)
• Cutting Direction: Right-hand
• Tolerance Class: ISO 2 (6H)
• Recommended Core Hole Diameter: 7.0 mm
• Application Material: Unalloyed and low-alloyed steels, cast iron, non-ferrous metals
• Max. Tensile Strength of Material: Up to 800 N/mm²
• Shank Type: Square Drive
• Surface Finish: Bright (uncoated)
• Thread Profile: M (Metric)
• Usage: For through holes and blind holes

Tips

Use cutting oil suitable for the workpiece material and clear chips regularly to extend tap life. For blind holes, start with the taper tap and finish with the bottoming tap to achieve full thread depth.
