RUKO HGB Set Juego de 2 machos de roscar manuales DIN 2181 M24 x 1,0 mm rosca métrica fina HSS-G

Precision hand tap set for cutting metric fine threads M24 x 1.0 mm to DIN 2181, made from bright high speed steel (HSS-G) with ISO 2 (6H) tolerance.

Overview

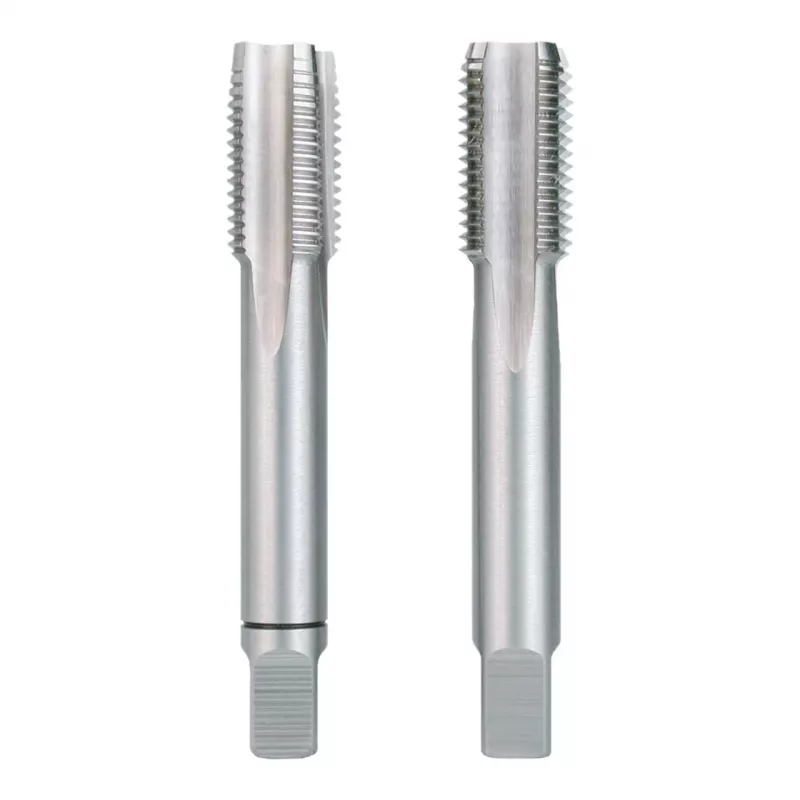

This two-piece set includes a taper tap and a plug tap, enabling sequential cutting of through holes and blind holes in steels up to 800 N/mm², cast iron, and non-ferrous metals. The taps feature a 140 mm overall length, 45 mm thread length, 18 mm shank diameter, and 14.5 mm square drive for use with standard tap wrenches.

What stands out

• Metric fine thread M24 x 1.0 mm per DIN 2181
• HSS-G bright finish for durability and chip evacuation
• ISO 2 (6H) tolerance class for standard fit
• Right-hand cutting direction
• Set includes taper and plug taps for progressive threading

Technical details

• Product type: Hand tap set
• Number of pieces: 2
• Thread type: Metric fine (MF)
• Nominal thread diameter: M24
• Thread pitch: 1.0 mm
• Standard: DIN 2181
• Material: High speed steel (HSS-G)
• Tolerance class: ISO 2 (6H)
• Cutting direction: Right-hand cut
• Set composition: Taper tap (Vorschneider) and plug tap (Fertigschneider)
• Overall length (L1): 140 mm
• Thread length (L2): 45 mm
• Shank diameter (d2): 18 mm
• Square drive (a): 14.5 mm
• Surface finish: Bright (uncoated)
• Recommended material group: Steels (up to 800 N/mm²), cast iron, non-ferrous metals
• Application type: Through holes and blind holes
• Tool holder compatibility: Tap wrenches with square drive
• Packaging: Set in plastic box/case

Our verdict

A reliable hand tap set for professionals requiring precise metric fine threads in common engineering materials.
