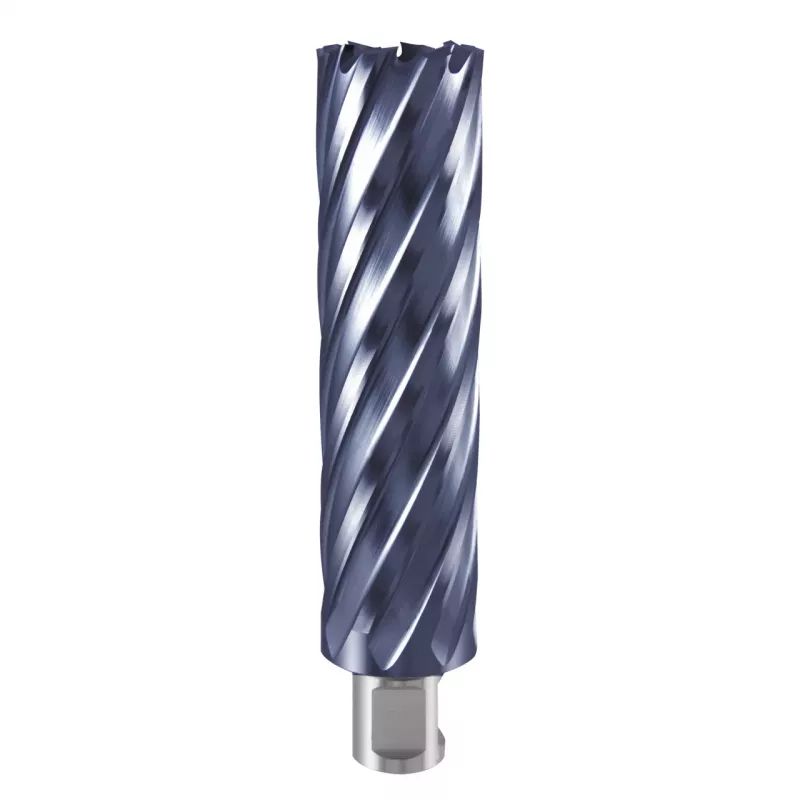

RUKO KEB-HSS-TiAlN Ø24,0mm broca de corona

Core drill for efficient hole drilling in steel, stainless steel, cast iron, and non-ferrous metals. The TiAlN coating provides high hardness, wear resistance, and heat resistance, extending tool life compared to uncoated HSS.

Advantages

Hollow core drill design removes only the periphery of the hole, reducing cutting forces and power consumption. TiAlN coating allows higher cutting speeds and dry machining in some applications. Optimized chip evacuation ensures smooth drilling and prevents clogging.

Suitable for

• Structural steel
• Sheet metal
• Profiles
• Stainless steel
• Cast iron
• Non-ferrous metals

Key specifications

• Drill diameter: 24.0 mm
• Cutting depth: 30 mm
• Shank type: Weldon shank 19.0 mm (3/4 inch)
• Material: High-speed steel (HSS)
• Coating: Titanium Aluminum Nitride (TiAlN)
• Number of cutting edges: 2

Recommendations

Use with magnetic drilling machines or pillar drills with appropriate adapter. Apply coolant for optimal performance and tool life.
