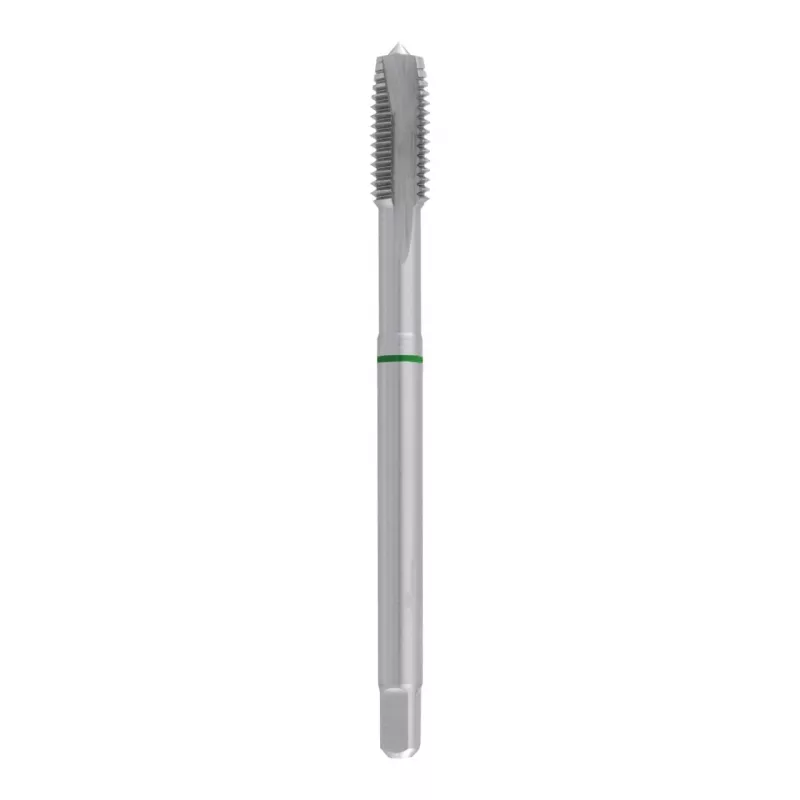

RUKO MGB-DIN374-HSSCo-60°-MF28x1.50mm macho de roscar a máquina para agujeros pasantes, HSS-Co, rosca métrica fina, M28 x 1,50 mm, DIN 374, brillante

This RUKO machine tap stands out with its reinforced shank and 60° thread angle, optimized for metric fine threads in through holes. The HSS-Co material with cobalt delivers high heat resistance, making it suitable for demanding materials like steel and stainless steel.

Highlights

• Metric fine thread M28 x 1.50 mm with 60° thread angle
• HSS-Co (cobalt alloyed high-speed steel) for high performance
• DIN 374 standard with reinforced shank for stability
• Right-hand cutting direction for through holes
• Bright surface finish

In daily use

The tap's 5 flutes ensure efficient chip evacuation, while the ISO 2 (6H) tolerance class provides reliable thread fit. With a total length of 160 mm and a thread length of 45 mm, it is well-suited for professional machining tasks.

Full specifications

• Tool Type: Machine Tap
• Material: HSS-Co
• Standard: DIN 374
• Thread Type: Metric Fine (MF)
• Nominal Thread Diameter: M28
• Thread Pitch: 1.50 mm
• Thread Angle: 60°
• Cutting Direction: Right-hand
• Application: Through Holes
• Shank Type: Reinforced Shank
• Tolerance Class: ISO 2 (6H)
• Number of Flutes: 5
• Surface Treatment: Bright
• Total Length (L1): 160 mm
• Thread Length (L2): 45 mm
• Shank Diameter (d2): 22.0 mm
• Square Drive Size (a): 18.0 mm
• Recommended Materials: Steel, Stainless Steel, Cast Iron, Non-ferrous metals

Final note

Engineered for precision and durability, this tap delivers consistent thread quality in a wide range of materials.
