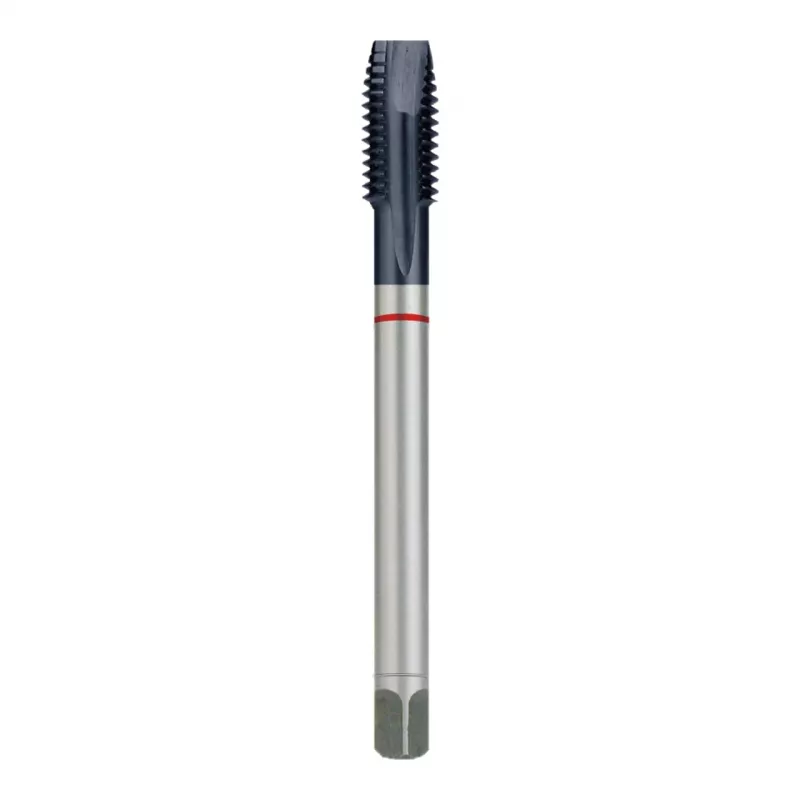

RUKO MGB-DIN376-HSSCo-TiAlN-60°-M-3x0.50 macho de roscar a máquina

Machine tap for metric M3 threads with 0.50 mm pitch, engineered for high-performance threading in tough materials. The TiAlN coating and cobalt-alloyed HSS substrate deliver exceptional wear resistance and heat stability, making it ideal for production environments.

Advantages

TiAlN coating reduces friction and extends tool life. HSS-Co substrate withstands high cutting temperatures. DIN 376 geometry ensures reliable chip evacuation and precise thread form. Suitable for both through and blind holes.

Suitable for

• Steel
• Stainless steel
• Cast iron
• Non-ferrous metals

Key specifications

• Thread size: M3
• Thread pitch: 0.50 mm
• Thread angle: 60°
• Standard: DIN 376
• Material: HSS-Co
• Coating: TiAlN
• Cutting direction: Right-hand
• Shank: Straight with square drive
• Tolerance class: ISO 2 (6H)
• Overall length: 56 mm
• Thread length: 11 mm
• Shank diameter: 3.5 mm
• Square drive: 2.7 mm
• Core hole diameter: 2.5 mm

Recommendations

Use with suitable cutting fluid for optimal tool life. Ensure correct core hole diameter of 2.5 mm before tapping.
