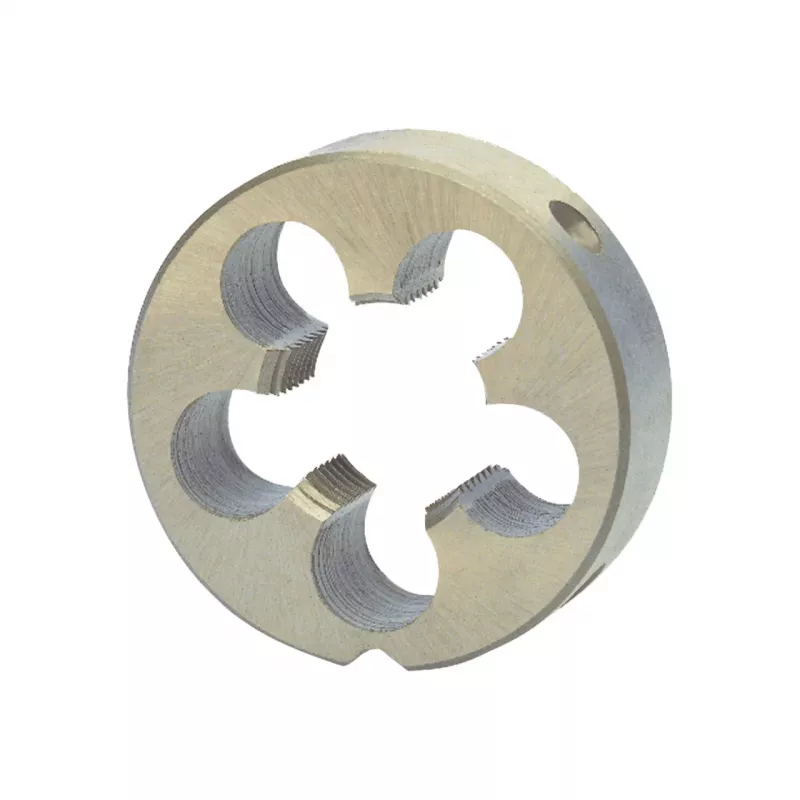

RUKO SCE-DIN223-1-1/2x6-BSW Terraja redonda para roscado BSW 1 1/2 pulgadas x 6 TPI, HSS-G, DIN 223

Precision-ground HSS-G round die for cutting BSW threads with a nominal size of 1 1/2 inches and 6 threads per inch, conforming to DIN 223. The ground threads deliver high accuracy and surface quality, suitable for manual and machine operation on unalloyed and low alloyed steels, non-ferrous metals, and plastics.

Overview

The RUKO SCE-DIN223-1-1/2x6-BSW is a circular die manufactured from high-speed steel (HSS-G) with ground threads. It is designed for right-hand cutting of British Standard Whitworth (BSW) threads. With an outer diameter of 75 mm and a thickness of 20 mm, this die is built for robust threading tasks.

What stands out

• Ground threads for high precision and superior surface finish
• HSS-G material for durability and wear resistance
• Conforms to DIN 223 standard for round dies
• Suitable for both manual and machine threading
• Bright finish (uncoated) for clean cutting

Technical details

• Thread type: BSW (British Standard Whitworth)
• Nominal thread size: 1 1/2 inch
• Threads per inch (TPI): 6
• Standard: DIN 223
• Material: HSS-G (High Speed Steel - Ground)
• Die type: Round die
• Cutting direction: Right-hand
• Outer diameter: 75 mm
• Thickness: 20 mm
• Application: General purpose threading of unalloyed and low alloyed steels, non-ferrous metals, and plastics
• Finish: Bright (uncoated)

Our verdict

A precision tool for professionals who require accurate BSW threads. The ground HSS-G construction ensures longevity and consistent performance across a range of materials.
